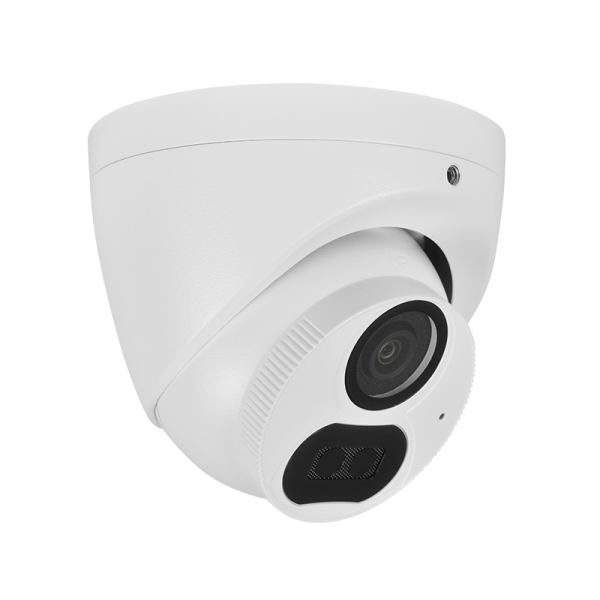

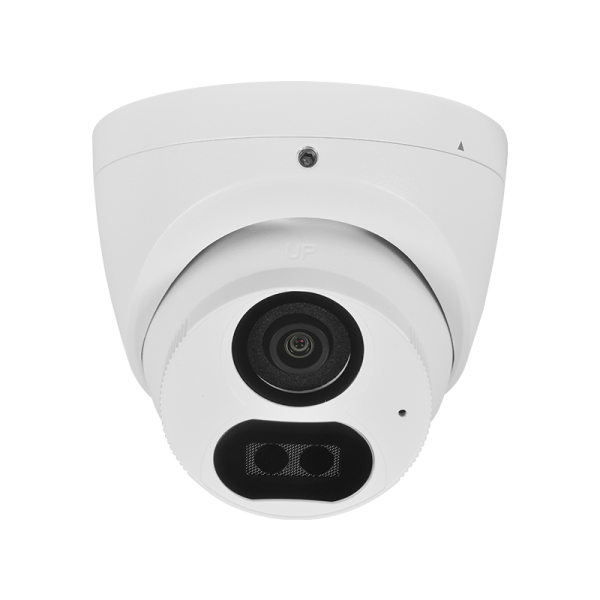

HDCD8M-28A-NCV – 8MP / 4K COAX Armor Ball Camera w/ Built-in Mic

8MP Armor Ball Camera
109.1° View
2.8mm Fixed Lens
Built-In Mic
131ft Illumination Distance

Login to view price
    SKU: HDCD8M-28A-NCV
    CATEGORIES: Cameras
    HD-over-Coax CCTV Security Camera
    8MP Over Coax

    Capture HD video footage with 8MP HD-Over-Coax 2.8MM fixed lens with a maximum aperture of F1.6

    Starlight IR with Low Light Illumination
    131FT IR

    High powered night vision with
    a minimum illumination of
    0.005 LUX and IR.

    Optiview Iconset WDR
    WDR

    Wide Dynamic Range or (WDR) gives this camera the capability to handle brighter and darker conditions.

    Outdoor Weatherproof IP Rating
    IP67

    All-metal aluminum housing for indoor and outdoor installations with 4KV lightning rating.

    Optiview_2020_Iconset_Audio Over Coax
    Audio over Coax

    This integrated design helps reduce wiring troubles translating to lower costs

    Infinity Scroll - HD Resolutions

    4K RESOLUTION

    4K resolution captures images four times the pixel density of 1080P which means that the finer details, such as faces or smaller items can be viewed with more detail than traditional 1080P surveillance.

    Wide Dynamic Range

    The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

    WDR (Wide Dynamic Range) - Infinity
    Infinity Scroll Image - Infrared V3

    Up To 131FT IR Distance

    The HDCD8M-28A-NCV is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments. In the darkest environments, on board IR illumination kicks in. The HDCD8M-28A-NCV provides clear video capture in both day and night with high definition video output.

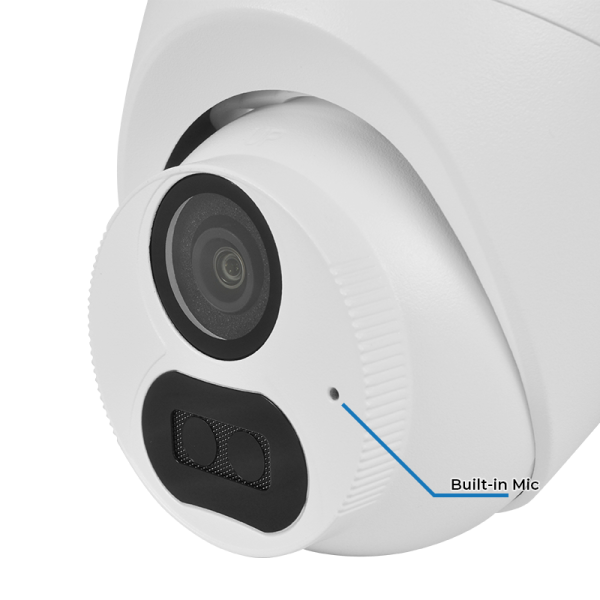

    Built-in Audio

    The HDCD8M-28A-NCV comes with a built-in mic to help give you even more protection than a traditional still video.

    Built-In Mic - Infinity Scroll
    Infinity Scroll Image - Professional Grade Equipment V1

    Commercial Grade Equipment

    Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables and connections.

    NDAA Compliance

    The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.

    Infinity Scroll - NDAA & TAA/NDAA
    Remote Video Surveillance - Infinity Scroll

    REMOTE VIDEO SURVEILLANCE

    Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

    Sensor
    Pixel 8MP
    Size 1/2.7”
    Minimum Illumination 0.005 lux (F1.6, AGC ON)
    0 lux (IR ON)
    Lens
    Lens 2.8mm
    Lens Mount M12
    Angle of View H: 109.1° V: 61.0° D: 126.7°
    Illuminator
    Illuminator Two IR Illuminators
    Illumination Distance 131FT
    Lifetime ≥60,000 hours
    Video
    Resolution 4K: 3840(H) × 2160(V)
    5MP @ 20fps: 2592(H) × 1944(V); 5MP @ 12.5fps: 2592(H) × 1944(V)
    4MP: 2560(H) × 1440(V)
    Frame Rate CVI: 4K @ 15fps (default), 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps
    TVI/AHD: 4K @ 15fps, 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps
    CVBS: PAL, NTSC
    Shutter Time PAL: 1/25s-1/50000s
    NTSC: 1/30s–1/50000s
    Exposure Mode Four Modes: Global (default), BLC, HLC, WDR
    Day / Night Three Modes: Auto (default), Day, Night
    Digital Noise Reduction 2D / 3D
    White Balance Two Modes: Auto (default), Manual
    WDR 120dB WDR
    Smart IR Support
    Flip Supports 180° Horizontal Flip, 180° Vertical Flip
    Defog N/A
    Audio
    Microphone Built-in Mic
    Camera Audio CVI: 4K @ 15fps, 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps
    Interface
    Power 5.5mm power interface

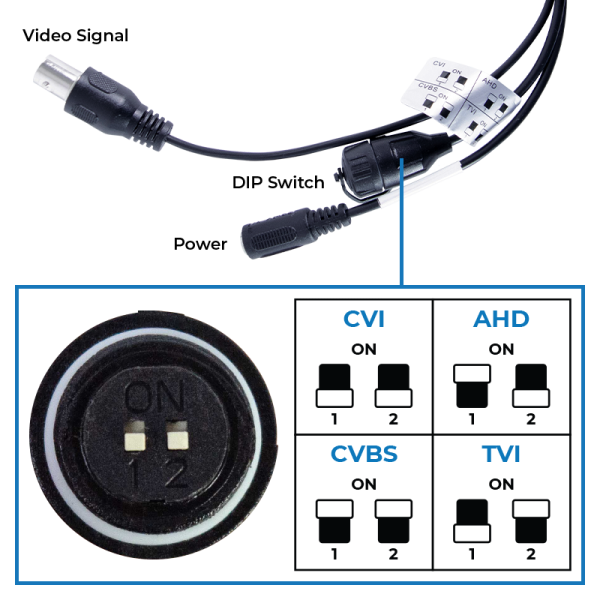

    Video Output BNC, supports TVI / AHD / CVI / CVBS
    Operating environment
    Temperature -22°F to 140°F
    Humidity ≤95% (RH, non-condensing)
    Surge Protection 4kV
    General
    Power DC 12V (±25%), with reverse polarity protection, Max 4.8W

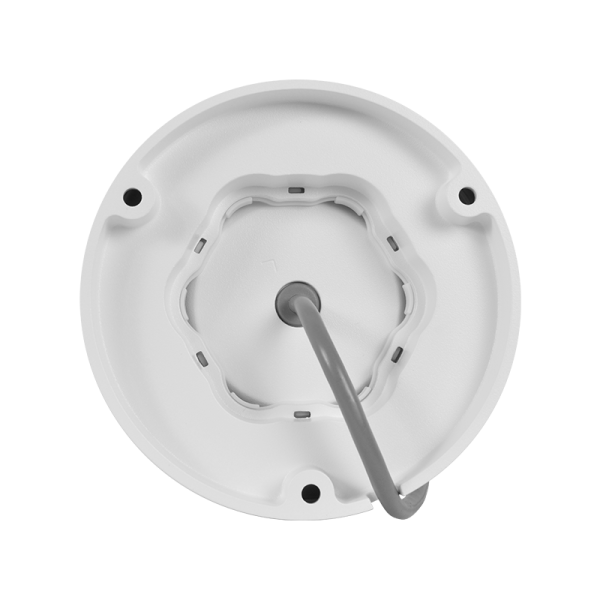

    Mount Surface Mount (default), Optional Backbox, Wall Mount Bracket
    Dimensions 4.37in * 3.85in (diameter * height)
    Material Metal
    Weight 0.92lb
    OSD Menu Language 11 Languages: English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish
    Certification
    EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
    FCC (FCC 47 CFR part15 B)
    Safety CE-LVD (EN 62368-1)
    Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
    Protection IP67 (IEC 60529)
