5MP Over Coax
Capture HD video footage with 5MP HD-Over-Coax 2.8MM fixed lens with a maximum aperture of F1.6

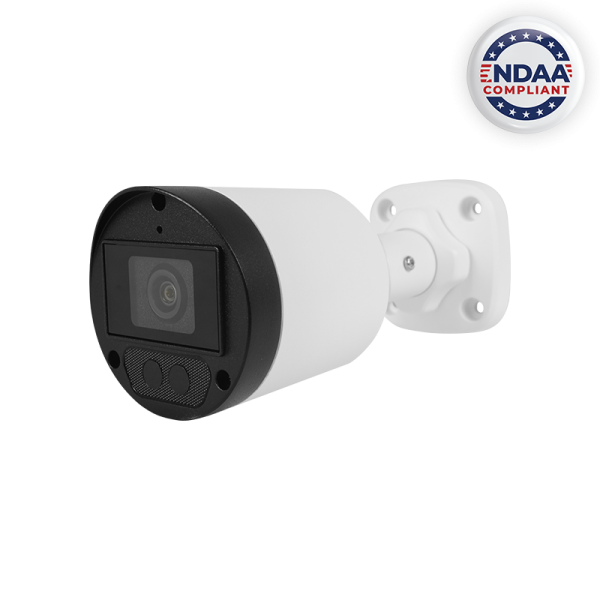

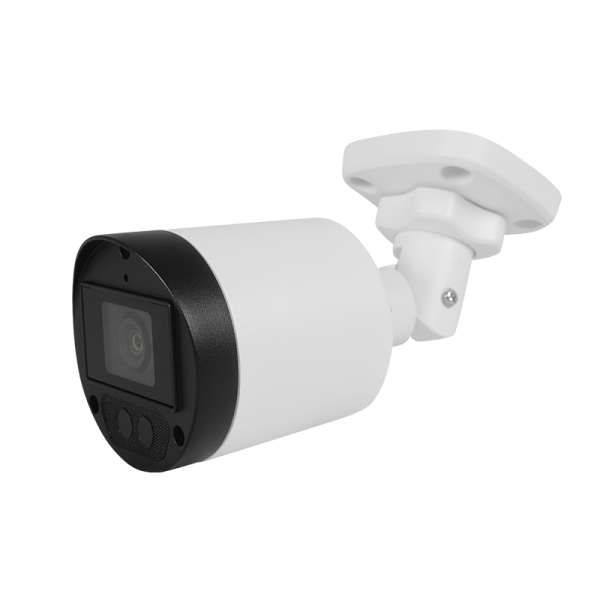

5MP Bullet Camera
109.1° View
2.8mm Fixed Lens
Built-In Mic
131ft Illumination Distance
Capture HD video footage with 5MP HD-Over-Coax 2.8MM fixed lens with a maximum aperture of F1.6
High powered night vision with
a minimum illumination of 0.005
LUX and IR.
Capture even more with an wide
fixed 109.1° view with no distortion.
All-metal aluminum housing for indoor and outdoor installations with 4KV lightning rating.

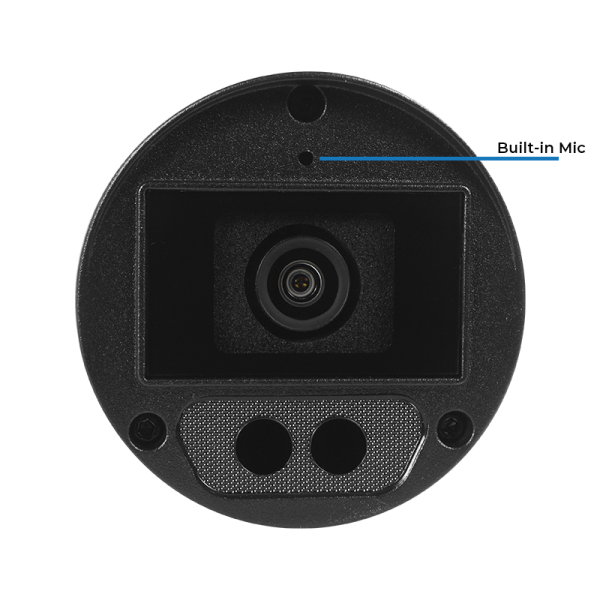

This camera comes with a Built-In Mic getting you even more data and protection from your device.

The HDCB5M-28A-NCV comes with a built-in mic to help give you even more protection than a traditional still video.
The HDCB5M-28A-NCV is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments. In the darkest environments, on board IR illumination kicks in. The HDCB5M-28A-NCV provides clear video capture in both day and night with high definition video output.


The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading digital wide dynamic range (DWDR) technology. For applications with both bright and low lighting conditions that change quickly, Digital WDR optimizes both the bright and dark areas of a scene at the same time to provide usable video.
The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.

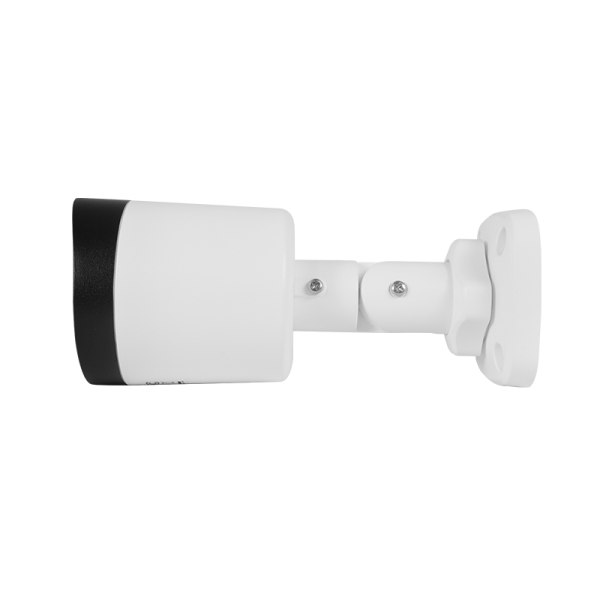

Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables and connections.
Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

Camera |
|
| Pixel | 5MP |
| Size | 1/2.7” |
| Minimum Illumination | 0.005 lux (F1.6, AGC ON) |
| 0 lux (IR ON) | |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Angle of View | H: 109.1° V: 60.9° D: 126.7° |
| Illuminator | Two IR illuminators |
| Illumination Distance | 131ft |
| Lifetime | ≥60,000 hours |
Video |
|
| Resolution | 5MP @ 25fps: 2880(H) × 1620(V); 5MP @ 20fps: 2592(H) × 1944(V); 5MP @ 12.5fps: 2592(H) × 1944(V) |
| 4MP: 2560(H) × 1440(V) | |
| 1080P: 1920(H) × 1080(V) | |
| Frame Rate | TVI: 5MP @ 20fps (default), 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps |
| AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps | |
| CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps | |
| CVBS: PAL, NTSC | |
| Shutter Time | PAL: 1/25s-1/50000s |
| NTSC: 1/30s–1/50000s | |
Interface |
|

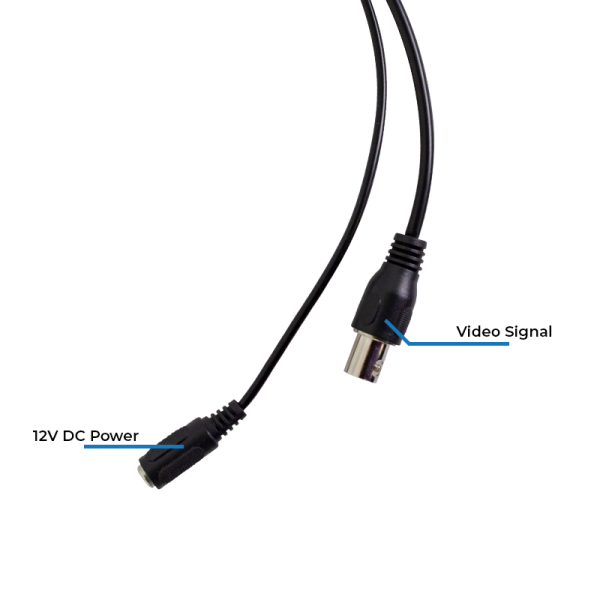

| Power | 5.5mm power interface |
| Video Output | BNC, supports TVI / AHD / CVI / CVBS |
Image |
|
| Exposure Mode | Four Modes: Global (default), BLC, HLC, DWDR |
| Day / Night | Three Modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D |
| White Balance | Two Modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal and vertical flip |
Audio |
|
| Microphone | Built-in Mic |
| Camera Audio | TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps |
Operating Environment |
|
| Temperature | -22°F to 140°F |
| Humidity | ≤95% (RH, non-condensing) |
| Surge Protection | 4kV |
| Ingress Protection | IP67 |
General |
|
| Power | DC 12V (±25%), with reverse polarity protection, Max 3.4W |

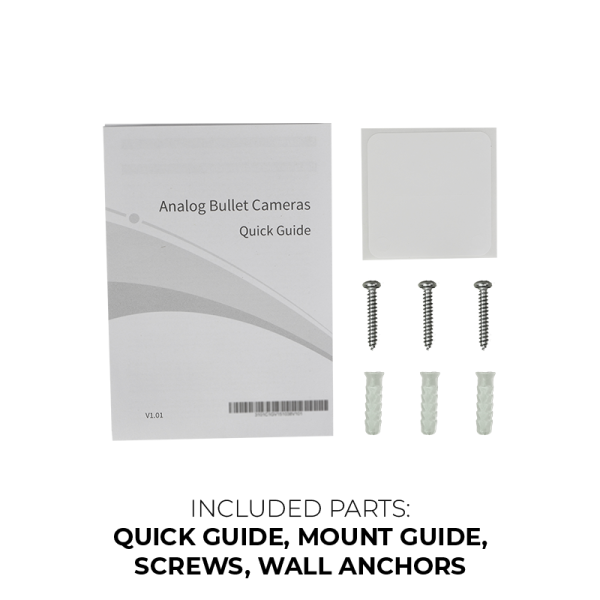

| Mount | 3D bracket supplied, surface mount (default), optional backbox |
| Dimensions | Φ 6.06” x 2.6” x 2.6” ( L x W x H ) |
| Material | Metal + Plastic |
| Weight | 0.53lb |
| Certification | CE, FCC, UL |
| Max Angle of View | |
|---|---|
| Audio | |
| Compliance | |
| Max IR Distance | |
| Lens Type | |
| Minimum Color Illumination | |
| Resolution | |
| Product Series | |
| Camera Types / Style | |
| Technology | |
| Wide Dynamic Range | |
| Weatherproof Rating |
