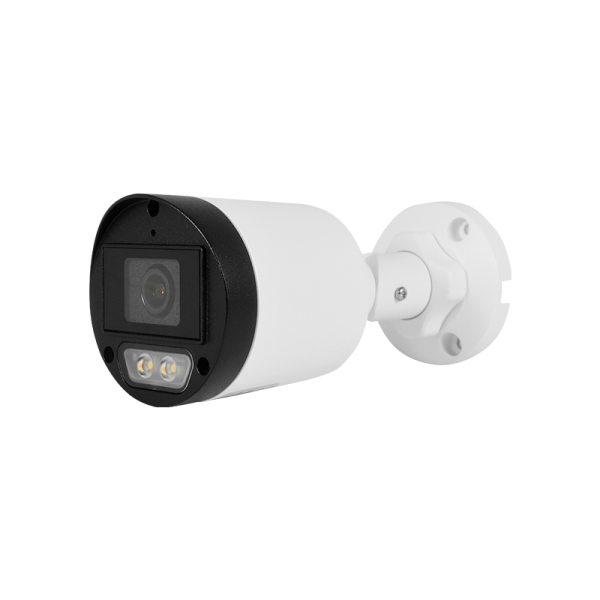

HDCB5M-28A-LED-NCV – 5MP Full Color Coax Bullet Camera w/ Mic

5MP Bullet Camera
Full Color
2.8mm Fixed
Built-In Mic
IP67 Weatherproof

Login to view price
    SKU: HDCB5M-28A-LED-NCV
    CATEGORIES: Cameras
    HD-over-Coax CCTV Security Camera
    5MP Over Coax

    Capture HD video footage with 5MP HD-Over-Coax 2.8MM fixed lens with a maximum aperture of F1.4

    Optiview_2020_Iconset_Audio Over Coax
    Audio over Coax

    This integrated design helps reduce wiring troubles translating to lower costs.

    Starlight Technology
    Full Color

    Monitor your areas in full-color 24/7, illuminating even in total darkness up to a distance of 131ft.

    Outdoor Weatherproof IP Rating
    IP67

    All-metal aluminum housing for indoor and outdoor installations with 4KV lightning rating.

    Optiview Iconset WDR
    DWDR

    Digital Wide Dynamic Range or (DWDR) gives this camera the capability to handle brighter and darker conditions.

    WDR (Wide Dynamic Range) - Infinity

    Wide Dynamic Range

    The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading digital wide dynamic range (DWDR) technology. For applications with both bright and low lighting conditions that change quickly, Digital WDR optimizes both the bright and dark areas of a scene at the same time to provide usable video.

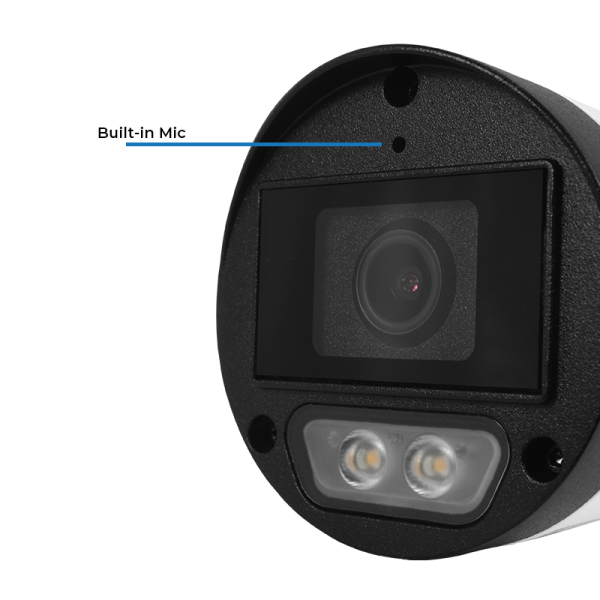

    Built-in Audio

    The HDCB5M-28A-LED-NCV comes with a built-in mic to help give you even more protection than a traditional still video.

    Built-In Mic - Infinity Scroll
    Infinity Scroll Image - Professional Grade Equipment V3

    Commercial Grade Equipment

    Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables and connections.

    NDAA Compliance

    The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.

    Infinity Scroll Image - NDAA_TAA V2
    Remote Video Surveillance - Infinity Scroll

    REMOTE VIDEO SURVEILLANCE

    Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

    Camera
    Image Sensor 1/2.7” 5MP
    Minimum Illumination 0.005 lux (F1.4, AGC ON)
    0 lux (white light onv)
    Lens
    Lens 2.8mm
    Lens Mount M12
    Angle of View H: 111.5° V: 58.9 ° D: 134.8°
    Illuminator
    Illuminator Two white-light illuminators
    Illumination Distance 131ft
    Lifetime ≥ 60,000 hours
    Video
    Resolution 5MP @ 25fps: 2880 (H) × 1620 (V); 5MP @ 20fps: 2592 (H) × 1944 (V); 5MP @ 12.5fps: 2592 (H) × 1944 (V)
    4MP: 2560 (H) × 1440 (V)
    1080P: 1920 (H) × 1080 (V)
    Frame Rate TVI: 5MP @ 20fps (default), 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
    AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
    CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
    CVBS: PAL/NTSC
    Shutter Time PAL: 1/25s-1/50000s
    NTSC: 1/30s–1/50000s
    Exposure Mode Four Modes: Global (default), BLC, HLC, DWDR
    Day / Night 24/7 color images
    Digital Noise Reduction 2D
    White Balance Two Modes: Auto (default), Manual
    WDR DWDR
    Flip Supports 180° Horizontal Flip, 180° Vertical Flip
    Audio
    Microphone Built-in Mic
    Camera Audio TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
    CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps
    Interface

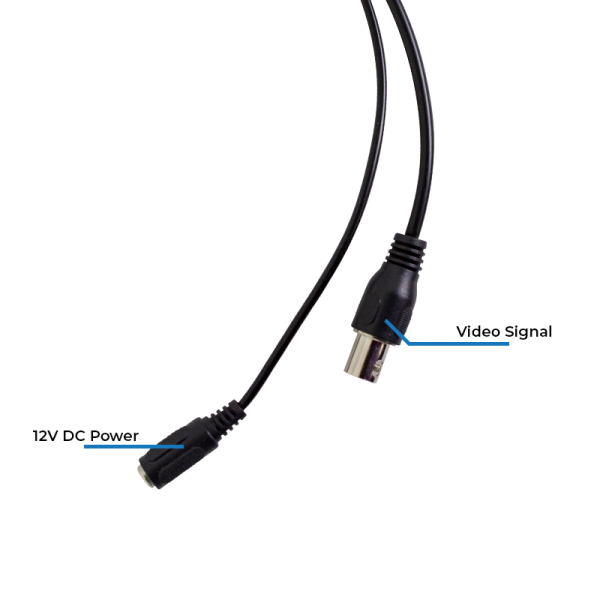

    Power 5.5mm Power Interface
    Video Output BNC, supports TVI / AHD / CVI / CVBS
    Operating environment
    Temperature -22°F to 140°F
    Humidity ≤95% (RH, non-condensing)
    Surge Protection 4kV
    Ingress Protection IP67
    General
    Power DC12V (±25%), with reverse polarity protection. Max 3.28W

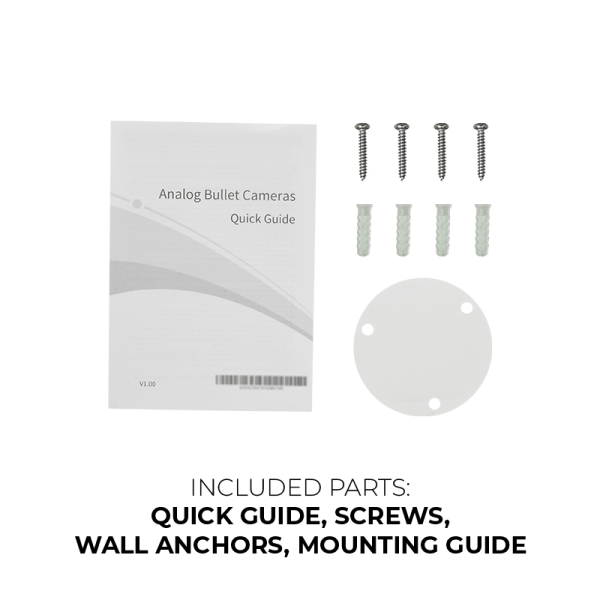

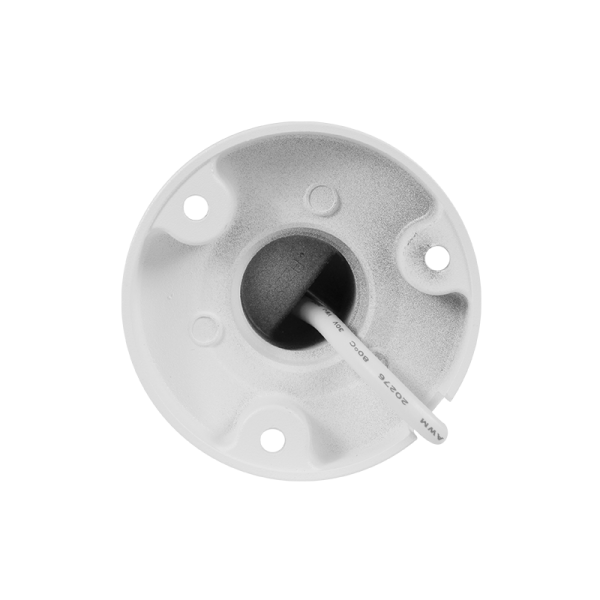

    Mount 3D bracket supplied, surface mount (default), optional junction box
    Dimensions 6.2” x 2.6” x “2.6”
    Material Metal
    Weight 0.62lb
    Certification CB, CE, FCC, UL
