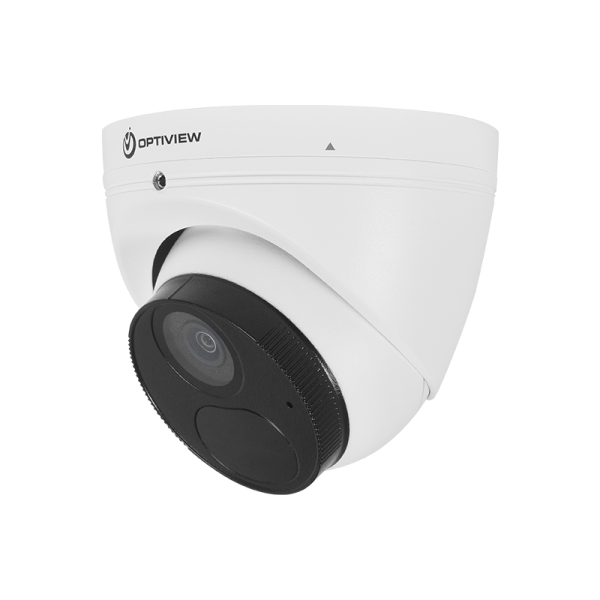

IP8MIAB-28-SD-NCV – 8MP IP Armor Ball Camera w/ Built-in Mic & Edge Recording

8MP 4K IP
Human Body Detection
Memory Card Slot
Built-in Mic
IP67

Login to view price
    SKU: IP8MIAB-28-SD-NCV
    CATEGORIES: Cameras
    Optiview 2020 Iconset - IP Network Surveillance
    8MP IP

    Capture 4K video footage with 8MP IP 2.8MM fixed focus lens with a maximum aperture of F1.6

    Optiview Iconset WDR
    Wide Dynamic Range

    Wide Dynamic Range or (WDR) gives this camera the capability to handle brighter and darker conditions.

    ANR Recording
    ANR

    Automatic Network Replenishment (ANR) Technology helps provide backup NVR redundancy

    Outdoor Weatherproof IP Rating
    IP67

    All-metal aluminum housing for indoor and outdoor installations with 4KV lightning rating.

    Built-In Mic
    Built-In Mic

    This camera comes with a Built-In Mic getting you even more data and protection from your device.

    Infinity Scroll - HD Resolutions

    4K RESOLUTION

    4K resolution captures images four times the pixel density of 1080P which means that the finer details, such as faces or smaller items can be viewed with more detail than traditional 1080P surveillance.

    Wide Dynamic Range

    The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

    Infinity Scroll Image - Infrared V2

    Up To 98FT IR Distance

    The IP8MIAB-28-SD-NCV is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments. In the darkest environments, on board IR illumination kicks in. The IP8MIAB-28-SD-NCV provides clear video capture in both day and night with high definition video output.

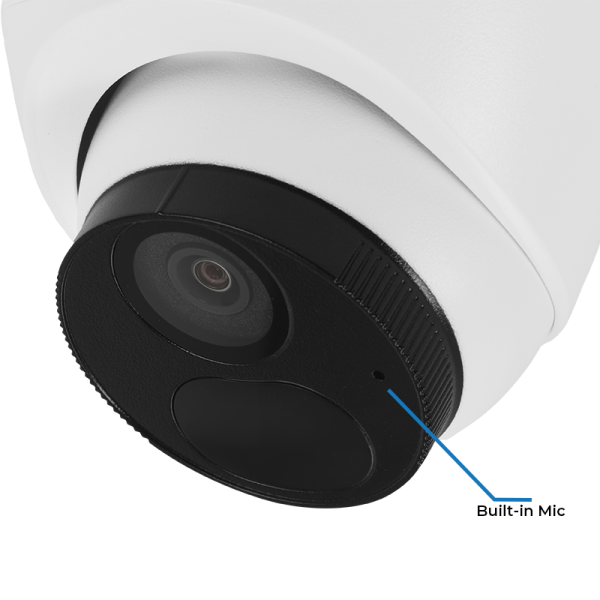

    Built-in Mic

    The IP8MIAB-28-SD-NCV comes with a built-in mic to help give you even more protection than a traditional still video.

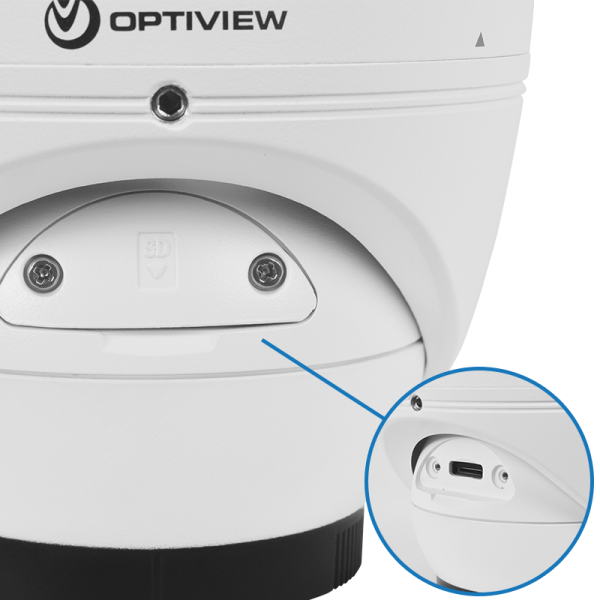

    Edge Recording

    Optional edge recording with an optional memory slot expandable up to 256GB.

    Built-In Mic - Infinity Scroll
    Infinity Scroll Image - Automatic Network Replenishment (ANR) Technology V1

    Automatic Network Replenishment (ANR) Technology

    The IP8MIAB-28-SD-NCV when connected to an ANR compatible Network Video Recorder will automatically store video data on the internal memory card when the network is disconnected. After recovery to the network, the NVR automatically retrieves the video data stored on the camera.

    NDAA Compliance

    The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.

    Infinity Scroll Image - NDAA_TAA V1
    Infinity Scroll Image - Professional Grade Equipment V2

    Commercial Grade Equipment

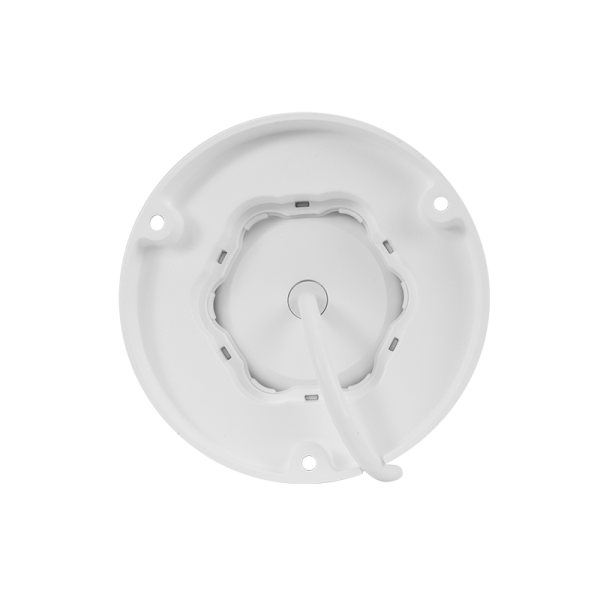

    Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables and connections.

    REMOTE VIDEO SURVEILLANCE

    Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

    Remote Video Surveillance - Infinity Scroll
    Camera
    Sensor 1/2.7”, 8.0 megapixel, progressive scan, CMOS
    Min. Illumination Color: 0.01 lux (F1.6, AGC ON)
    0Lux with IR on
    Day / Night IR-cut filter with auto switch (ICR)
    Shutter Auto / Manual, 1 ~ 1/100000s
    Adjustment angle Pan: 0° ~ 360°
    Tilt: 0° ~ 75°
    Rotate: 0° ~ 360°
    S/N >56dB
    WDR 120dB
    Lens
    Lens Type 1/2.7”, 8.0 megapixel, progressive scan, CMOS
    Field of View (H, V, D) 112.9°, 59.1°, 121.2°
    DORI
    DORI Distance Detect: 206.693ft
    Observe: 82.677ft
    Recognize: 41.338ft
    Identify: 20.669ft
    Illuminator
    IR Range Up to 98ft IR range
    Wavelength 850nm
    IR On / Off Control Auto / Manual
    Video
    Video Compression H.265, H.264, MJPEG
    H.264 Code Profile Baseline Profile, Main Profile, High Profile
    Frame Rate Main Stream: 8MP ( 3840 * 2160 ) @ 15fps; 5MP ( 2880 * 1620 ) @ 25/20fps; 4MP ( 2560 * 1440 ) @ 25/20fps; 3MP ( 2304 * 1296 ) @ 30/25fps; 2MP ( 1920 * 1080 ) @ 30/25fps
    Sub Stream: 720P ( 1280 * 720 ) @ 30/25fps; D1 ( 720 * 576 ), Max 30fps; 640 * 360,Max 30fps;
    Video Bit Rate 128 Kbps~16384 kbps
    Smart Encoding Supported
    OSD Up to 4 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Motion Detection Up to 4 areas
    White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
    Image Setting Image Rotation, Brightness, Saturation, Contrast, Sharpness, Gain Adjustable By Web Browser
    Digital Noise Reduction 2D / 3D DNR
    Smart IR Support
    Flip Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
    Dewarping N/A
    HLC Supported
    BLC Supported
    Defog Digital Defog
    Events
    Behavior Detection Tripwire, Intrusion(Based On Human Body Detection)
    Motion Detection, Tampering Alarm, Audio Detection
    General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Audio
    Audio Compression G.711A,G.711U
    Suppression Supported
    Sampling Rate 8KHZ
    Storage
    Edge Storage Memory card slot, up to 256GB
    Network Storage NAS(NFS)
    Network
    User / Host Up to 32 users. 2 user levels: administrator and common user
    Protocols IPV4, IPV6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL, TLS, SSH
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
    Security Password Protection, Strong Password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
    Interface
    Audio I/O N/A
    Alarm I/O N/A
    RS485 N/A
    Built-in Mic Support
    Built-in Speaker N/A
    WIFI N/A
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Video Output N/A
    Certification
    EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
    FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
    Safety CE LVD (EN 62368-1:2014+A11:2017)
    CB (IEC 62368-1:2014)
    UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
    Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
    General

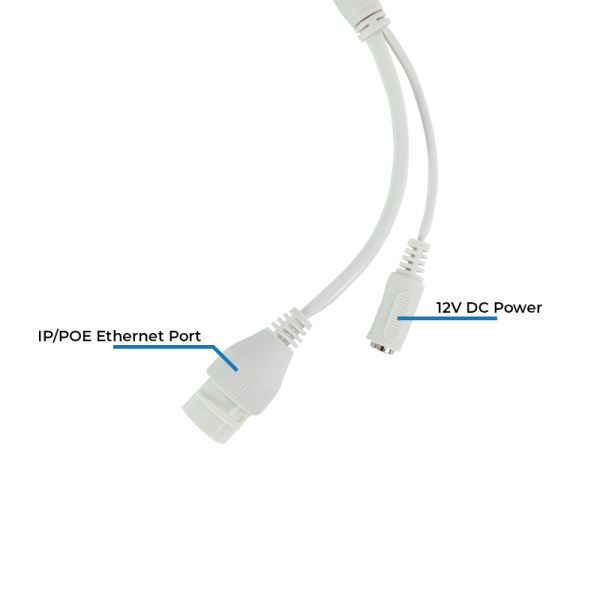

    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power Consumption: Max 4.0W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions (Ø x H) Ø4.6” x 3.8”
    Weight 0.63lb
    Material Metal + Plastic
    Working Environment -22°F ~ 140°F, Humidity: ≤95% RH (non-condensing)
    Storage Environment -22°F ~ 140°F, Humidity: ≤95% RH (non-condensing)
    Surge Protection 4KV
