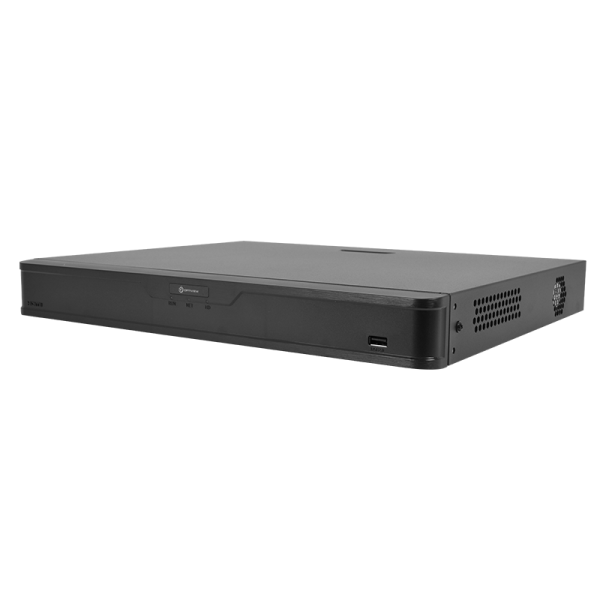

HDVR324K-2I-NCV – 32 Channel 5-Way 4K / 8 Megapixel 1U DVR

32 Channel 5-Way DVR
4K @ 15fps
Smart Intrusion Prevention
Up to 2 HDDs Storage
NDAA Compliant

SKU: HDVR324K-2I-NCV
CATEGORIES: NDAA Compliance
HD-over-Coax CCTV Security Camera
8MP Over Coax

Record up to 32 channels at 4K video resolutions and H.265 / AI Coding for video compression.

Optiview_2020_Iconset_Perimeter Protection - Intrusion _PNGICON
Smart Intrusion Prevention

Accurately reduce false alarms with custom zones with human and vehicle detection.

Compression
H.265 / H.264

Reduce bit rate and storage requirements of raw footage with H.265 compression

Optiview Iconset 144Mbps
Bandwidth

Max 144Mbps, Incoming Bandwidth

Optiview_2020_Iconset_Audio Over Coax
Audio over Coax

This integrated design helps reduce wiring troubles translating to lower costs

Infinity Scroll - HD Resolutions

4K RESOLUTION

4K resolution captures images four times the pixel density of 1080P which means that the finer details, such as faces or smaller items can be viewed with more detail than traditional 1080P surveillance.

SMART INTRUSION PREVENTION

Utilizing machine learning and data intelligence, Smart Intrusion Prevention or SIP helps reduce false-alarm rates by allowing you to set up Cross Line Detection, Intrusion Detection, as well as Enter / Leave Area, all which can do any combination of human/vehicle/non-motor vehicle recognition. Smart Intrusion Prevention’s detection rate of >95% helps you improve your perimeter protection, reduce false alarms while keeping you informed about the events that matter the most to you. Ultra Motion Detection can be configured to your full screen or area detection.

Perimeter Protection - Infinity
Infinity Scroll Image - Smart Motion Detect (ID+) V1

ULTRA MOTION DETECTION

Utilizing machine learning and data intelligence, Ultra Motion Detection or UMD helps you filter out object based on motion detection, detecting motion of specified object types in the image, and trigger an alarm when such motion is detected. UMD supports two different object types: Person and Vehicle. UMD provides a detection rate of >90% up to 49ft and is more efficient than traditional motion detection, further reducing false-alarms.

NDAA Compliance

The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.

Infinity Scroll Image - NDAA_TAA V2
Remote Video Surveillance - Infinity Scroll

REMOTE VIDEO SURVEILLANCE

Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

Video/Audio Input
IP Video Input 4-ch
Analog Video Input 32-ch, BNC
Max IP Video Input 36-ch
Supported Analog Camera Types
Support AHD input:
8MP @ 15fps
5MP @ 20fps
4MP @ 30fps
1080P @ 30fps
720P @ 30fps
Support TVI input:
8MP @ 15fps
5MP @ 20fps
4MP @ 30fps
1080P @ 30fps
720P @ 30fps
Support CVI input:
8MP @ 15fps
5MP @ 25fps
4MP @ 30fps
1080P @ 30fps
720P @ 30fps
Support CVBS input
BNC Audio Input 32-ch, channel audio
RCA Audio Input 1-ch
Video/Audio Output
HDMI Output 4K(3840 x 2160) / 30Hz, 1920 x 1080 / 60Hz, 1920 x 1080 / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
VGA Output 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
BNC Video Output 1-ch
RCA Audio Output 1-ch
Live View Display HDMI / VGA: 1 / 4 / 6 / 8 / 9 / 25 / 36
Coaxial Cable
Audio over Coaxial Cable 32-ch, One-way Audio(NCV Series CVI)
Two-way Audio
Two-Way Audio 1-ch, RCA (Using the audio input and output)
Analog Snapshot
FTP / Schedule / Event Snapshot 32-ch snapshot, up to 704 * 576 resolution
Encoding/Decoding
Recording Resolution 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1
Recording Frame Rate 8MP Lite @ 8fps Sub stream: D1 @ 8fps
5MP Lite @ 12fps Sub stream: D1 @ 12fps
4MP Lite @ 15fps Sub stream: D1 @ 15fps
1080P @ 15fps Sub stream: D1 @ 15fps
720P @ 30fps Sub stream: D1 @ 30fps
Audio Sample Rate 8KHz, 16 bit per channel
Audio Bit Rate 64Kbps per channel
Decoding Capability Analog: 16 x 8MP Lite @ 8, 16 x 5MP Lite @ 12, 16 x 4MP Lite @ 15, 16 x 1080P @ 15, 16 x 7 20 @ 30
IP: 16 x 720P @ 30, 8 x 1080P @ 30, 4 x 4MP @ 30, 2 x 8 MP @ 30
Num of Concurrent Playback in Local 16-ch
Network
Incoming Bandwidth 80 Mbps (Up to 144Mbps after all analog channel conversion)
Outgoing Bandwidth 160 Mbps
Remote Users 128
Protocols TCP/IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP; NTP
Browser(Plugin) Windows: IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Smart
Analog Smart by DVR Smart Intrusion Prevention, Ultra Motion Detection, Human Detection, Vehicle Detection, Non-Motor Vehicle Detection, Intrusion, Cross Line, Enter Area, Leave Area
IP Smart by IPC Smart Intrusion Prevention, Face Detection, Human Detection, Vehicle Detection, Non-Motor Vehicle Detection, Intrusion, Cross Line, Enter Area, Leave Area, Defocus Detection, Scene Change, Object Left Behind, Object Removed, Auto Tracking
VCA Search Face Search, Behavior Search, People Counting
Smart Functions by DVR 16-ch Ultra Motion Detection, 8-ch Smart Intrusion Prevention
Alarm
General Alarm Motion
Alert Alarm IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording / Snapshot Abnormal
Hard Disk
SATA 2 SATA interfaces
Capacity Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)

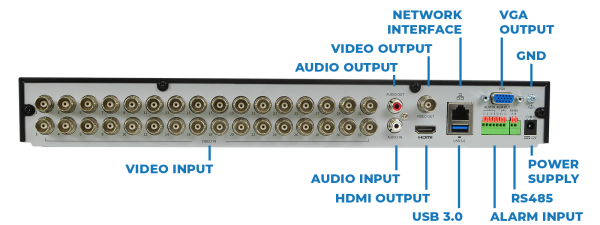

External Interface
Network Interface 1 RJ45 10M / 100M / 1000M self-adaptive Ethernet Interface
USB Rear Panel: 1 x USB3.0; Front Panel: 1 x USB2.0
RS485 1
Alarm In 4-ch
Alarm Out 1-ch
Power Supply DC 12V/5A
Working Environment
Working Temperature
+14°F ~ +131°F
Working Humidity ≤ 90% RH(non-condensing)
Power Consumption (w/o HDD) ≤ 38W
Dimensions
Weight (w/o HDD) ≤ 5.72lb
Dimensions 15.0" × 12.8"×2.1"
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
