People Counting
Detect and track targets using Optiview’s advanced image technology by with up to 4 customizable areas.
Up to 4K Recording
32 Channel NVR
Smart Intrusion Prevention
Up to 80TB of Storage
NDAA Compliant
Detect and track targets using Optiview’s advanced image technology by with up to 4 customizable areas.
Ultra 265 helps you save up to 95% storage space and up to 75% storage cost
Accurately reduce false alarms with custom zones with human and vehicle detection.
Human and Vehicle detection accuracy enhanced by machine learning reducing false alarms and enhancing security.
Up to 16MP resolution for preview and playback and a maximum bandwidth of 320Mbps.

Utilizing machine learning and data intelligence, Smart Intrusion Prevention or SIP helps reduce false-alarm rates by allowing you to set up Cross Line Detection, Intrusion Detection, as well as Enter / Leave Area, all which can do any combination of human/vehicle/non-motor vehicle recognition. Smart Intrusion Prevention’s detection rate of >95% helps you improve your perimeter protection, reduce false alarms while keeping you informed about the events that matter the most to you.
Utilizing machine learning and data intelligence, Ultra Motion Detection or UMD helps you filter out object based on motion detection, detecting motion of specified object types in the image, and trigger an alarm when such motion is detected. UMD supports two different object types: Person and Vehicle. UMD provides a detection rate of >90% up to 49ft and is more efficient than traditional motion detection, further reducing false-alarms.


Utilizing H.265 advanced video encoding, provides high-quality video while reducing the storage space needed to retain your video events. Users can add their own memory card to take advantage of its edge recording capabilities.
With deep learning algorithm, the NVR32-8B-NCV can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.


Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.
The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.


Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.
Video / Audio Input |
|
| IP Video Input | 32 Channel |
| Audio Input | 1-ch, RCA |
Network |
|
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Protocols | TCP / IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE ( IE10 / 11 ) for Windows |
| Firefox ( version 52.0 and above ) for Windows | |
| Chrome ( version 45 and above ) for Windows | |
| Edge ( version 79 and above ) for Windows | |
Video / Audio Output |
|
| HDMI / VGA Output | HDMI: 4K ( 3840 x 2160 ) @ 30, 1920 x 1080p @ 60, 1920 x 1080p @ 50, 1600 x 1200 @ 60, 1280 x 1024 @ 60, 1280 x 720 @ 60, 1024 x 768 @ 60 |
| VGA: 1920 x 1080p @ 60, 1920 x 1080p @ 50, 1280 x 1024 @ 60, 1600 x 1200 @ 60, 1280 x 720 @ 60, 1024 x 768 @ 60 | |
| Recording | |
| Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output | 1-ch, RCA |
| Two-Way Audio | 1-ch, RCA ( Using the audio input ad output ) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display | VGA: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 |
| HDMI: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 | |
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 |
Snapshot |
|
| FTP / Schedule / Event Snapshot | 4-ch Snapshot, Up to D1 Resolution |
Decoding |
|
| Decoding Format | Ultra 265 / H.265 / H.264 |
| Live View / Playback | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Capability | Ultra 265 / H.265: 2 x 12MP @ 30, 4 x 4K @ 30, 6 x 5MP @ 30, 8 x 4MP @ 30, 10 x 3MP @ 30, 16 x 1080p @ 30, 32 x 960p @ 25, 36 x 720p @ 30, 64 x D1 |
| H.264: 2 x 12MP @ 30, 2 x 4K @ 30, 4 x 5MP @ 30, 6 x 4MP @ 30, 8 x 3MP @ 30, 14 x 1080p @ 30, 28 x 960p @ 25, 30 x 720p @ 30, 64 x D1 | |
Hard Disk |
|
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16 TB for Each Disk |
| Disk Group | Support |
Smart |
|
| VCA Detection by Camera | Smart Intrusion Prevention, Vehicle Detection, Ultra Motion Detection, Human Detection, Non-Motor Vehicle Detection, Intrusion, Cross Line, Enter Area, Leave Area, Defocus Detection, Scene Change, Object Left Behind, Object Removed, Auto Tracking, Dual Lens, Dewarp, License Plate Recognition |
| VCA Search | Behavior Search, People Counting Report, Vehicle Search |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention, Ultra Motion Detection, Vehicle Detection by Camera | 8-ch |
General Alarm |
|
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal |

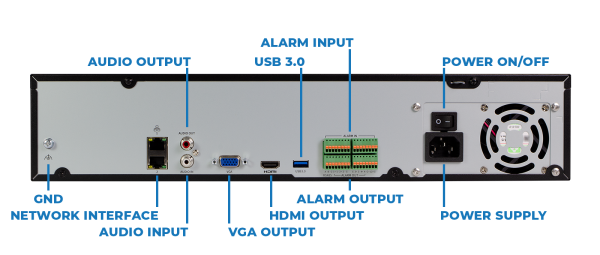

External Interface |
|
| Network Interface | 2 RJ-45 10M / 100M / 1000M self-adaptive Ethernet Interface |
| USB Interface | Front: 2 x USB 2.0, Rear Panel: 1 x USB 3.0 |
| RS232 | N / A |
| RS485 | 1 |
| Alarm In | 16-Ch |
| Alarm Out | 4-Ch |
General |
|
| Power Supply | 100 ~ 240V AC |
| Power Consumption: ≤ 32W ( without HDD ) | |
| Working | |
| Environment | 14°F ~ 131°F, Humidity ≤ 90% RH ( non-condensing ) |
| Dimensions | 17.4” ( W ) x 16.8” ( D ) x 3.5” ( H ) |
| Weight ( Without HDD ) | 8.80 lbs |
Certifications |
|
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part 15 Subpart B |
| Hard Drive Size | 12 TB (1 x 4 TB / 1 x 8 TB), 48 TB (6 x 8 TB), 50 TB (5 x 10TB), 56 TB (7 x 8 TB), 60 TB (6 x 10 TB), 70 TB (7 X 10 TB), 80 TB (8 X 10 TB), 10 TB (1 x 10TB), 30 TB (3 x 10 TB), 40 TB (4 x 10 TB), No Hard Drive, 4 TB (1 x 4 TB), 8 TB (1 x 8 TB), 8 TB (2 x 4 TB), 16 TB (2 x 8 TB), 20 TB (2 x 10 TB), 24 TB (3 x 8 TB), 32 TB (4 x 8 TB), 64 TB (8 x 8 TB) |
|---|---|
| Max Bandwidth (Incoming) | |
| Channels | |
| Compliance | |
| Additional Features | |
| Intelligent Features | Dewarp, Cross Line, Dual Lens, Enter Area, Human Detection, Intelligent Mark, Intrusion, Leave Area, License Plate Recognition, Non-Motor Vehicle Detection, Object Left Behind, Object Removed, Scene Change, Smart Intrusion Prevention, Ultra Motion Detection, VCA Search, Vehicle Detection |
| Resolution | |
| # of SATA | |
| RJ45 | |
| Product Series | |
| Technology |
