Products > WPHD4A-LCD

,

WPHD4A-LCD

4 Channel 4K 5-Way DVR
12″ LCD Monitor
4TB Hard Drive
Thermostat / Fan Control
Insulation
NEMA3 Aluminum Enclosure

Login to view price
    SKU: WPHD4A-LCD-4TB
    CATEGORIES: Recorders

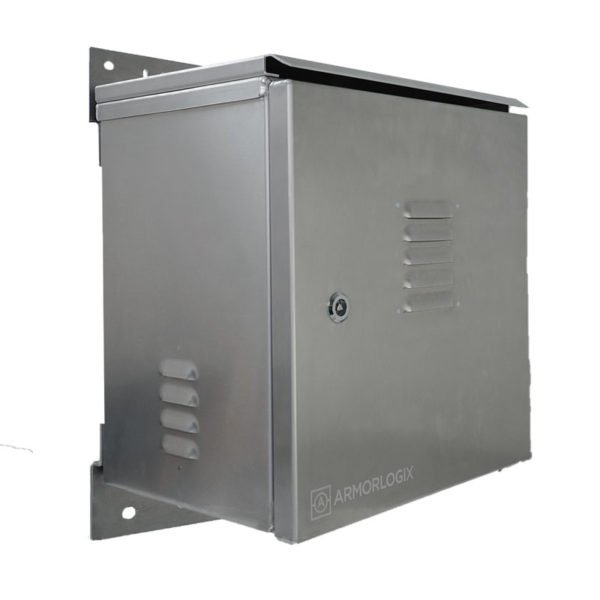

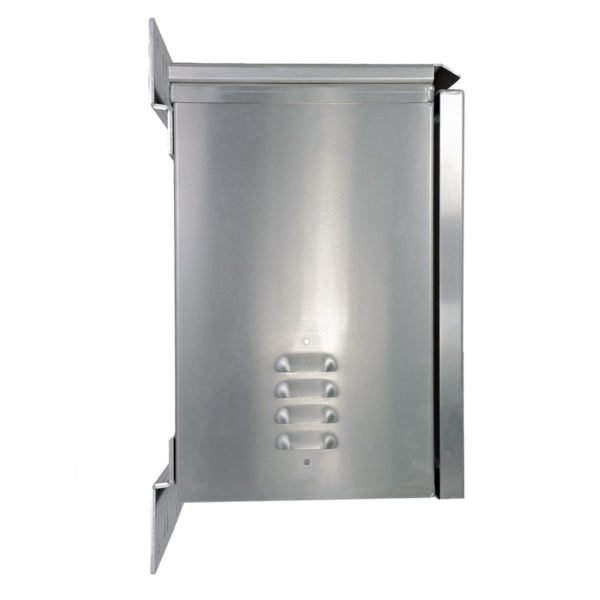

    Enclosure Specifications
    Enclosure Material 5052 Aluminum
    Enclosure Color Silver / Metallic
    Power Supply 9ch 12VDC, 8amp
    Voltage 120V AC (Power Strip)

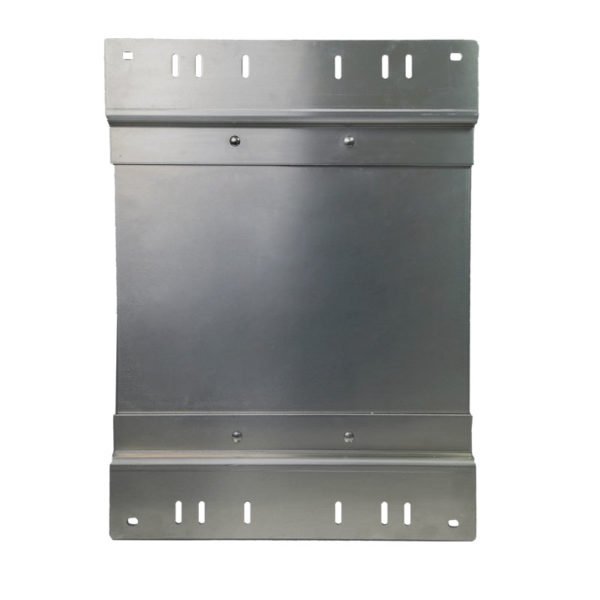

    Mounting Plate Material Aluminum
    Mounting Plate Dimensions 17″ × 16″ (431.8mm × 406.4mm)
    Weight (Enclosure Only) 41 lbs
    Outside Dimensions 19″ × 19″ × 12″ (482.6mm × 482.6mm × 304.8mm)
    Cable Feed 1.2″ Cable Conduit Connector
    Ratings NEMA 3
    4CH 5-Way 4K DVR
    Main Processor Embedded Processor
    Operating System Embedded LINUX
    PERIMETER PROTECTION
    Performance 2 Channels, 10 x IVS per Channel
    Object Classification Human / Vehicle secondary recognition for Tripwire & Intrusion
    AI Search Search by Target classification (human / vehicle)
    INTELLIGENT MOTION DETECTION +
    Performance 4 Channels
    AI Search Search by Target classification (human / vehicle)
    FACE RECOGNITION
    Performance 2 Channels, Max 8 faces per second
    Stranger Mode Detect stranger’s faces (not in database). Thresholds can be set manually.
    AI Search Up to 8 target face images at a time. Similarity thresholds can be set for each target face image.
    Database Management Up to 10 face databases with 20,000 face images in total. Set name, gender, birthday, address, certificate type, certificate number, countries & regions, and state.
    Database Application Each database can be applied to video channels independently.
    Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Record, Alarm Out, PTZ activation, etc.
    RECORDING
    Compression AI Coding / H.265+ / H.265 / H.264+ / H.264
    Resolution 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
    Record Rate
    Main stream: All channel 4K (1fps – 7fps); 6MP (1fps – 10fps); 5MP (1fps – 12fps); 4K-N, 4MP / 3MP (1fps – 15fps); 4M-N / 1080P / 720P / 960H / D1 / CIF (1fps – 25 / 30fps);
    Sub steram: 960H (1fps – 15fps); D1 / CIF (1fps – 25 / 30fps)
    Bit Rate 32Kbps – 6144Kbps Per Channel
    Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
    Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 sec – 30 sec, Post-record: 10 sec – 300 sec
    Audio Compression G.711A, G.711U, PCM
    Audio Sample Rate 8KHz, 16 bit Per Channel
    Audio Bit Rate 64Kbps Per Channel
    DISPLAY
    Interface 1 HDMI, 1 VGA
    Resolution HDMI: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
    VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    Multi-Screen Display When IP extension mode not enabled: 1 / 4
    When IP extension enabled: 1 / 4 / 8 / 9
    OSD Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
    NETWORK
    Interface 1 x RJ-45 Port (100M)
    Network Function
    HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports
    Max. User Access 128 users
    Smart Phone iPhone, iPad, Android
    Interoperability ONVIF 16.12, CGI Conformant
    VIDEO AND AUDIO
    Analog Camera Input 4 Channel, BNC
    HDCVI Camera 4K, 6MP, 5MP, 4MP, 1080P @ 25 / 30fps, 720P @ 50 / 60fps, 720P @ 25 / 30fps
    AHD Camera 4K, 5MP, 4MP, 3MP, 1080 P @ 25 / 30, 720P @ 25 / 30fps
    TVI Camera 4K, 5MP, 4MP, 3MP, 1080P @ 25 / 30, 720P @ 25 / 30fps
    CVBS Camera PAL / NTSC
    IP Camera Input 4+4 Channel, each channel up to 8MP
    Audio In/Out 1/1, RCA
    Two-way Talk Reuse audio in/out, RCA
    STORAGE
    Internal HDD 1 SATA Ports, up to 10TB capacity
    eSATA N/A
    VIDEO DETECTION AND ALARM
    Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,Buzzer and Screen Tips
    Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
    Alarm Input N/A
    Relay Output N/A
    PLAYBACK AND BACKUP
    Playback 1 / 4
    Search Mode Time / Date, Alarm, MD and Exact Search (accurate to second)
    Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
    Backup Mode USB Device / Network
    AUXILIARY INTERFACE
    USB 2 USB Ports (2 x USB 2.0)
    RS232 N/A
    RS485 1 Port, for PTZ Control
    GENERAL
    Power Supply DC12V / 2A
    Power Consumption <7W (Without HDD)
    Dimensions 1U, 10.24’’ × 9.34’’ × 1.87’’
    New Weight 2.5 lb (without HDD)
    Gross Weight 3.3 lb
    Installation Desktop
    Operating Conditions 14°F to +131°F, 0–90% RH
    Storage Conditions -4°F to +158°F, 0–90% RH
    Warranty 1 Year
    Download
    Helpful Links

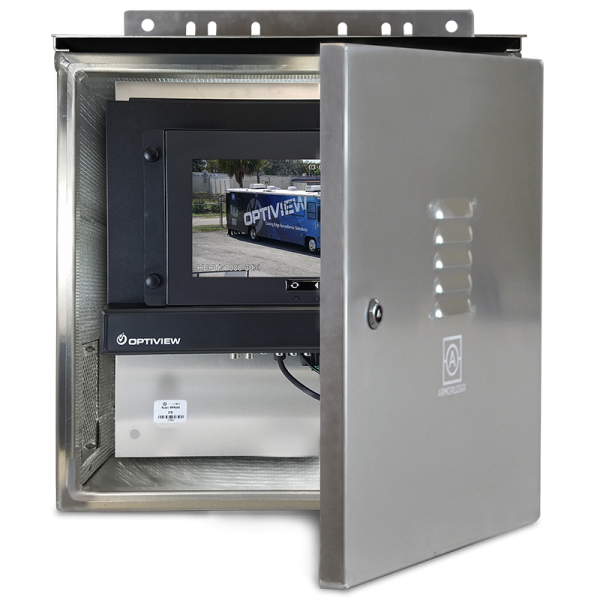

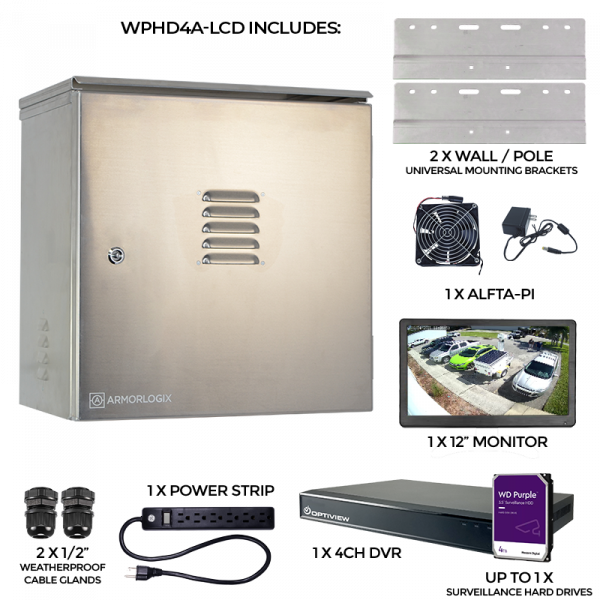

    This 4 camera HD weatherproof 4K DVR package includes everything you need for remote site recording. It includes:

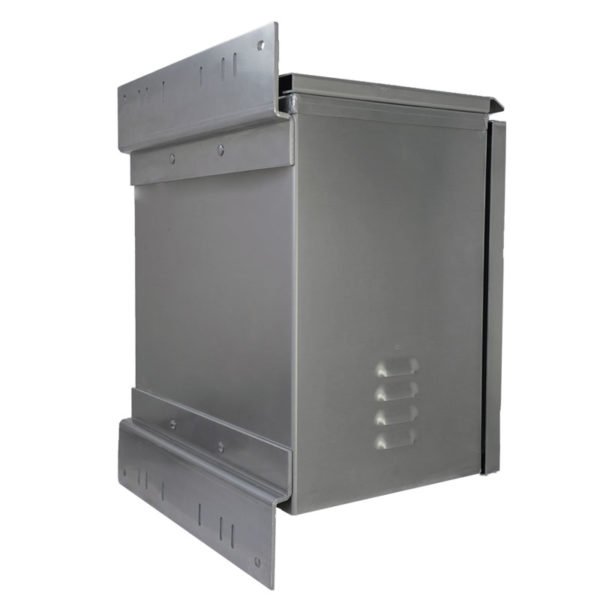

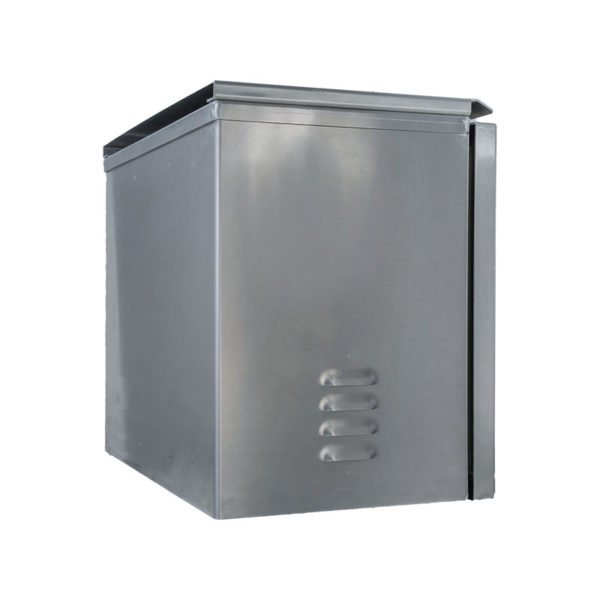

    • NEMA3 rated aluminum outdoor enclosure with a thermostatically controlled fan
    • Full featured 4ch 5-Way 4K HD DVR with H.265+ compression
    • 4TB of storage for extended record time
    • 9 channel 12V power supply to power cameras
    • 6 outlet power strip for 24V devices like heated housings or PTZs.

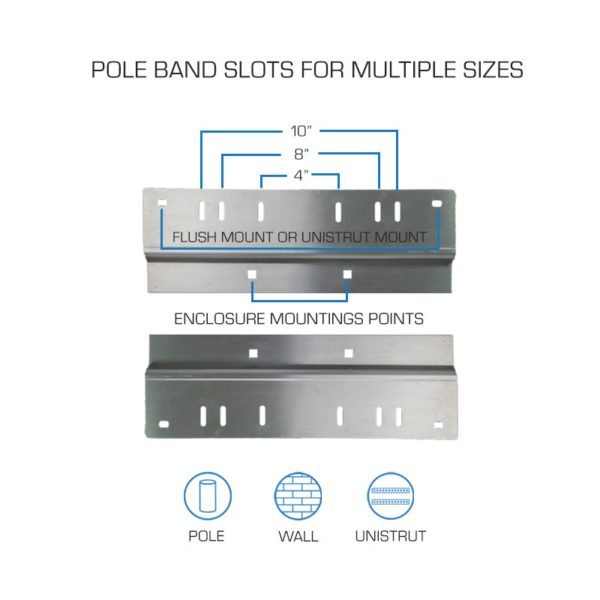

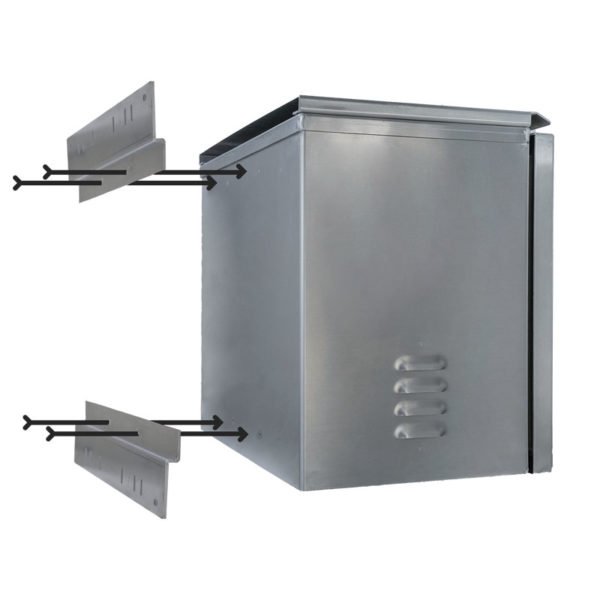

    • Universal Wall Mount Brackets
    Weatherproof
