2MP IP
Capture HD video footage with 2MP at up to 60fps.
2MP PTZ
33X Optical Zoom
Advanced Starlight
Memory Card Slot
NDAA Compliant
Capture HD video footage with 2MP at up to 60fps.
High powered night vision with long range IR.
Advanced Starlight technology with a minimum of 0.001LUX before IR turns on.

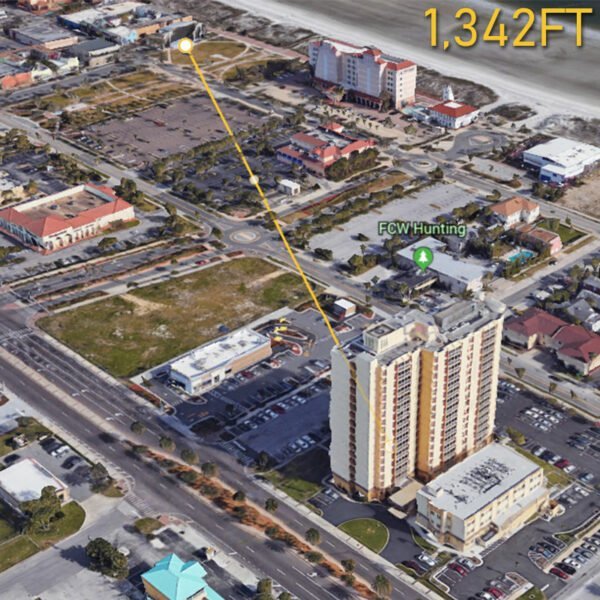

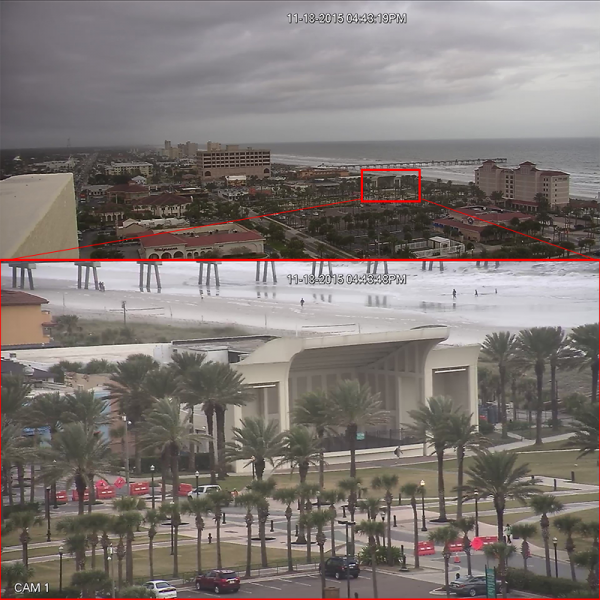

Capture even more with a 360° Pan range and 33x Optical Zoom.
Accurately reduce false alarms with custom zones with human and vehicle detection.

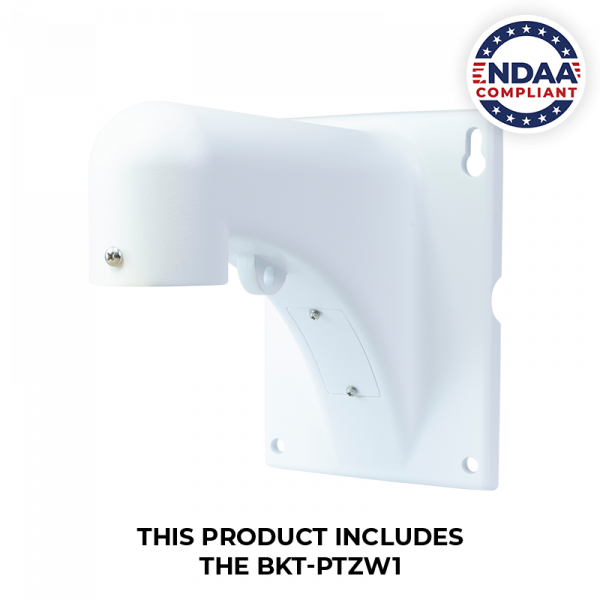

The IP2MPTZ33-NCV comes with the BKT-PTZW1 mounting bracket.

Utilizing machine learning and data intelligence, Smart Intrusion Prevention or SIP helps reduce false-alarm rates by allowing you to set up Cross Line Detection, Intrusion Detection, as well as Enter / Leave Area, all which can do any combination of human/vehicle/non-motor vehicle recognition. Smart Intrusion Prevention’s detection rate of >95% helps you improve your perimeter protection, reduce false alarms while keeping you informed about the events that matter the most to you.
Utilizing machine learning and data intelligence, Ultra Motion Detection or UMD helps you filter out object based on motion detection, detecting motion of specified object types in the image, and trigger an alarm when such motion is detected. UMD supports two different object types: Person and Vehicle. UMD provides a detection rate of >90% up to 49ft and is more efficient than traditional motion detection, further reducing false-alarms.

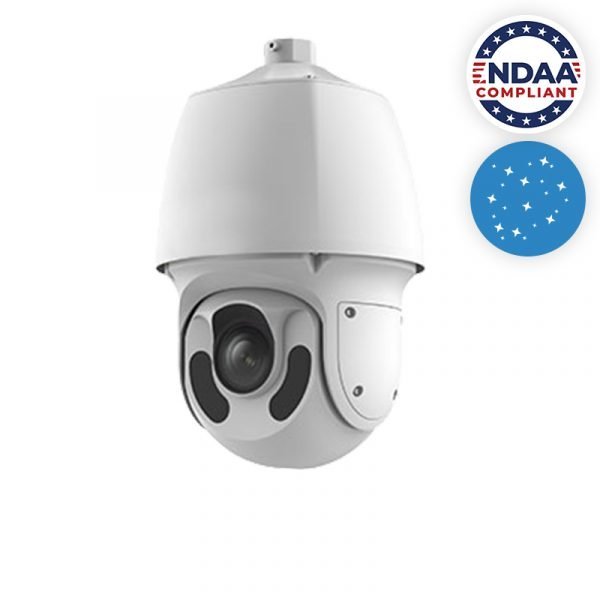

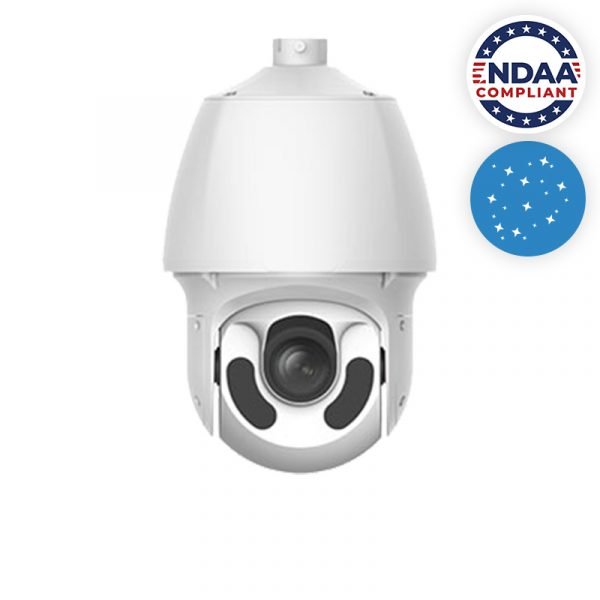

The IP2MPTZ33-NCV advanced starlight PTZ camera is one of Optiview’s NDAA compliant IP security cameras, and can be paired with any of Optiview’s NCV line of NDAA compliant network video recorders.
Get everything you need for your project at Optiview. In addition to NDAA compliant cameras and recorders, we also carry many other camera surveillance accessory equipment, such as PoE switches, cabling, connectors, and more that are NDAA compliant.
The IP2MPTZ33-NCV PTZ camera is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments at 0.001 LUX. In environments lower than 0.001 Lux, on board IR illumination kicks in. The IP2MPTZ33-NCV provides clear video capture in both day and night with high definition video output.
Light Level |
Lux Rating |
| Security / Outdoor Lights | 2.0 Lux |
| Clear Full Moon | .01 Lux |
| Moonlight Cloudy Night | 0.01 Lux |
| Moonless Starry Night | 0.001 Lux |


Utilizing H.265 advanced video encoding, provides high-quality video while reducing the storage space needed to retain your video events. Users can add their own memory card to take advantage of its edge recording capabilities.

Optiview’s 2MP NDAA compliant PTZ Camera with 33x zoom can record to either a network video recorder, record to the edge, or record to both for redundancy with the addition of a memory card slot. Accepts a memory card (not included) of up to 256GB.

Camera |
|
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) |
| 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
Lens |
|
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom | 16 |
| Optical Zoom | 33 |
| Iris | Auto; F1.5 ~ F4.0 |
| Angle of View (H x V x O) | 56.2° ~ 2.6°, 33.5° ~ 1.4°, 69.1° ~ 3.1° |
| DORI Distance | Detect: 239.3ft – 7178.3ft |
| Observe: 95.7ft – 2871.3ft | |
| Recognize: 47.9ft – 1435.7ft | |
| Identify: 23.9ft – 717.8ft | |
Illuminator |
|
| IR Range | 492 ft IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto / Manual |
Video |
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP(1920 * 1080),Max 60fps; |
| Sub Stream: 2MP (1920 * 1080), Max 60fps; | |
| Third Stream: D1 (720 * 576), Max 60fps; | |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
Image |
|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Flip | Normal / Flip Vertical / Flip Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
Events |
|
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
|
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
Storage |
|
| Edge Storage | SD Card Slot, up to 256 GB |
| Network Storage | ANR , NAS (NFS) |
Interface |
|
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC |
Pan & Tilt |
|
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 200°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1° ~ 200°/s |
| Preset speed: 240°/s | |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
Certification |
|
| EMC | FCC Part 15 |
| EN 55032:2015 | |
| EN 55024:2010 | |
| EN 61000-3-2:2014 | |
| EN 61000-3-3-2013 | |
| Safety | IEC 62368-1 |
| EN 62368-1 | |
| UL 60950-1 | |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
Network |
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Optiview VMSN |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, | |
| Firefox 58.0+, Edge 16+, Safari 11+ | |
General |
|
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) |
| Power Consumption: Max 41W | |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions (Ø x H) | Ø8.9” x 15.1” |
| Weight | 11.88lb |
| Working Environment | -40°F ~ 158°F, Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40°F ~ 158°F, Humidity: ≤95% RH (non-condensing) |
| Surge protection | 6KV |
| Reset Button | Support |
| Protection | Ingress Protection: IP66 |
| Vandal Resistant | N/A |
| File Name | Release Date | Resource type |
|
Data Sheet – IP2MPTZ33-NCV |
2/4/2022 | Data Sheet |
| 6/15/2022 | ||
| n/a | Web Page |
| Product Series | |
|---|---|
| Technology | |
| Compliance | |
| Resolution | |
| Camera Types / Style | |
| Solutions | |
| Intelligent Features | People Counting, Cross Line, Enter Area, Face Capture, Human Detection, Intrusion, Leave Area, Non-Motor Vehicle Detection, Smart Intrusion Prevention, Ultra Motion Detection, Vehicle Detection |
| Additional Features | Alarm Relays, ANR, Auto Tracking, Edge Recording, Memory Card Slot, Motorized Zoom |
| Lens Type | |
| Max IR Distance | |
| Minimum Color Illumination | |
| Weatherproof Rating | |
| Max Angle of View | |
| Audio | |
| Max PTZ Optical Zoom | |
| Max PTZ Camera Rotation | |
| Wide Dynamic Range |
