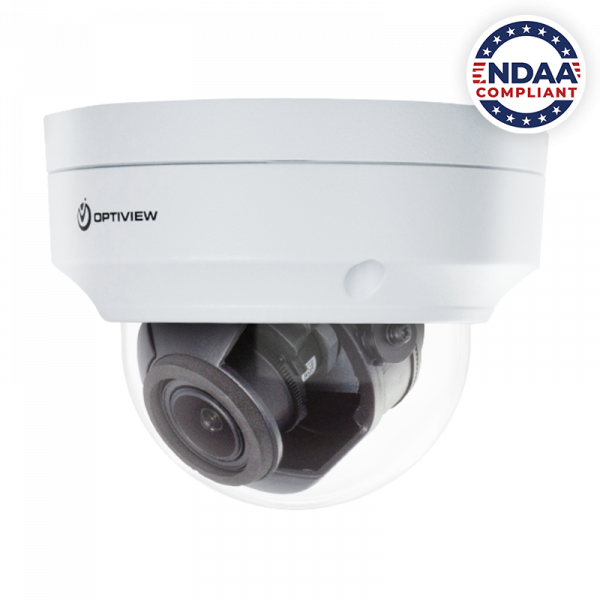

IP4MIAD-212-Z-NCV – NDAA Compliant 4MP Motorized Zoom Armor Dome IP Camera with Optional Edge Recording

4MP Armor Dome
Motorized Zoom
102.7° ~ 30.8° View
Memory Card Slot
NDAA Compliant

Login to view price
    SKU: IP4MIAD-212-Z-NCV
    CATEGORIES: Cameras
    4MP IP

    Capture HD video footage with 4MP IP 2.8 ~ 12MM variable focus lens with a maximum aperture of F1.6

    WDR

    Wide Dynamic Range or (WDR) gives this camera the capability to handle brighter and darker conditions.

    98ft IR

    High powered night vision with a minimum illumination of 0.003 LUX and IR.

    98.3 ~ 31.4° View

    Capture even more with an ultra-wide varifocal 98.3° ~ 31.4° view with no distortion.

    IP67

    All metal aluminum housing for indoor and outdoor installations with 2KV lightning rating.

    WDR (Wide Dynamic Range) - Infinity

    Wide Dynamic Range

    The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

    COMMERCIAL GRADE EQUIPMENT

    Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables
    and connections.

    SEE MORE
    Infinity Scroll Image - Professional Grade Equipment V2
    Infinity Scroll Image - Smart H.265+ V2

    ULTRA H.265 COMPRESSION

    Utilizing H.265 advanced video encoding, provides high-quality video while reducing the storage space needed to retain your video events. Users can add their own memory card to take advantage of its edge recording capabilities.

    H.265 Compression comparison chart

    UP TO 98FT IR DISTANCE

    The IP4MIAD-212-Z-NCV is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments at 0.003 LUX. In environments lower than 0.003 Lux, on board IR illumination kicks in. The IP4MIAD-212-Z-NCV provides clear video capture in both day and night with high definition video output.

    Light Level
    Lux Rating
    Security / Outdoor Lights 2.0 Lux
    Clear Full Moon .01 Lux
    Moonlight Cloudy Night 0.01 Lux
    Moonless Starry Night 0.001 Lux
    Infinity Scroll Image - Infrared V3
    Infinity Scroll Image - Edge Recording V4

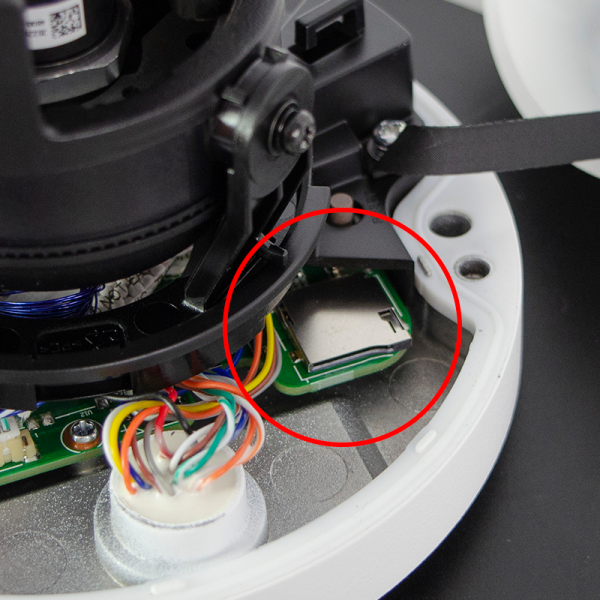

    EDGE RECORDING

    Optiview’s 4MP NDAA compliant IP4MIAD-212-Z-NCV can record to either a network video recorder, record to the edge, or record to both for redundancy with the addition of a memory card slot. Accepts a memory card (not included) of up to 128GB.

    SEE MORE

    NDAA COMPLIANT SECURITY CAMERA

    The IP4MIAD-212-Z-NCV is one of Optiview’s NDAA compliant IP security cameras, and can be paired with any of Optiview’s NCV line of NDAA compliant network video recorders.

    Get everything you need for your project at Optiview. In addition to NDAA compliant cameras and recorders, we also carry many other camera surveillance accessory equipment, such as PoE switches, cabling, connectors, and more that are NDAA compliant.

    SEE MORE
    Infinity Scroll Image - NDAA_TAA V2
    Camera
    Sensor 1/3”, 4.0 megapixel, progressive scan, CMOS
    Minimum Illumination Colour: 0.003 lux (F1.6, AGC ON)
    0 lux with IR
    Day / Night IR-cut filter with auto switch (ICR)
    Shutter Auto/Manual, 1 ~ 1/100000s
    Adjustment Angle Pan: 3° to 360°
    Tilt: 0° ~ 70°
    Rotate: 3° to 360°
    S/N >56dB
    WDR 120dB
    Lens
    Lens Type 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
    Iris Fixed
    Field of View (H) 102.79°~ 30.86°
    Field of View (V) 54.50°~ 17.49°
    Field of View (D) 106.94°~35.49°
    DORI
    DORI Distance Detect: 206.6ft ~ 885.8ft
    Observe: 82.6ft ~ 354.3ft
    Recognize: 41.3ft ~ 177.1ft
    Identify: 20.6ft ~ 88.5ft
    Illuminator
    IR Range Up to 131ft IR range
    Wavelength 850nm
    IR On / Off Control Auto / Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline Profile, Main Profile, High Profile
    Frame Rate Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
    Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
    Video Bit Rate 128 Kbps ~ 16 Mbps
    U-code Support
    OSD Up to 4 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Video Stream Dual streams
    White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
    Digital Noise Reduction 2D / 3D DNR
    Smart IR Support
    Flip Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
    Dewarping N/A
    HLC Supported
    BLC Supported
    Defog Digital Defog
    Events
    Basic Detection Cross Line, Intrusion(based on Human Body Detection)
    Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
    General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Audio
    Audio Compression G.711U, G.711A
    Audio Bitrate 64 Kbps
    Two-way Audio N/A
    Suppression Support
    Sampling Rate 8KHZ
    Storage
    Edge Storage Memory Card Slot, up to 256GB
    Network Storage ANR, NAS(NFS)
    Network
    Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
    User / Host Up to 32 users. 2 user levels: administrator and common user
    Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    Client Optiview VMSN, Optiview VMSN Mobile
    Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
    Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
    Interface
    Audio I/O N/A
    Alarm I/O N/A
    Serial Port N/A
    Built-in Mic Support
    Built-in Speaker N/A
    WIFI N/A
    Network 1 * RJ45 10M/100M Base-TX Ethernet
    Video Output N/A
    Certification
    EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
    FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
    Safety CE LVD (EN 62368-1:2014+A11:2017)
    CB (IEC 62368-1:2014)
    UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
    Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
    IK10 (IEC 62262:2002)
    General

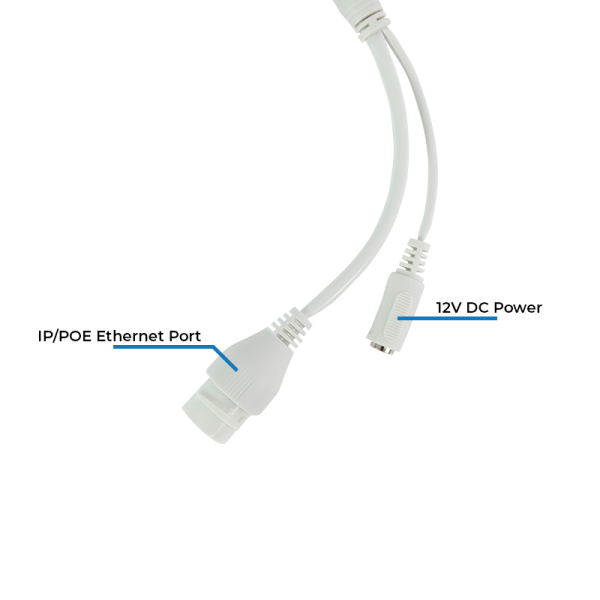

    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 7.5W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions (Ø x H) Ø5.0” x 3.9”
    Weight 1.43lb
    Material Metal + Plastic
    Working Environment -22°F ~ 140°F, Humidity: ≤95% RH (non-condensing)
    Storage Environment -22°F ~ 140°F, Humidity: ≤95% RH (non-condensing)
    Surge Protection 6KV
    Reset Button Support
