SM200-200AHL – 200W Solar Power Module

Power Core

Solar Panels

Primary Cabling

Product Specific Resources

Data Sheet - SM200-200AHL

Additional Resources

Solar Platforms

Weatherproof Surveillance

Weatherproof

NDAA & TAA Compliant

Fixed Weatherproof Recording

Flexible Modular Solar Systems

Optiview’s new modular based solar systems are designed to be installed fixed on a platform, pole or a wall and can be used to power items in areas where shore power is not readily available.

Easy to Install

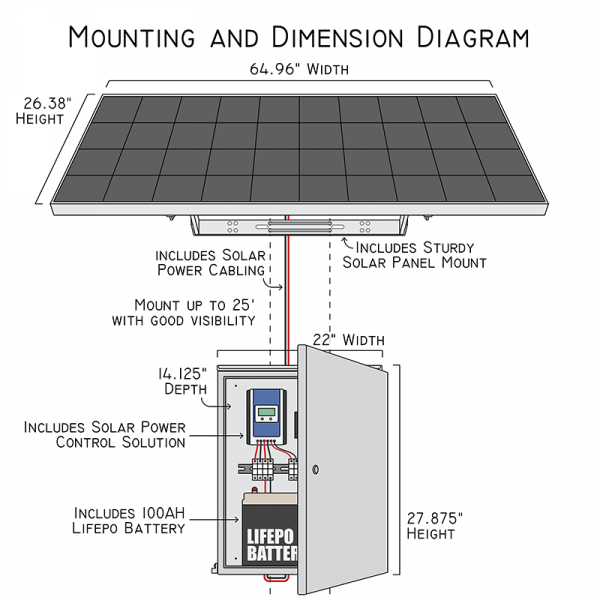

Optiview’s in-house systems designers will pre-build the main components of this system. It will be up to you to install the three primary components and finish the connections.

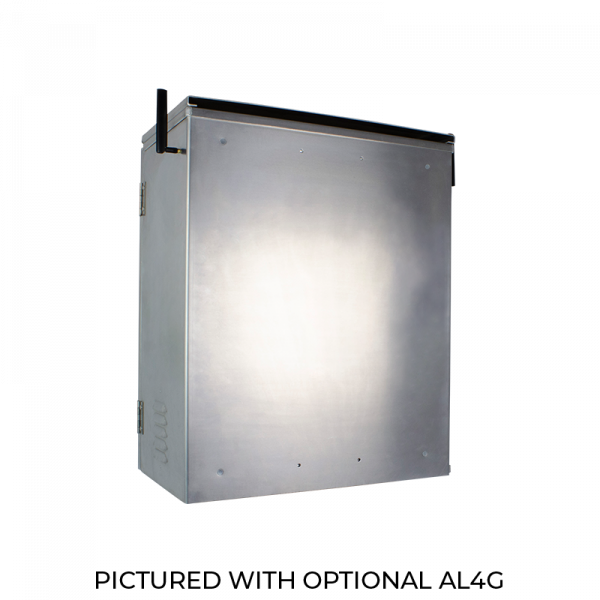

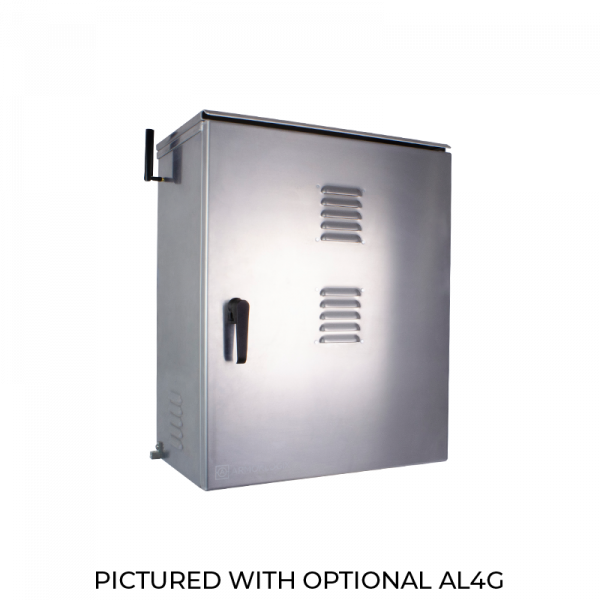

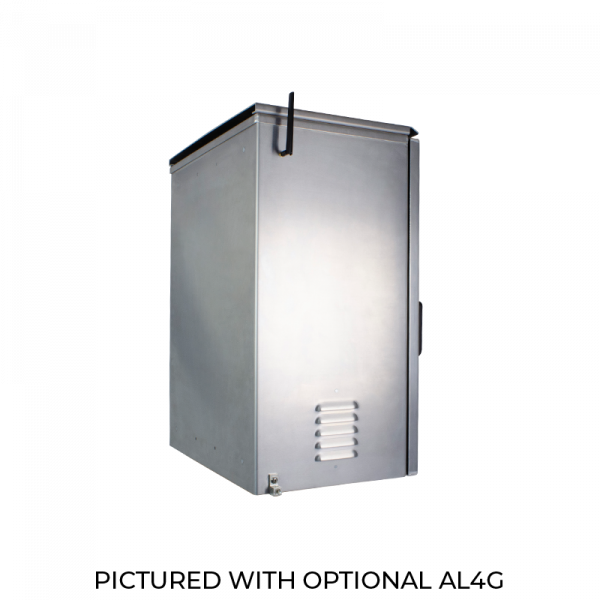

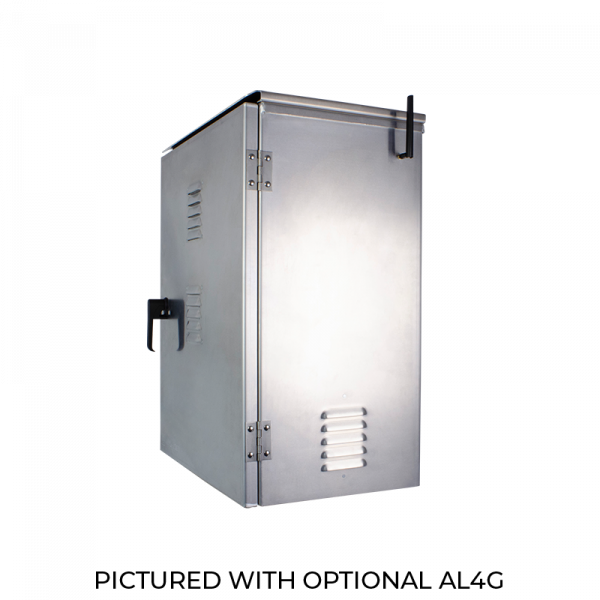

Rugged Power Core: ArmorLogix AL272213 NEMA 3 marine grade 5052 aluminum enclosure houses the 100AH lithium phosphate solar battery, control panel, PoE switch, and is where all the connections terminate.

Solar Panels: One 200W solar panel with mounting bracket for on site installation.

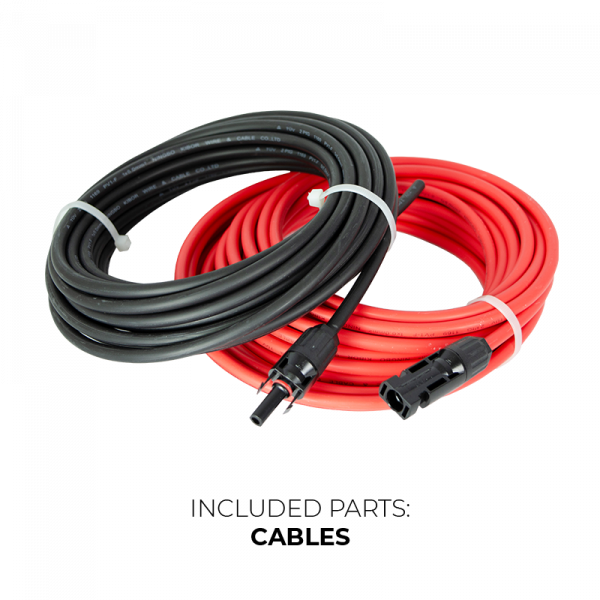

Primary Cabling: The PV wire connecting the power core and solar panels comes in a 30ft length for a maximum distance of 30ft between the solar panels and the enclosure.

Weatherproof and Durable

The AL272213 enclosure that houses the battery is constructed from 5052 marine grade aluminum which means it is not prone to rust or corrosion like other metal enclosures constructed from steel. All components of this modular, scalable system are rated for the outdoors and will last for years.

Financing available. Click here for more information.

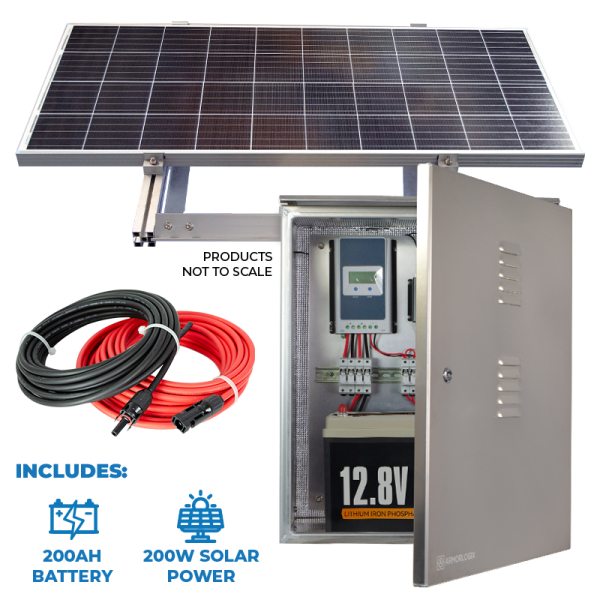

What’s Included

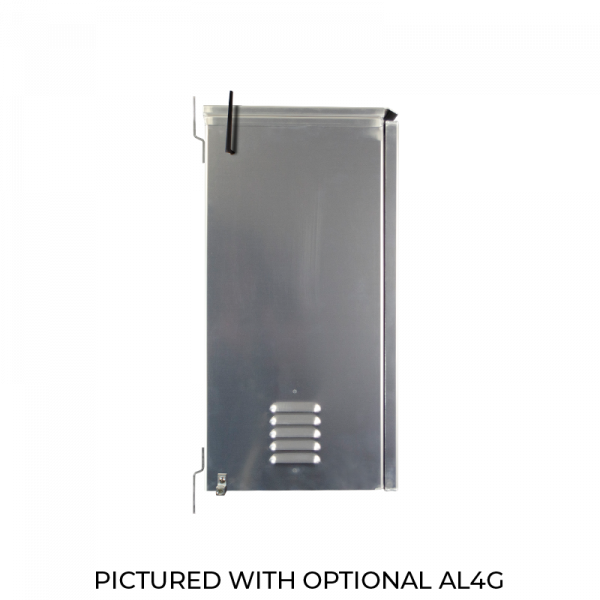

• Pole or Wall Installation Brackets
• NEMA 3 Weatherproof Enclosure
• One 200Ah LifePO4 Solar Battery
• One 200W Solar Panel + Mounting Bracket
• 20ft of PV Solar Wire
• Industrial 4 port PoE switch
• Solar Charge Controller
