20″ x 22″ x 22″
NEMA 4
1/8” 5052 Aluminum

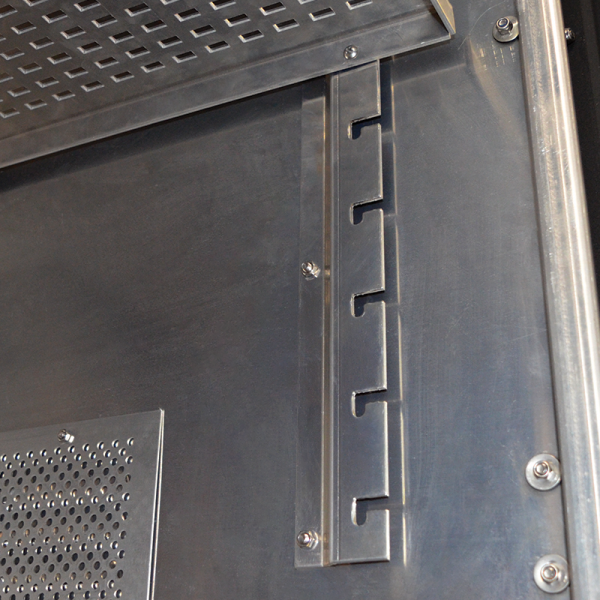

Adjustable Equipment Mounting Shelf
| Material | 1/8″ 5052 Aluminum | |
| NEMA Rating | 4 | |

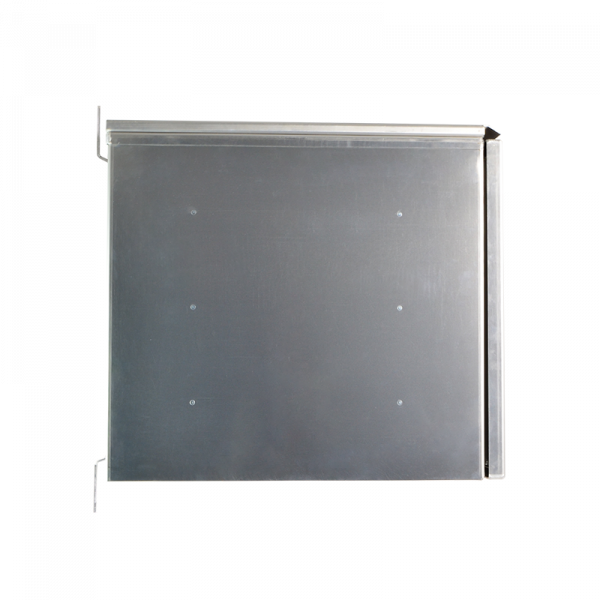

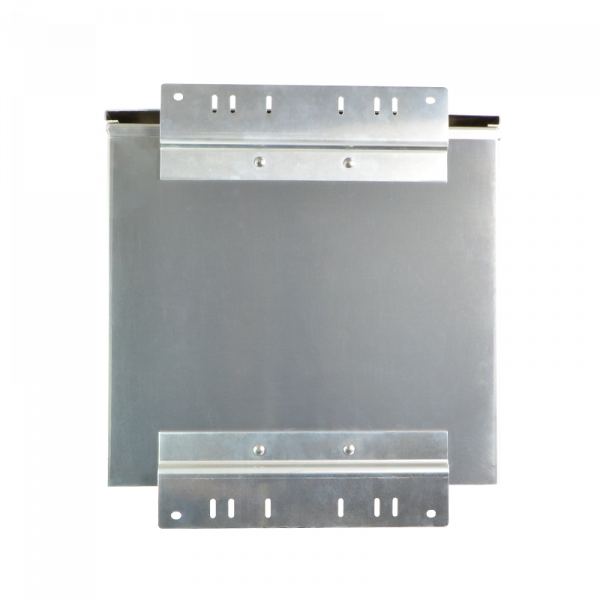

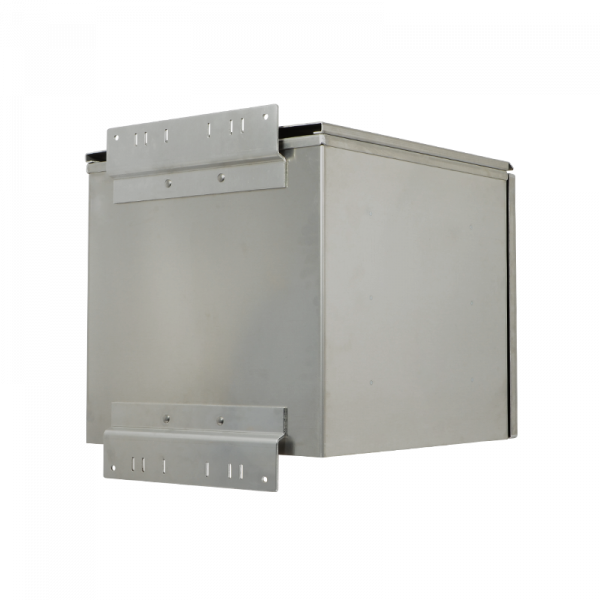

| Mounting Brackets | Universal Wall / Pole Brackets – Bands not included (x2) | |
| Door Seals | 1/4″ Weather Tight Neoprene | |

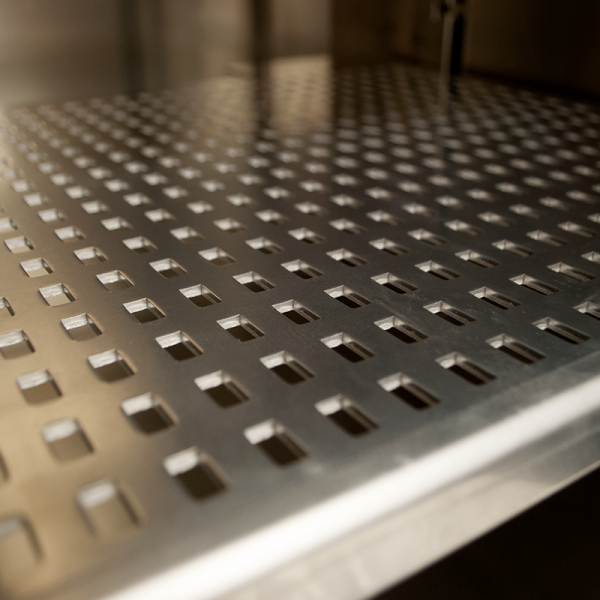

| Equipment Shelf | 1x (20.625″ x 17.5″) | |
| Security Lock | Yes (2x keys included) | |
| Dimensions: External | 22.25” W x 20.875” H x 23” D | |
| Dimensions: Internal Max | 21.125” W x 19.625” H x 22.375” D | |
| Dimensions: Internal Min | 21.125” W x 19.625” H x 22.375” D | |
| Weight | 62 lbs. |
PDF Spec Sheet – Download

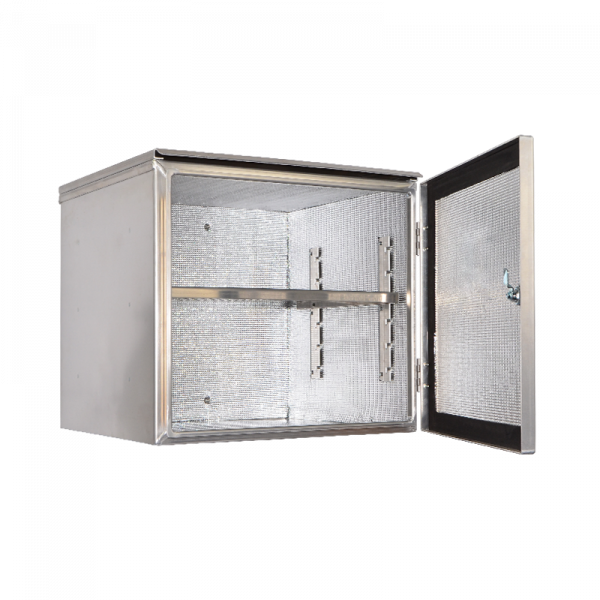

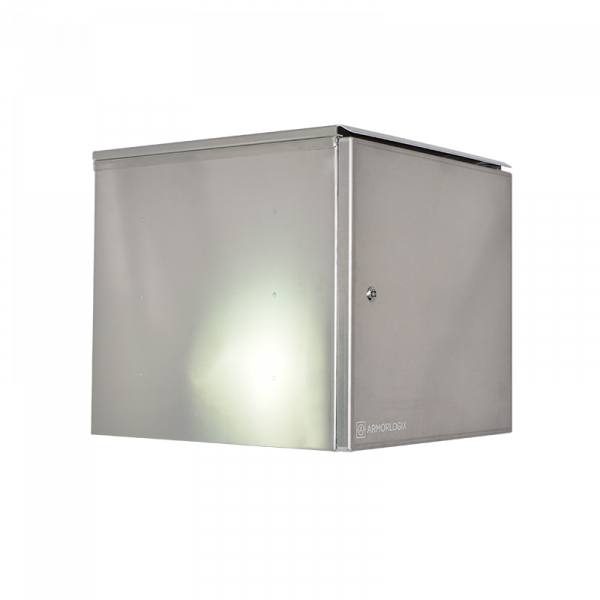

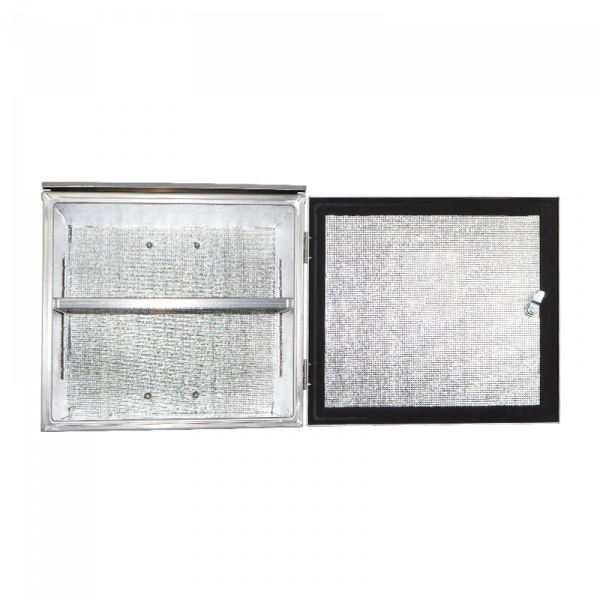

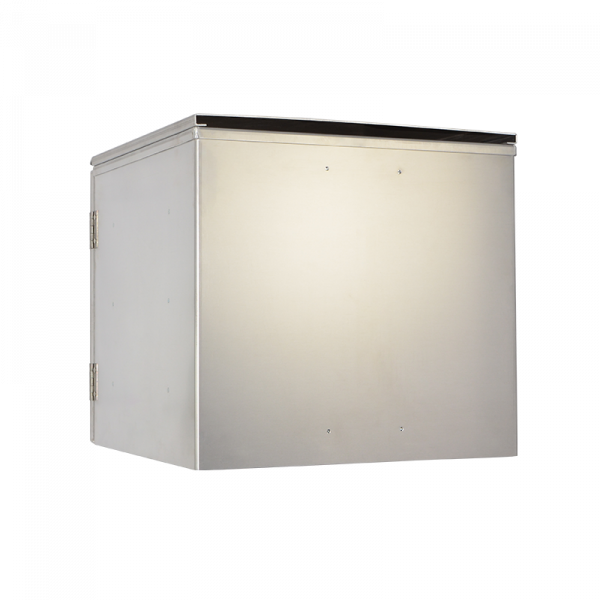

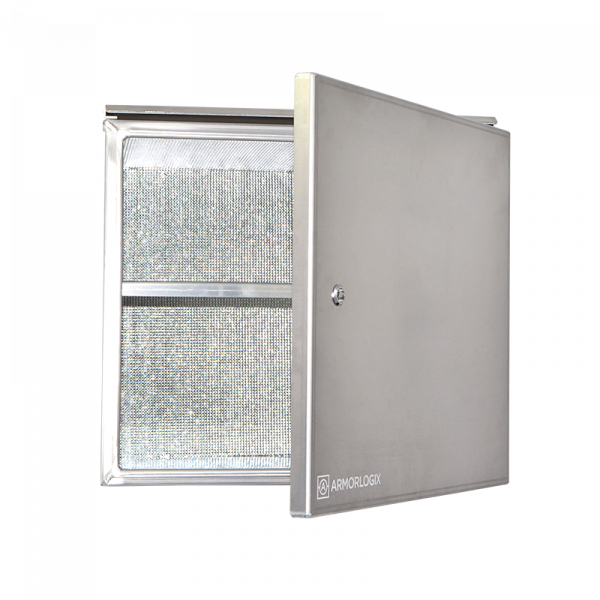

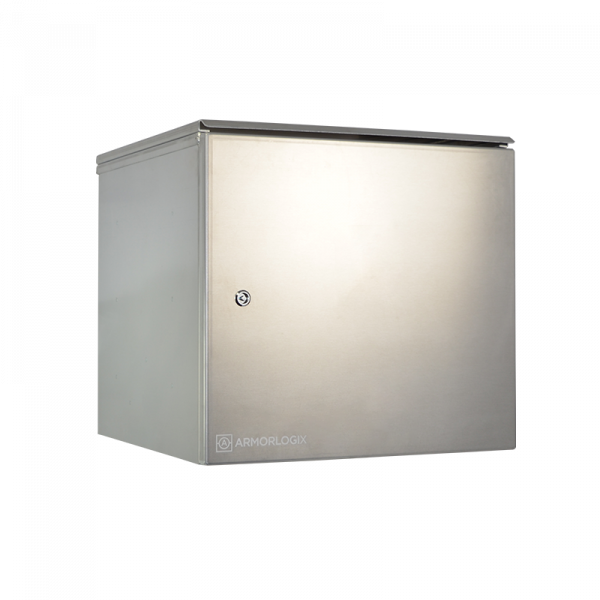

The all new NEMA4 20x22x22″ Aluminum Outdoor Weatherproof Enclosure by ArmorLogix comes standard with a security lock and one (1) heavy duty adjustable equipment shelf. A second AL202222SHLF can be purchased separately. This size is also available with a NEMA3 rating – AL202222N3.
Use the AL202222N4 for exterior applications and with full-sized equipment such as recorders. Constructed with the same Marine Grade 5052 Aluminum as our other outdoor weatherproof enclosures, the AL202222N4 has a 1/4″ weathertight rubber door seal and is rated NEMA4. Two over-center latches can be added for additional security.
