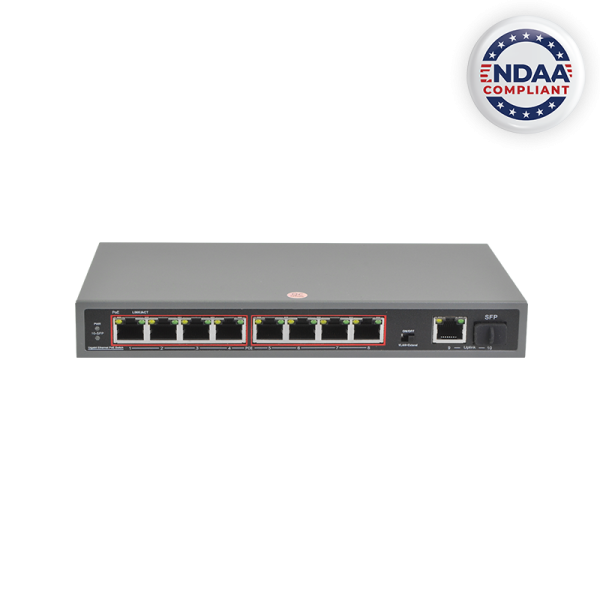

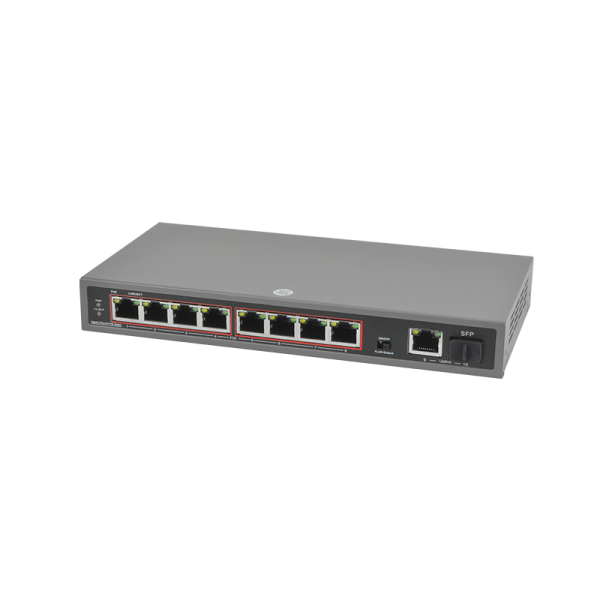

OVPOE8-125V – 8 + 1 Port 125W PoE Switch 10 / 100 / 1000 with 1x SFP

Name: OVPOE8-125V - 8 + 1 Port 125W PoE Switch 10 / 100 / 1000 with 1x SFP
SKU: OVPOE8-125V
Availability: InStock

8 x 10/100/1000Base-TX
1 x GB Uplink + 1 x GB SFP
125W Power over Ethernet

SKU: OVPOE8-125V
CATEGORIES: Accessories

Get high speed data transfer rates easily by connecting up to 5x Cat5e or Cat6 UTP cables.

Provide flexible fiber connectivity easily with extremely high speeds with low loss in a compact design.

Utilizing auto-negotiation, this switch detects cable type, power needs, and automatically selects the best speed.

Provides up to 125 watts of Power over Ethernet budget for all connected devices.

Built for endurance, the OVPOE8-125V is constructed out of a durable metal housing.

Features

Power Supply	External Power Adaptor
Voltage Range	DC48V- 57V
Consumption	<6W
Speed	1-8 Port : 10/100/1 000Mbps
	1TP + 1 SFP Uplink : 1 000Mbps
Ethernet Standard	IEEE 802.3x IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching capacity	20G
Transfer Rate	14,880pps for 1OM bps
	148,B00pps for 1 00Mbps
	1,488,000pps for 1 000Mbps
MAC Address	4K MAC address table
LINK/ACT	On / Green: The port is connecting
	Blinks: The port is receiving or transmitting data
	Off: The port is not linked successfully with the device
POE	On / Orange: PD is connected
	Off: No PD is connected or power forwarding fails
	Capacity: 119W
Environment	Temperature: 32.0-104.0°F
	Storage: 40.0°F-158.0°F
Mechanical	Dimension: 8.58” x 4.21” x 1.14”
	Color: Gray

Accessories	PoE & Switches & Wireless
Technology	IP

SKU: OVPOE8-125V Categories: Accessories, NDAA Compliance
