Products > OVPOE16-250 – 16 Port PoE + 2 Gigabit Switch 10/100/1000Base-TX

,

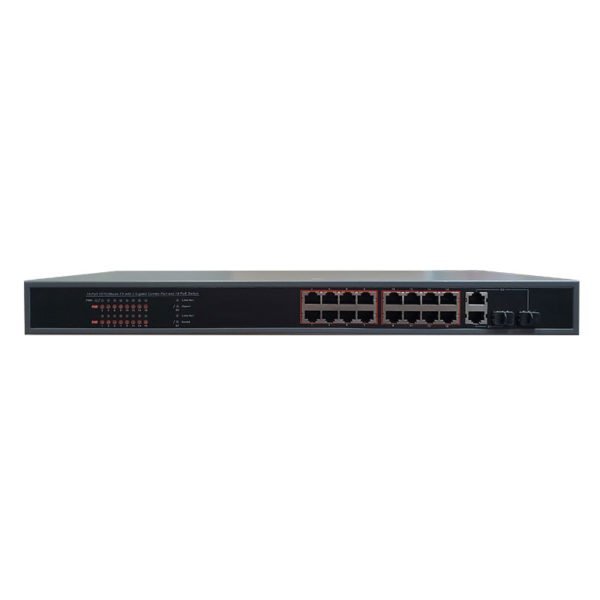

OVPOE16-250 – 16 Port PoE + 2 Gigabit Switch 10/100/1000Base-TX

16 x 10/100Base-TX
2 x GB Uplink + 2 x GB SFP
250W Power over Ethernet

Login to view price
    SKU: OVPOE16-250
    CATEGORIES: Accessories
    Power
    		 Power Supply Built-In Power Supply
    Voltage Range AC100~240V
    Switch Consumption <15W
    Ethernet
    		 Speed 1~16 Port : 10/100/1000Mbps
    G1~G2: Gigabit Combo
    Transmission Distance 328ft for RJ-45
    Network Switch
    		 Ethernet Standard IEEE 802.3/802.3u/802.3ab/802.3af/at
    Switching Capacity 7.2G
    Transfer Rate 14,880pps for 10Mbps
    148,800pps for 100Mbps
    1,488,000pps for 100Mbps
    MAC Address 4K MAC address table

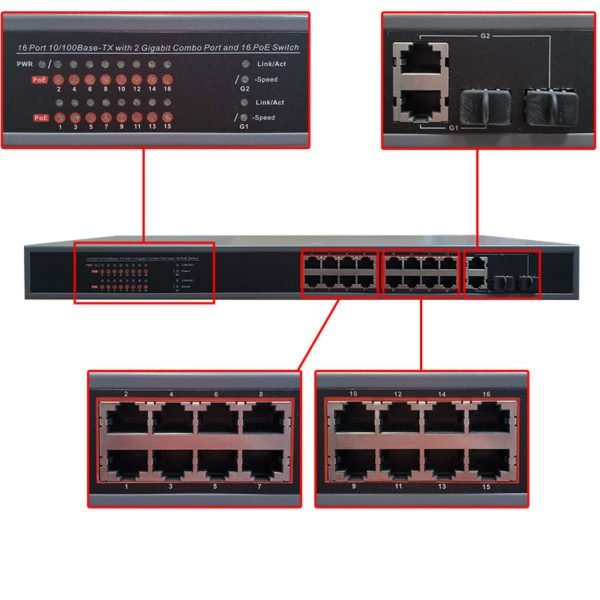

    Link
    		 On / Green The port is connecting
    Blinks The port is receiving or transmitting data
    Off The port is not linked successfully with the device
    On / Orange PD is connected
    Off No PD is connected or power forwarding fails
    Total Output Capacity 250W
    Output Capacity per Port Up to 30W per port
    PoE Pin Assignment V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
    Environment
    		 Working Temperature 0~40℃
    Storage Temperature -40~70℃
    Humidity (Non-Condensing) 0~85%
    Mechanical
    		 Dimension 17.3″ x 7.9″ x 1.7″
    Color Black
    • 16 PoE ports, 10/100 Mbps each port
    • 2 x Gigabit Uplink ports for high speed connection
    • 2 x Gigabit fiber optic ports for high speed connection
    • Base on web management, easy and convenient
    • 250W Maximum output power and 30W per port
    • High back-plane bandwidth 7.2Gbps for 16+2G
    • Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
    • IEEE802.3x Flow Control
    • 16+2 Combo gigabit ports PoE Ethernet switch
    • AC Power Cable
    • Accessories
    • User Manual
    Accessories

    Compliance

    SKU: OVPOE16-250 Categories: ,
