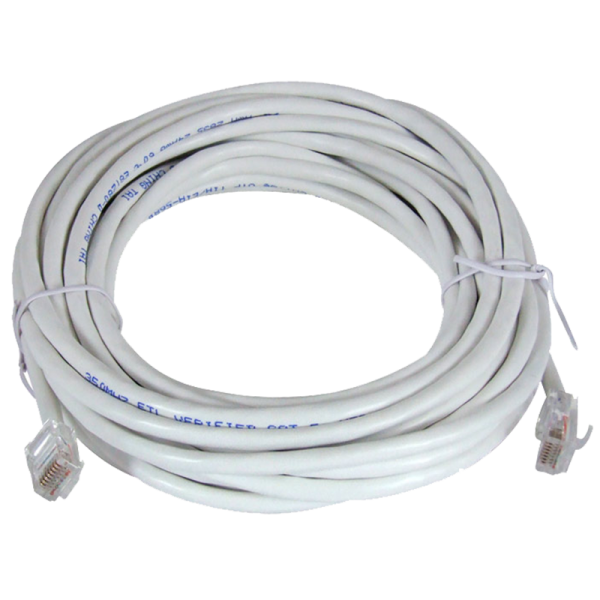

CAT6-100 – 100ft CAT6 Ethernet Cable

100 ft. Cable Length
4 pairs, 24 AWG, Stranded
Unshielded twisted pairs

Login to view price
    SKU: CAT6-100
    CATEGORIES: Accessories
    Cable Construction
    Center Conductor 0.57mm CCA
    Dielectric 0.98mm
    Insulation Material HP-PE
    Outer Jacket 6.0
    Voltage Rating 2.5KV
    Nominal Overall Diameter 6.1mm
    Reference Documents Commscope Standard
    Color Code of 4 Pairs
    Brown White / Brown
    Blue White / Blue
    Orange White / Orange
    Green White / Green
    Physical Characteristics
    Temperature Rating 20° ~ 55°C
    Installation FLVKE
    Operations QC
    Maximum Installation Tension 2.5KV
    Minimum Bending Radius 48
    Nominal Cable Weight 2.9Kg/100m
    Nominal Cable Diameter 6.1mm
    Electrical Properties
    Characteristic Impedance 100±15% Ohms.
    Velocity of Propagation < 0.622
    Capacitance Unbalance 200pF / Km
    Max Conductor DCR 173
    Max DCR Unbalance 1.5%



    100ft pre-terminated CCA CAT6 booted patch cable for surveillance or datacom installations.
