8MP / 4K IP
Capture HD video footage with 8MP IP 2.8MM fixed lens with a maximum aperture of F1.6.

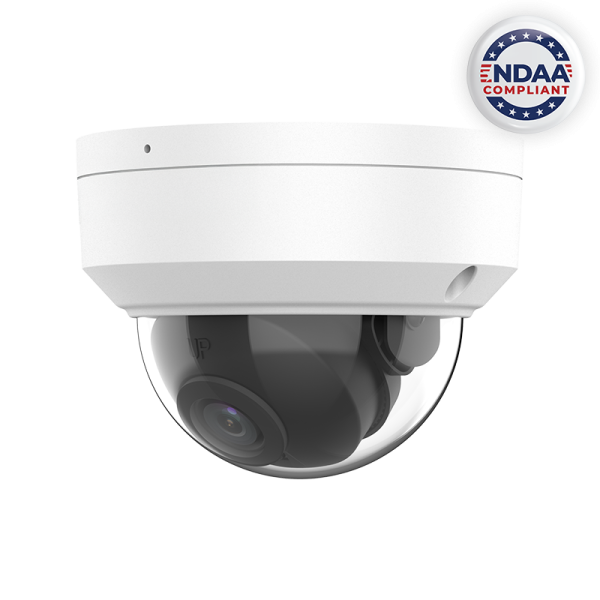

8MP 4K IP Armor Dome Camera
Ultra Motion Detection
IP67 & IK10
Built-in Mic
Capture HD video footage with 8MP IP 2.8MM fixed lens with a maximum aperture of F1.6.
Human and Vehicle detection accuracy enhanced by machine learning reducing false alarms and enhancing security.
High-powered night vision with a minimum illumination of 0.005 LUX and Smart IR.
Automatic Network Replenishment (ANR) Technology helps provide backup NVR redundancy
The IP8MIAD-28AUSX-NCV comes with a built-in microphone to help you get even more data from every device.

4K resolution captures images four times the pixel density of 1080P which means that the finer details, such as faces or smaller items can be viewed with more detail than traditional 1080P surveillance.
Utilizing machine learning and data intelligence, Ultra Motion Detection or UMD helps you filter out objects based on motion detection, detecting motion of specified object types in the image, and trigger an alarm when such motion is detected. UMD supports two different object types: Person and Vehicle. UMD provides a detection rate of >90% up to 49ft and is more efficient than traditional motion detection, further reducing false-alarms. Ultra Motion Detection can be configured to your full screen or specific area(s) for detection.

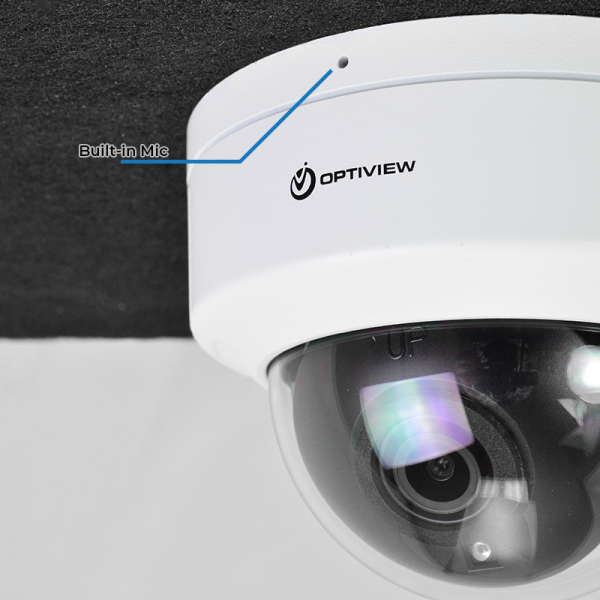

The IP8MIAD-28AUSX-NCV comes with a built-in mic to help give you even more protection than a traditional still video.
The IP8MIAD-28AUSX-NCV is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments. In the darkest environments, on board IR illumination kicks in. IP8MIAD-28AUSX-NCV provides clear video capture in both day and night with high definition video output.


The IP8MIAD-28AUSX-NCV when connected to an ANR compatible Network Video Recorder will automatically store video data on the internal memory card when the network is disconnected. After recovery to the network, the NVR automatically retrieves the video data stored on the camera.

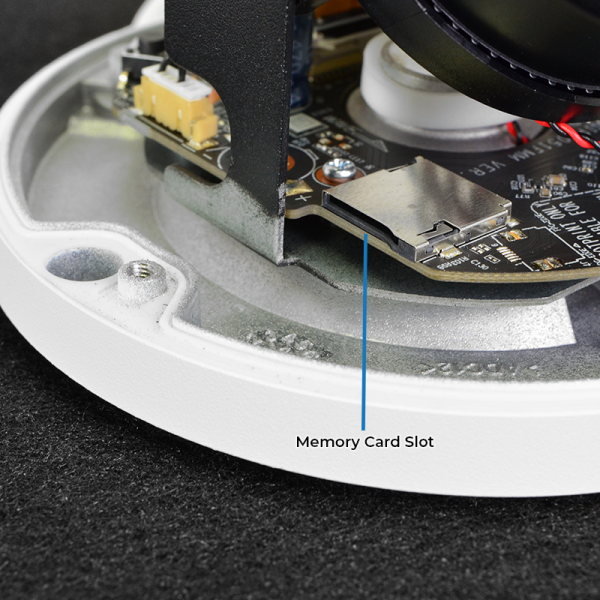

Optional edge recording with an optional memory slot expandable up to 512GB.
Utilizing H.265 advanced video encoding, provides high-quality video while reducing the storage space needed to retain your video events. Users can add their own memory card to take advantage of its edge recording capabilities.


The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

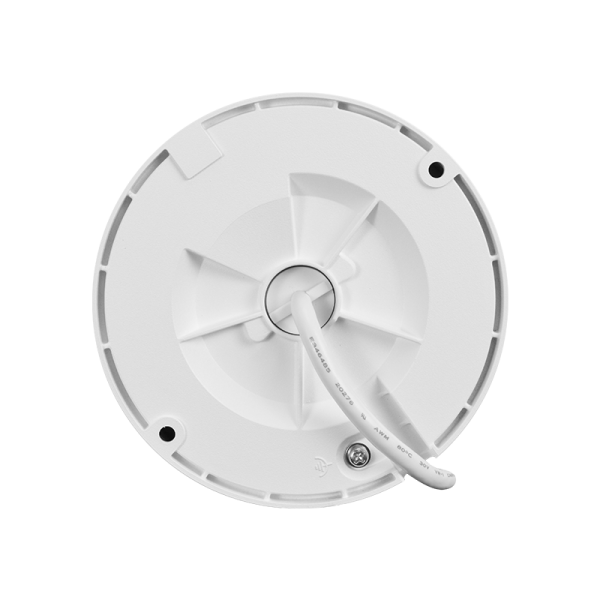

Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust but is also vandal proof resistant rating of IK10. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables and connections.


The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.
Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

Camera |
|
| Max Resolution | 8 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.005 lux ( F1.6, AGC ON) |
| 0 Lux with IR on | |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
Lens |
|
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View | 98.7° (H), 53.9° (V), 103.6° (D) |
DORI |
|
| Detect | 285.1ft |
| Observe | 114.0ft |
| Recognize | 57.0ft |
| Identify | 28.5ft |
Illuminator |
|
| Supplemental Light | IR |
| Illumination Distance (IR) | 98.4 ft |
| Wavelength | 850 nm |
| IR On/Off Control | Auto / Manual |
Video |
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (3840 * 2160), Max 20fps; 5MP (3072 * 1728), Max 30fps; 4MP (2560 * 1440), Max 30fps; 1080P (1920 * 1080), Max 30fps; 720P (1280 * 720), Max 30fps; |
| Sub Stream: 1080P (1920 * 1080), Max 30fps;720P (1280 * 720), Max 30fps; D1 (720 * 576), Max 30fps; 640 * 360,Max 30fps; 2CIF(704 * 288), Max 30fps; | |
| CIF(352 * 288), Max 30fps; | |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual Streams |
Image |
|
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
Events |
|
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Cross Line (based on Human Body Detection), Intrusion (based on Human Body Detection) |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
Audio |
|
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 KHz |
Storage |
|
| Edge Storage | Memory Card Slot up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Network |
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | Optiview VMSN, Optiview VMSN Mobile, Optiview Cloud VCS |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Interface |
|
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
Certification |
|
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) |
| FCC (FCC 47 CFR part15 B) | |
| Safety | CE LVD (EN 62368-1) |
| UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| IK10 (IEC 62262) | |
General |
|

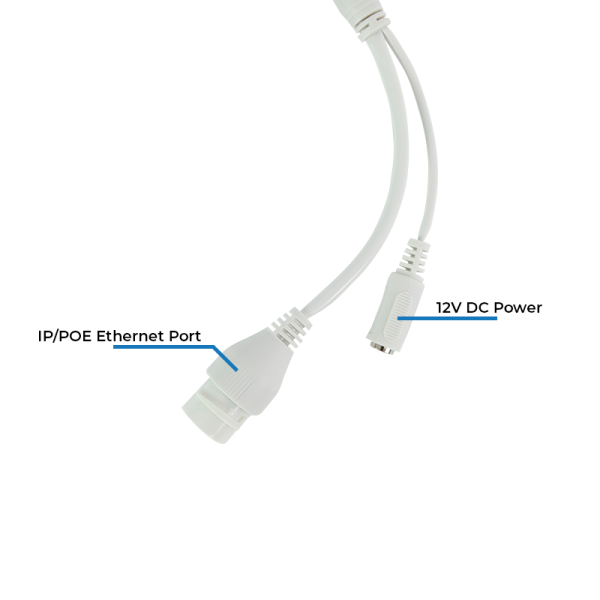

| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 4.9W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | Ø4.4” x 3.3” (Ø x H) |
| Weight | 0.79lb |
| Material | Metal + Plastic |
| Working / Storage Environment | -22 °F ~ 140 °F, Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 13 Languages: |
| English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
| Max Angle of View | |
|---|---|
| Audio | |
| Compliance | |
| Additional Features | ANR, Edge Recording, Memory Card Slot, 512GB Memory Card Slot |
| Intelligent Features | Cross Line, Human Detection, Intrusion, Ultra Motion Detection |
| Max IR Distance | |
| Lens Type | |
| Minimum Color Illumination | |
| Resolution | |
| Product Series | |
| Camera Types / Style | |
| Technology | |
| Vandalproof Rating | |
| Wide Dynamic Range | |
| Weatherproof Rating |
