CAS-DSS-U – Universal Door Strike
Universal Strike
Low Profile
1,000lb Jaw strength
UL listed
CATEGORIES: Access Control

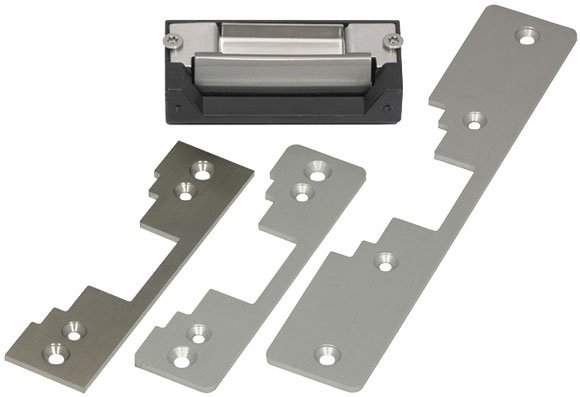

The CAS-DSS-U is a universal door strike that can be used with almost any cylindrical locking system on wood, aluminum, or metal doors. The kit includes (3) different faceplates which make it easier to install the CAS-DSS-U on different door frame types. The strike fits right or left-hand doors and is powered by a solenoid. Kit also includes trim plate to hide gaps in installation.
| Operating Voltage | 12 or 24 VDC ±15% |
| Operating Temperature | 14 – 113°F |
| Operating Humidity | 85%± 15% |
| Aluminum Dimensions | 4-7/8″ x 1-1/4″ (124mm x 32mm) |
| Hollow Metal Dimensions | 4-7/8″ x 1-1/4″ (124mm x 32mm) |
| Wood Dimensions | 715/16″ x 17/6″ (202mm x 37mm) |
| Access Control |
|---|
