Products > CAS-PXPVA – Vandalproof Proximity Reader

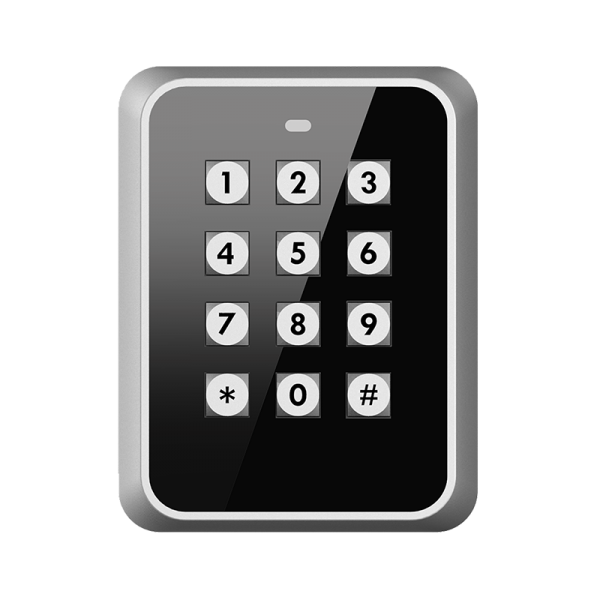

CAS-PXPVA – Vandalproof Proximity Reader

Proximity Reader
Keypad
IP55 Weatherproof
IK08 Vandalproof

Login to view price
    SKU: CAS-PXPVA
    CATEGORIES: Access Control
    System
    Main Processor 8 Bit
    Card Reader
    Reader Format 125Khz
    Read Range 6-8cm (max)
    Response Time < 0.1s
    Function
    Tamper Alarm Yes
    Waterproof Rating IK08
    Interface

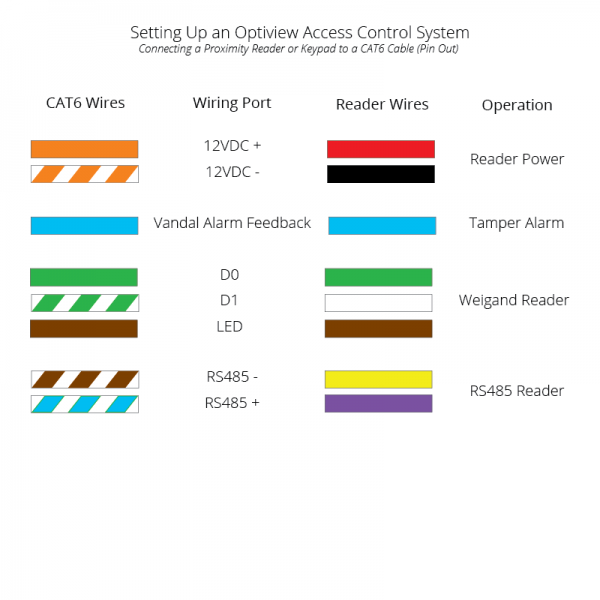

    To Controller RS485, Wiegand34
    General Specifications
    Keyboard 12-Key (0-9, *, #) – Number (5) is Braille
    LED Indicator Blue backlight
    Beep Tone Buzzer
    Ingress Protection IK08, IP55
    Power Supply 9 – 15VDC / 100mA
    Working Environment -22°F ~ 140°F
    Working Humidity ≤95%
    Dimensions (W x D x H) 4.34″ x 3.4″ x 1.1″
    Weight Approximately 1.1 lbs
    Helpful Links

    Sleek surface-mount vandalproof proximity reader and keypad for access control systems offered by Optiview.

    Features
    • Support RS485, Wiegand34 protocol(Wiegand 26 optional)
    • 125KHz
    • All-metal buttons with blue backlight
    • Red and Green indicator LEDs
    • Watch dog function ensure device free from halting
    • Surface mounted installation
    Access Control

    SKU: CAS-PXPVA Category: Tag:
