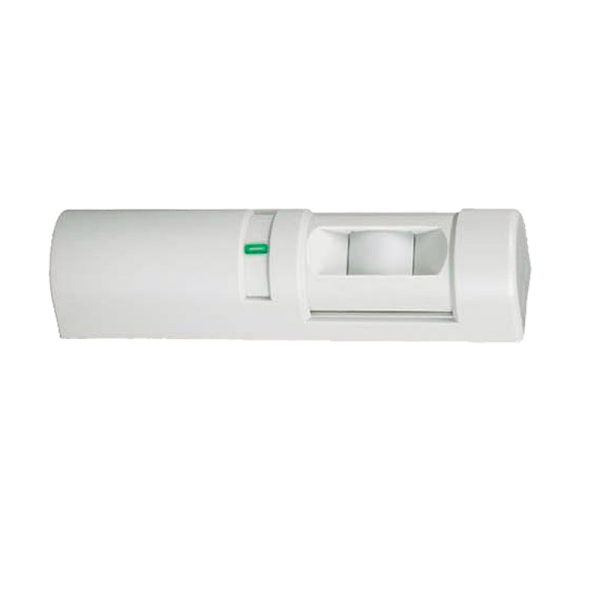

DMOTION REX Sensor

• Power Requirements: 12 or 24 VAC or VDC, 26 mA @ 12 VDC
• Relay Output: Two Form Contacts
• Relay Latch Time: Adjustable to 60 seconds
• Relay Mode: Programmable retrigger or non-retrigger mode
• Power Loss Default: Programmable Fail Safe or Fail Secure modes
• Dimensions: 1.5 H by 6.25 W by 1.5 D. / 3.8 cm H., 15.8 cm W., 3.8cm
• Coverage: 8 ft. by 10 ft. / 2.4 m by 3 m
• Pattern Pointability: ±14° Vertical

• Product PDF Spec Sheet – Download

This motion sensor is specifically designed for Request-to-Exit (REX) applications. It also detects motion in its coverage area and signals an access control system or door control device.

• Single or Double Door Use
• Wall and Ceiling Mountable
• 12 or 24 AC or DC Operation
• Up to 60 Second Adjustable Latch Time
• Selectable Fail Safe/Fail Secure
• UL Listed
