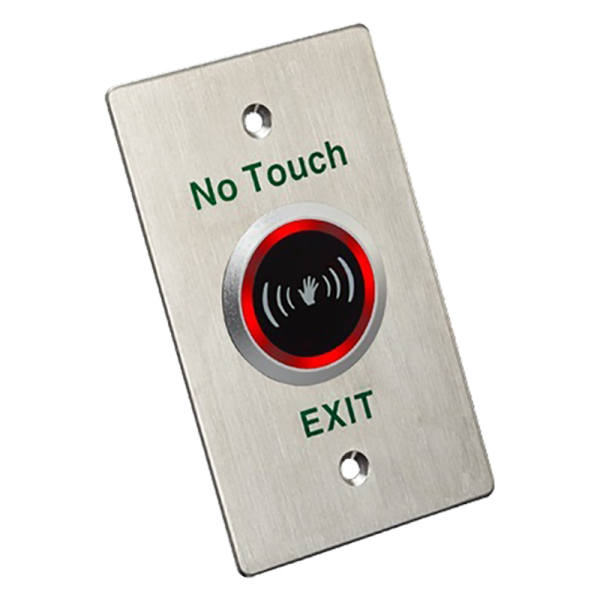

CAS-REQFTD – Adjustable Time Delay Exit Button
Request to Exit
Motion Sensor – 4.5″
1-25sec Time Delay
CATEGORIES: Access Control
| Dimensions | (114mm x 70mm x 25.7mm) |
| Input | 12V DC |
| Contact Rating | 1A @ 30V DC |
| Output Contact | NO / NC / COM |
| Mechanical Life | 1,000,000 tests |
| Installation Type | Hollow Door |
| Detection Range | 4cm – 12cm (Adjustable) |
| Time Delay | 1-25 sec (Adjustable) |
| Operating Temp | 14° ~ 131° F |
| Suitable Humidity | 0~95% relative humidity |
| LED Indicator | Red (locked) / Green (unlocked) |
| Material | Stainless Steel |
| Weight | 0.2kg |
No touch required, request to exit button with IR and built in time delay feature. LED ring around sensor indicates locked (red) and open (green). Infrared detection ranges from 1.5″ to 4.5″ from the center.
| Access Control |
|---|
