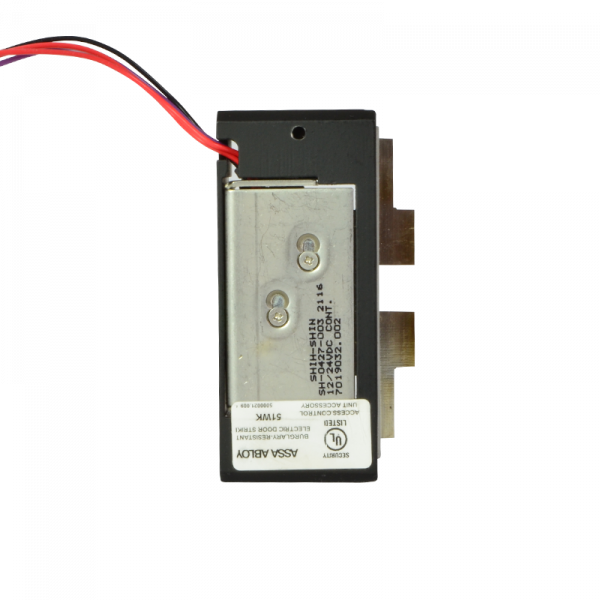

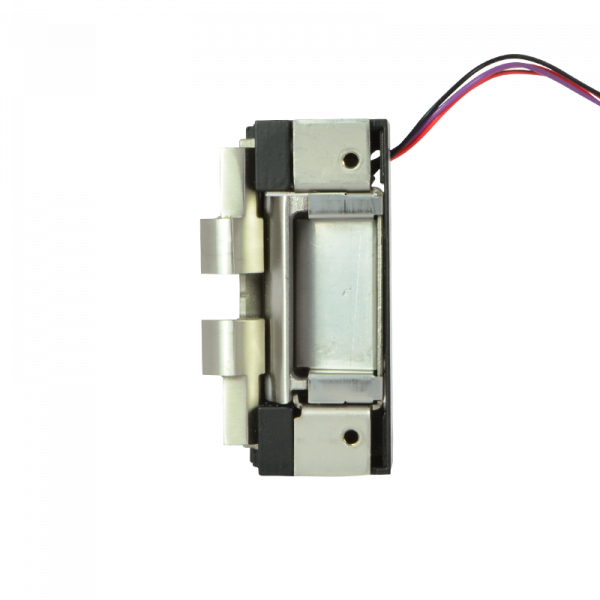

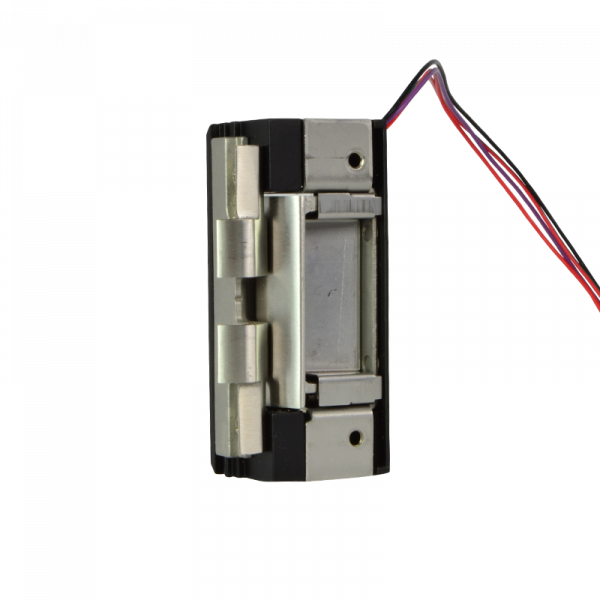

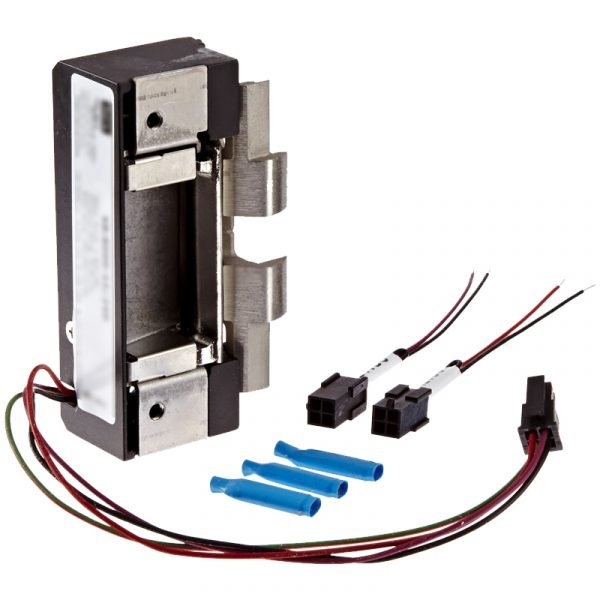

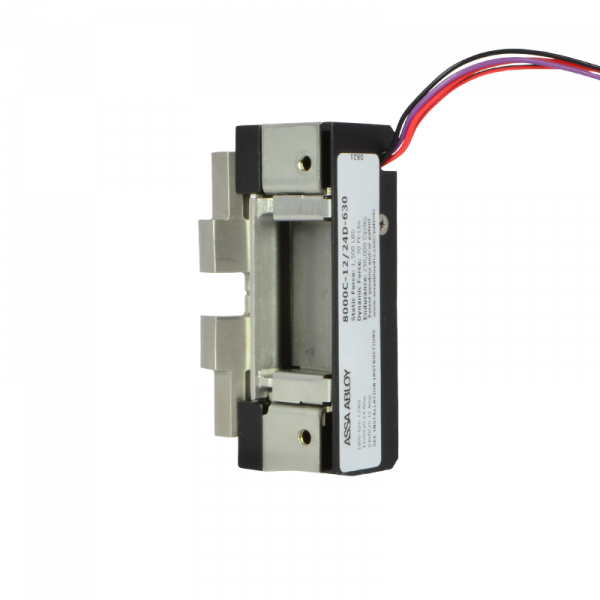

CAS-DSS-NCH – No Cut Door Strike
Universal Strike
Low Profile
1,000lb Jaw strength
UL listed
CATEGORIES: Access Control
Spend less time than ever when installing an electronic door strike for access control systems into aluminum, wood, and hollow metal door frames in office spaces, interior entries, stairwells, and other openings requiring electronic access control. Simply remove the existing strike plate, adjust the vertical alignment to the latchbolt centerline, and install. Works with cylindrical locksets up to a 5/8″ throw latchbolt.
Features & Certifications
- No cutting required
- Vertical adjustability to accommodate
door sag and misalignment - Tamper resistant
- Non-handed
- Internally mounted solenoid
- Set to either Fail Safe or Fail Secure
- Dual voltage 12/24 VDC
- 240 mA at 12VDC/120 mA at 24 VDC
- ANSI/BHMA, A156.31 Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS Compliant
Frame Application |
|
| Hollow Metal | Yes |
| Wood | Yes |
| Aluminum | Yes |
| No-Cut | Yes |
| Vertical Adjustment | Yes |
| Horizontal Adjustment | No |
| Cylindrical Locksets | Yes |
| Mortise Locksets | No |
| Accommodates | 1/2″ – 5/8″ cylindrical latchbolt (5/8″ with 1/8″ door gap) |
| Strike Body Depth | 1-1/16″ |
| Strike Body Width | Decreased to 1-7/16″ to increase frame compatibility |

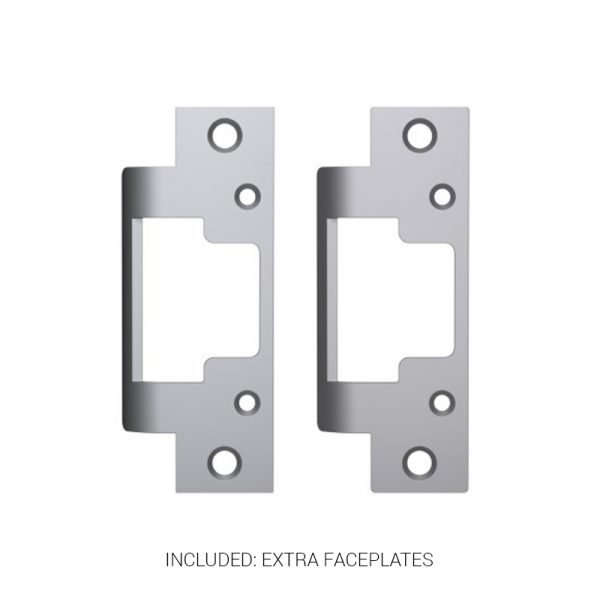

| Faceplate Options | 4-7/8″ x 1-1/4″ for use with cylindrical locksets, or cylindrical locksets in ANSI metal jambs. For use with latchbolts up to 5/8″ throw Includes universal mounting tabs. |
Holding Force |
|
| Static Strength | 1,500 lbs |
| Dynamic Strength | 70ft-lbs |
Electrical |
|
| 12VDC Current Draw | 240mA |
| 24VDC Current Draw | 120mA |
| Dual Voltage 12/24VDC Continuous Duty | Yes |
| Field Selectable (Fail Secure / Fail Safe) | Yes |
Specifications |
|
| UL1034 Burglary Resistant Listed (Indoor) | Yes |
| UL1034 Burglary Resistant Listed (Outdoor) | Yes |
| UL 294 Listed | Yes |
| UL 10C Fire Rated – Class A, 3 Hour Single Door | No |
| RoHS Compliant | Yes |
| Cycle Testing | 500,000 cycles |
| Finish | Satin Stainless Steel |
| Monitoring Type | Latchbolt Status Only |
| Warranty | 5 Years |
| Access Control |
|---|
