8MP IP Armor Ball
Motion Detection
98ft IR Range
Built in Mic
IP67
Product available as supplies last.
Capture HD video footage with 8MP IP 2.8MM fixed lens with a maximum aperture of F2.0.
High-powered night vision with a minimum illumination of 0.04 LUX.
Digital Wide Dynamic Range or (DWDR) gives this camera the capability to handle brighter and darker conditions.
All-metal aluminum housing for indoor and outdoor installations.
The IP8MIAB-28-AS comes with a built-in microphone to help you get even more data from every device.

The IP8MIAB-28-AS is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments. In the darkest environments, on board IR illumination kicks in. The IP8MIAB-28-AS provides clear video capture in both day and night with high definition video output.
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.


The IP8MIAB-28-AS comes with a built-in mic to help give you even more protection than a traditional still video.
Motion detection enables the IP8MIAB-28-AS to initiate recording and alarm triggering when motion is detected in the scene enhancing surveillance efficiency and effectiveness.
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading digital wide dynamic range (DWDR) technology. For applications with both bright and low lighting conditions that change quickly, Digital WDR optimizes both the bright and dark areas of a scene at the same time to provide usable video.


Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables and connections.
Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

Camera |
|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 16 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.04 Lux @ F2.0 (Color, 30 IRE) |
| 0.004 Lux @ F2.0 (B/W, 30 IRE) | |
| 0 Lux (Illuminator on) | |
| S/N Ratio | >56 dB |
| Illumination Distance | 98.43 ft IR |
| Illuminator On / Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED) |
| Pan / Tilt / Rotation Range | Pan: 0°–360° |
| Tilt: 0°–78° | |
| Rotation: 0°–360° | |
Lens |
|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 105°; V: 56°; D: 125° |
| Iris Control | Fixed |
| Close Focus Distance | 3.28 ft |
| DORI Distance | Detect: 245.08 ft |
| Observe: 98.10 ft | |
| Recognize: 48.88 ft | |
| Identify: 24.61 ft | |
Video |
|
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps |
| H.265: 12 kbps–8192 kbps | |
| Stream Capability | 2 streams |
| Video Frame Rate | Main stream: |
| 3840 × 2160 (1 fps–15 fps) | |
| 2688 × 1520 (1 fps–25/30 fps) | |
| Sub stream: | |
| 704 × 576 (1 fps–25 fps) | |
| 704 × 480 (1 fps–30 fps) | |
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | |
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Day / Night | Auto (ICR) / Color / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0° / 90° / 180° / 270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Audio |
|
| Built-in Mic | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
Alarm |
|
| Alarm Event | Network Disconnection; IP Conflict; Illegal Access; Motion Detection; Video Tampering; Audio Detection; Security Exception |
Network |
|
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone |
| User / Host | 6 (Total bandwidth: 48 M) |
| Storage | FTP |
| Browser | IE, Chrome, Firefox |
| Management Software | Optiview VMX, Optiview VMX Mobile, Optiview Cloud VCS |
| Mobile Client | iOS; Android |
Certification |
|
| Certifications | CE-LVD: EN62368-1 |
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |
| FCC: 47 CFR FCC Part 15, Subpart B | |
Power |
|

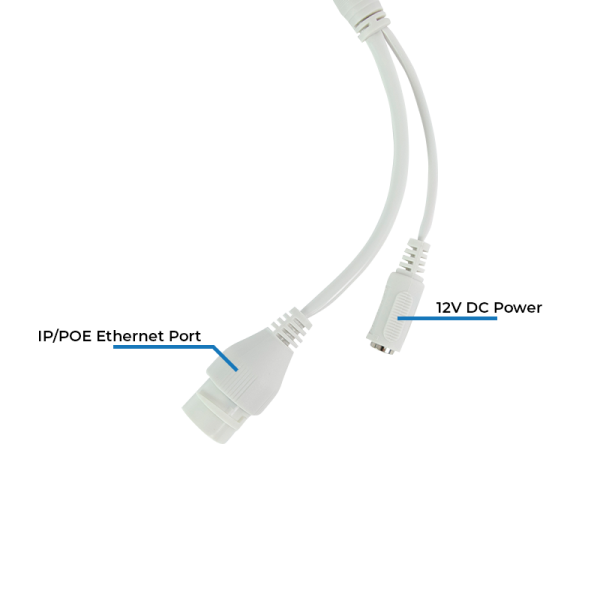

| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12V DC); 3.1 W (PoE) |
| Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 4.6 W (12V DC); 5.6 W (PoE) | |
Environment |
|
| Operating / Storage Temperature | –40 °F to 131 °F |
| Operating Humidity | ≤95% |
| Protection | IP67 |
Structure |
|
| Casing Material | Metal |
| Product Dimensions | 3.4" × Ø3.70" |
| Net Weight | 0.71 lb |
| Gross Weight | 0.95 lb |
