WPNVR16IXL-LCD

16 Channel 16 PoE Embedded NVR
12″ LCD Monitor
2 x Thermostat / Fan Control
Insulation
NEMA3 Aluminum Enclosure

SKU: WPNVR16IXL-LCD
CATEGORIES: Weatherproof

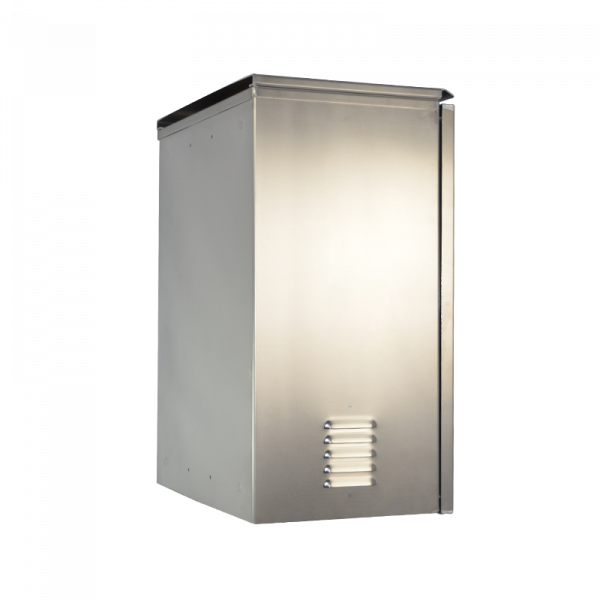

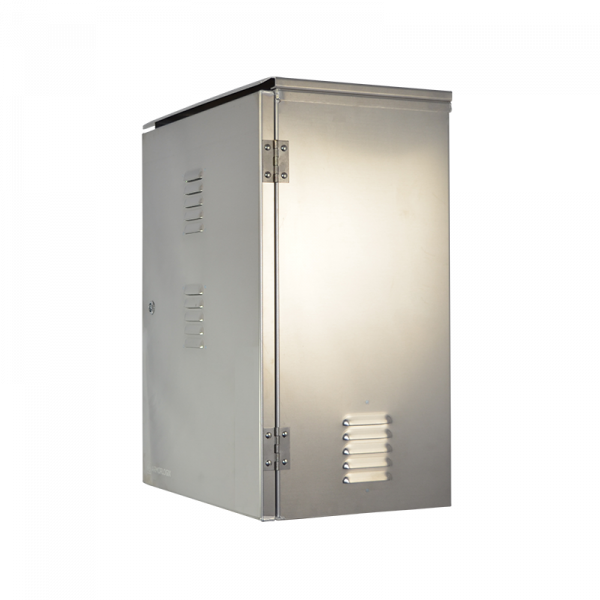

Enclosure Specifications
Enclosure Material 5052 Aluminum
Enclosure Color Silver / Metalic
Voltage 120V AC (Power Strip)
Mounting Plate Material Aluminum
Mounting Plate Dimensions 19″ × 25″
Weight (Enclosure Only) 54 lbs
Outside Dimensions 22″ x 27.9″ x 14.2″
Cable Feed 2 x 1/2″ Weatherproof Cable Glands
Ratings NEMA 3
Embedded NVR Specifications
System
Main Processor Quad-core Processor
Operating System Embedded LINUX
Audio & Video
IP Camera Input 16 Channel
Two-Way Talk Supported
Display
Interface 2 x HDMI, 2 x VGA
Resolution HDMI up to 3840 x 2160
VGA up to 1920 x 1080
Decoding 4ch @ 8MP (30fps), 16ch @ 1080P (30fps)
Multi Screen Display 1 / 4 / 8 / 9 / 16
OSD Camera Title, Time, Camera Lock, Motion Detection, Recording
Recording
Max Bit Rate 320Mbps Maximum Throughput
Compression Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Resolution 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / D1 / etc.
Bit Rate 16Kbps ~ 20Mbps per Channel
Record Mode Manual, Schedule (Regular, Motion Detection, Alarm, IVS), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
Alarm In / Out 16ch / 6ch
Auxiliary Interface
USB 3 x USB Ports (2 Rear 3.0, Front 2.0)
RS232 1 Port (PC Communication & Keyboard)
RS485 1 Port (PTZ Control)
Network
Interface 1 x RJ-45 Port (1000Mbps)
PoE 16 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P
Max User Access 128 Users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 4 SATA III Ports, Up to 10TB each HDD
eSATA 1 x eSATA
Playback & Backup
Sync Playback 1 / 4 / 9 / 16
Search Mode Time / Date, Alarm, MD and Exact
Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device / Network
AI Search Face Detection, Face Recognition, People Counting, Heat Map, ID+ / Intelligent Motion Detection+ (People / Vehicle)
General
Power Supply Single, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption NVR < 17.5W (w/o HDD)
PoE Max 25.5W for single port. 150W total rated power, 80% control for protection
Fan Smart Fan, Automatically adjusts running speed
Operating Conditions 14°F ~ 131°F, 86 ~ 106kpa
Storage Conditions -4°F ~ 158°F, 0 ~ 90% RH
Dimensions (NVR only) 1.5U / 17.3” x 16.2” x 3.0”
Net Weight (NVR only) 10.3lb (without HDD)
Gross Weight (NVR only) 15.4lb (without HDD)

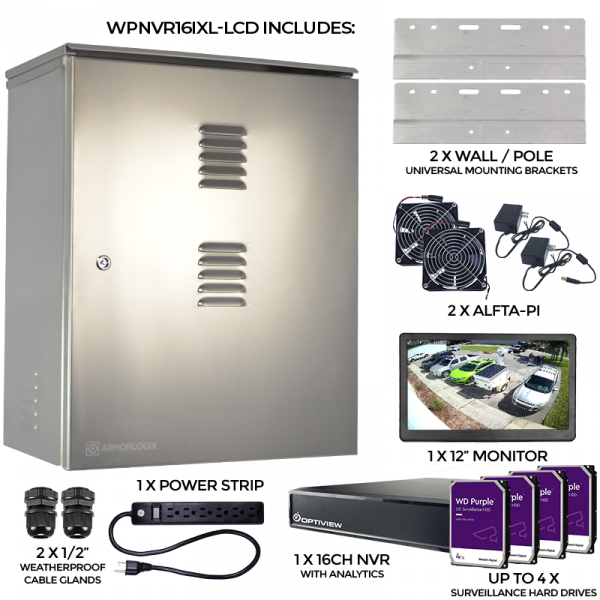

Features
  • 16 Channel Embedded Network Video Recorder (NVR16P16-4I)

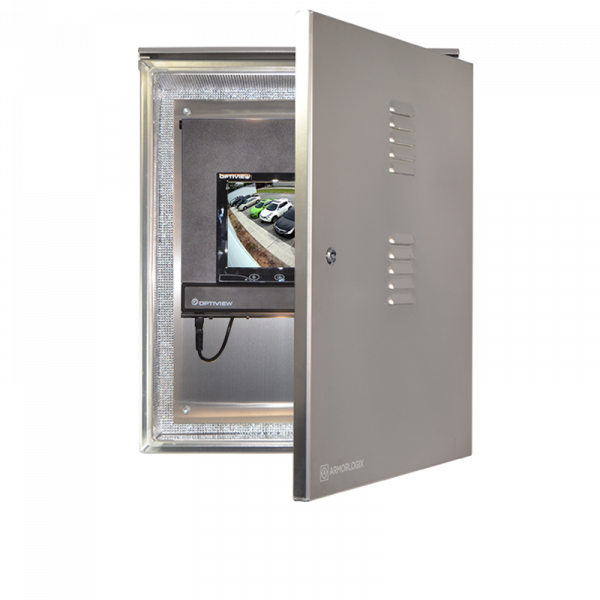

  • 12″ LCD Monitor
  • 5052 Aluminum Enclosure

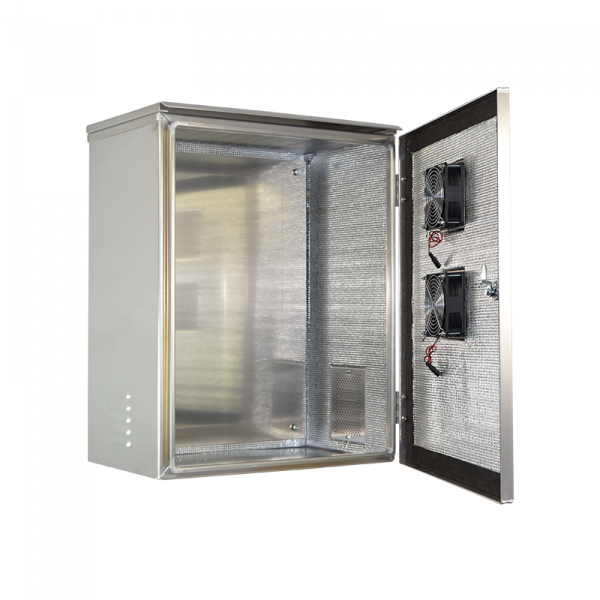

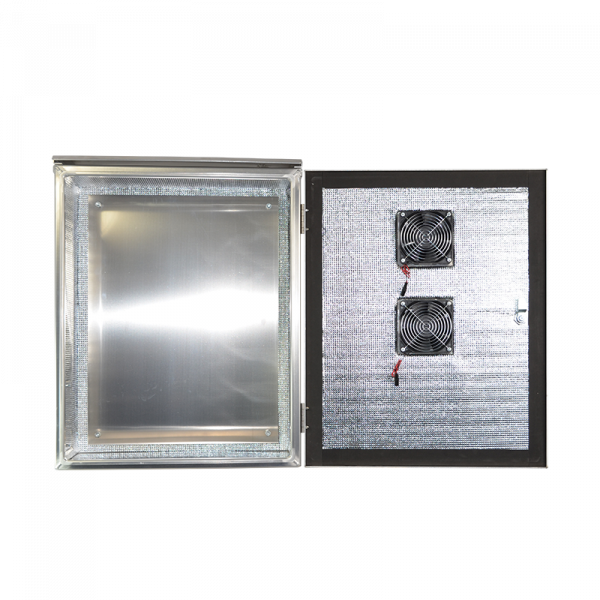

  • Fan with Thermostat Control
  • 6 Outlet Power Supply
  • Includes Optiview VMS software
  • VMS allows viewing of multiple Weatherproof DVR Solutions (download)
  • Surveillance rated hard drives for video storage

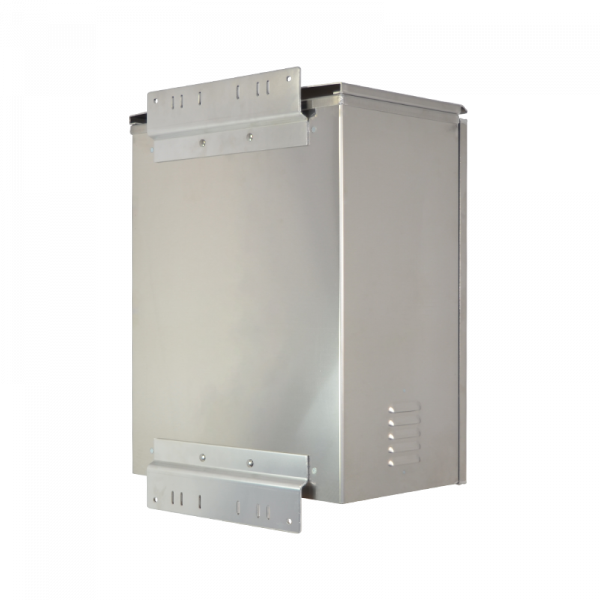

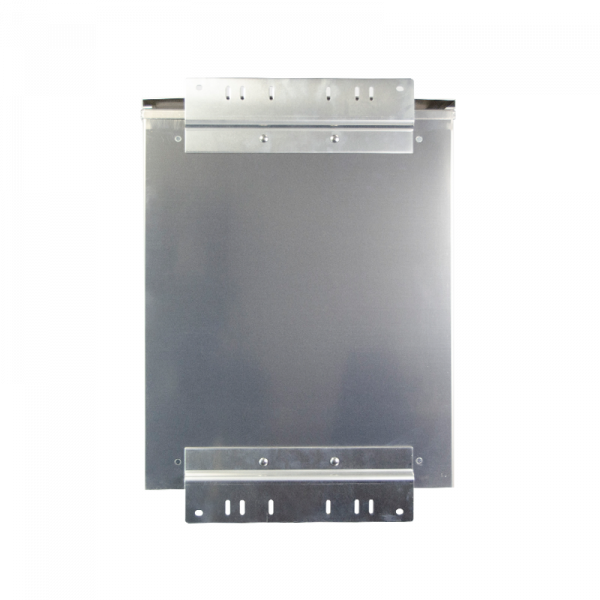

  • Universal Mounting Brackets (included)
hard drives

4TB, 30TB
