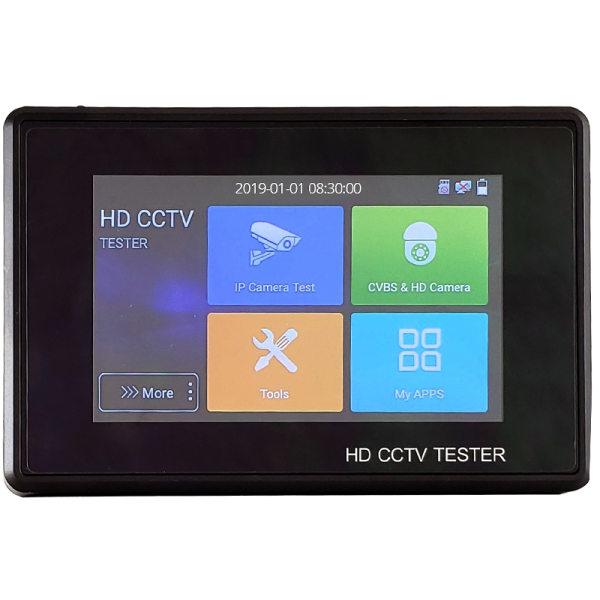

TESTMON-DQ

Test HD (CVI / AHD / TVI ), Analog and IP
4″ Screen + Wrist Design
3A Power Output
H.256 / H.264

Login to view price
    SKU: TESTMON-DQ
    CATEGORIES: Accessories
    Signal System NTSC / PAL (Auto-Selecting)
    Display 4.3 inch LCD display with capacitive touch screen
    Resolution 800 x 480
    LCD adjust Adjustable brightness, contrast, color of LCD
    Video Input / Output 1 channel BNC input & 1 channel BNC looped output 1 channel BNC HD-over-Coax input LAN input for IP
    Network Test FTP Server, Static IP address, DHCP, simultaneously test different segments´ IP cameras, Network bandwidth testing
    Video Level Test Video signals measured in IRE or mV
    USB Power Output USB 5V 2A power output to mobile phone
    Power Adapter 5V DC, 2A input supply
    Power output 12V DC, 2A supply
    Audio input 1 channel Audio input 1 channel Audio output (connect to headphones)
    Communication RS232, RS422 simplex and RS485
    Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
    Power Saving Features Sleep mode, Battery level indicator
    PTZ Address Scanning Scan for local PTZ address over data cables
    Rechargeable Battery 7 hours charge, work for 16 hours
    Battery 1 pcs Lithium Ion Polymer Battery; 7.4V DC, 5000mAh
    Video Display Displays video signal from analog input
    Video Signal Generation Color bar generator for monitor testing
    UTP Cable Test Checks connections of UTP cables
    PTZ Protocol Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, TeleEye etc.
    PTZ data Capture Reads and displays commands sent from controllers
    Image 4x Zoom 4x Zoom image display and video out
    Photograph Snapshot and save image as JPG file and screenshot
    Video Record Video Recording & Playback from SD card
    Port Flicker Find connected PoE port quickly
    IP Scan Found out connected IP camera or network equipment’s IP address
    Link Monitor Checks whether IP address is occupied
    Ping Testing Network and IP Camera Ping Testing
    PoE Tester PoE Voltage testing, PoE port flicker, PoE link monitoring
    Night LED Built-in LED lamp
    SD Card 4G Micro SD card – Supports Micro SD card for recording. Max support 32G SD card
    Dimension 11.4 x 9.4 x 3.9″ (290mm x 240mm x 100mm)
    Gross Weight – box 3.9 pounds (1780g)
    Features
    • 4.3” LCD Touch Screen (800 x 480)
    • Built in Wifi
    • Test Analog, HD-over-Coax and IP Cameras
    • PoE 24W Power Supply to IP Cameras
    • DC12V 2A Power Output for Cameras
    • USB 5V 2A Power Output to Mobile Phone
    • HDMI Signal Output – Supports 1080P
    • Video level testing
    • UTP cable testing
    • Color-bar generator
    • Audio input testing
    Includes
    • Tester
    • Adaptor (DC12V 2A)
    • Network Cable Tester
    • Polymer Lithium Ion Battery (7.4V DC 5000mAh)
    • BNC Cable
    • RS485 Cable
    • SC / ST connector (only for optical power meter)
    • Output Power Cable
    • Audio Cable
    • TDR Alligator Clamp
    • Safety Cord
    • Tool Bag
    • Manual
    • 4G SD Card
