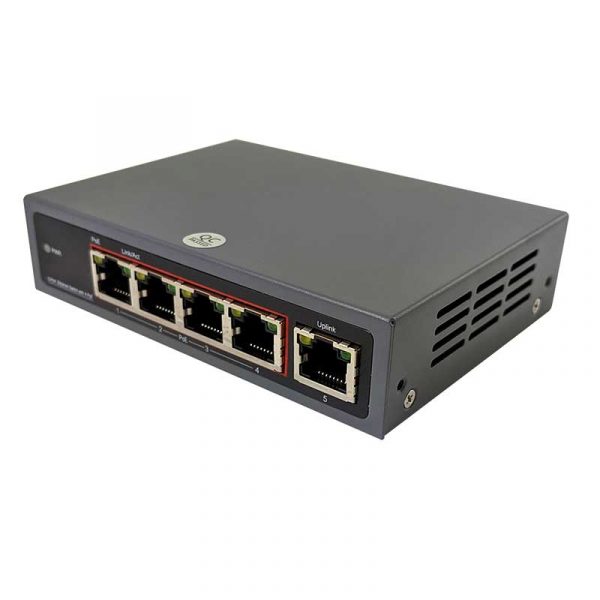

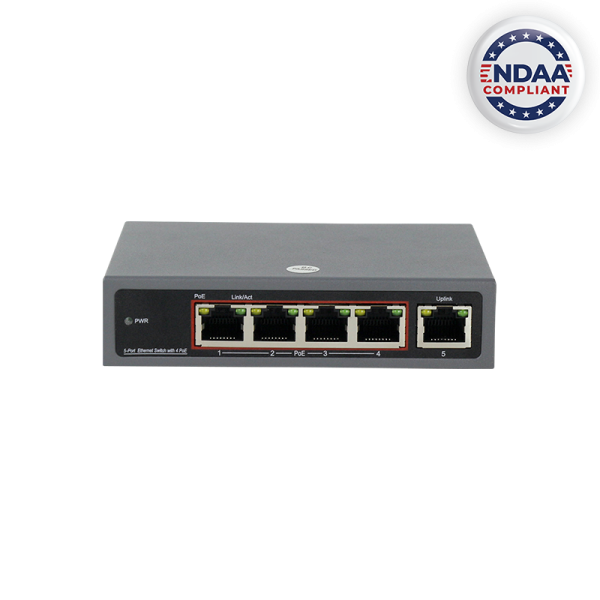

OVPOE4G – 4+1 Port PoE Switch 10/100/1000
4 x 10/100/1000Base-TX
1 x GB Uplink
60W Power over Ethernet
CATEGORIES: Accessories

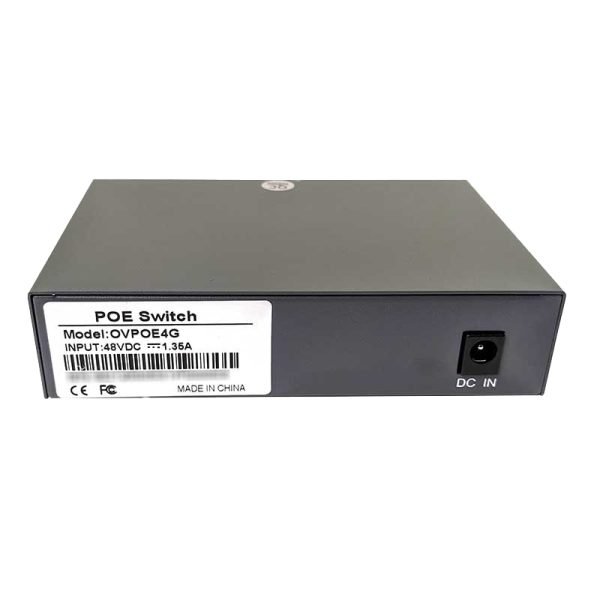

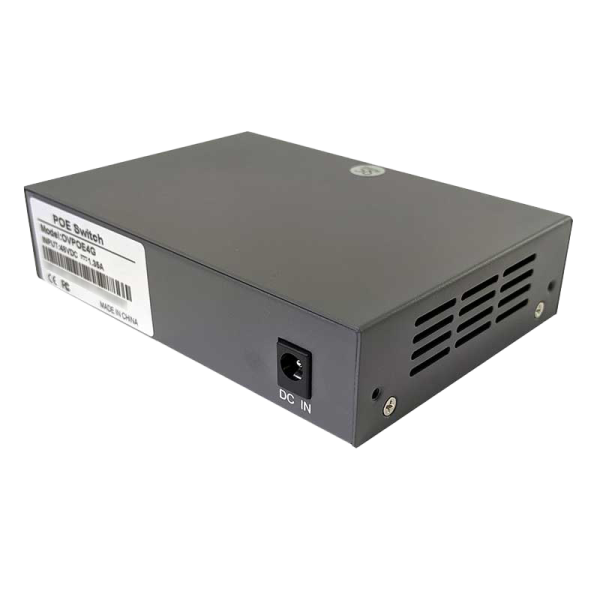

Power |
Power Supply | External Power Adaptor |
| Voltage Range | DC48~57V | |
| Switch Consumption | <5W | |
Ethernet |
Speed | 1~5 Port : 10/100/1000Mbps |
| Uplink: 10/100/1000Mbps | ||
| Transmission Distance | 328ft for RJ-45 | |
Network Switch |
Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3af/at |
| Switching Capacity | 10G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 1,488,000pps for 1000Mbps | ||
| MAC Address | 2K MAC address table | |
Link |
On / Green | The port is connecting |
| Blinks | The port is receiving or transmitting data | |
| Off | The port is not linked successfully with the device | |
| On / Orange | PD is connected | |
| Off | No PD is connected or power forwarding fails | |
| Total Output Capacity | 60W | |
| Output Capacity per Port | Up to 30W per port | |
| PoE Pin Assignment | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
Environment |
Working Temperature | 0~40℃ |
| Storage Temperature | -40~70℃ | |
| Humidity (Non-Condensing) | 0~90% | |
Mechanical |
Dimension | 4.7″ x 3.3″ x 1.1″ |
| Color | Gray |
- PDF Spec Sheet – OVPOE4G
The OVPOE4G PoE switch provides power for regular IP cameras, and IP PTZ cameras, as well as other data and infrastructure. 10/100/1000Gbps speeds ensure high definition video quality.
Features:
- Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
- 5 x 10/100/1000Base-TX ports
- Provides 4 x PoE Injector and 65W power adapter
- Total output capacity of 60W and 30W per port
- High back-plane bandwidth 10Gbps
- IEEE802.3x Flow control
- EMI standards complies with FCC, CE class B

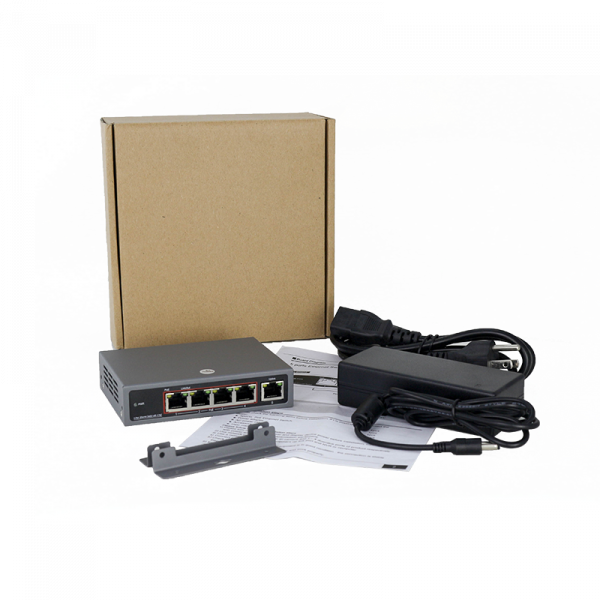

Includes:
- 4-port multi-functional intelligent network line-powered switch
- Power cord
