Products > OV4G Cellular Modem – 4G/LTE Cellular Modem with Dual Sim Slots

OV4G Cellular Modem – 4G/LTE Cellular Modem with Dual Sim Slots

Name: OV4G Cellular Modem – 4G/LTE Cellular Modem with Dual Sim Slots
SKU: OV4G
Availability: InStock

4G Cellular
10/100/1000
Simultaneous Dual-Band (2.4GHz / 5GHz)
Optional GPS

package

Clear

SKU: OV4G
CATEGORIES: Accessories

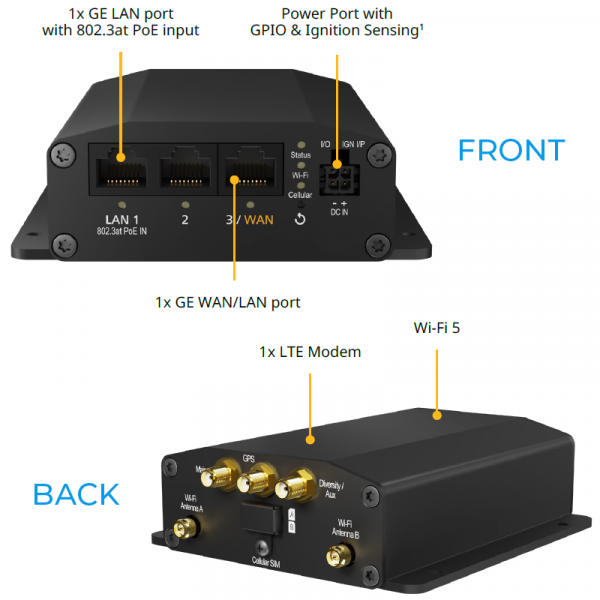

WAN Interface	1x 10/100/1000M Ethernet1 1x Embedded Cellular Modem with Redundant SIM Slots
LAN Interface	2x 10/100/1000M Ethernet
Wi-Fi Interface	Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 5, 2X2 MIMO Wi-Fi WAN1 and/or AP
SpeedFusion Features	Hot Failover / WAN Smoothing
Number of PepVPN / SpeedFusion Peers	2 / 5
Feature	GPIO, Ignition Sensing
Router Throughput	300Mbps
PepVPN Throughput (no encryption)	80Mbps
PepVPN Throughput (256-bit AES)	20Mbps / 60Mbps
Recommended Users	1 – 60
Cellular Data Rate (Downlink/Uplink)	CAT-7: 300 Mbps/150 Mbps CAT-6: 300 Mbps/50 Mbps CAT-4: 150 Mbps/50 Mbps
Antenna Connectors	2x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector
Power Input	Power Port: 10V – 30V DC AC Adapter: AC Input 100V–240V / DC Output 12V Power over Ethernet 802.3at
Power Consumption	13W (nominal), 18W (max.)
Dimensions	5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm
Weight	0.95 pounds / 430 grams
Operating Temperature	-40° – 149°F / -40° – 65°C
Humidity	15% – 95% (non-condensing)
Certifications	FCC, CE, RoHS

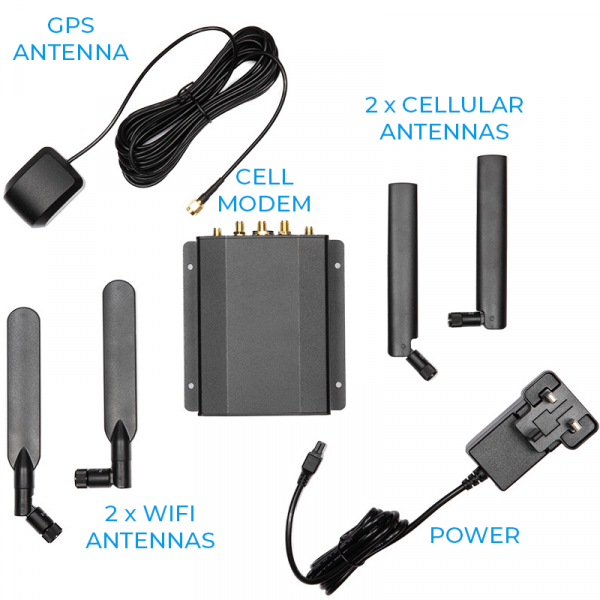

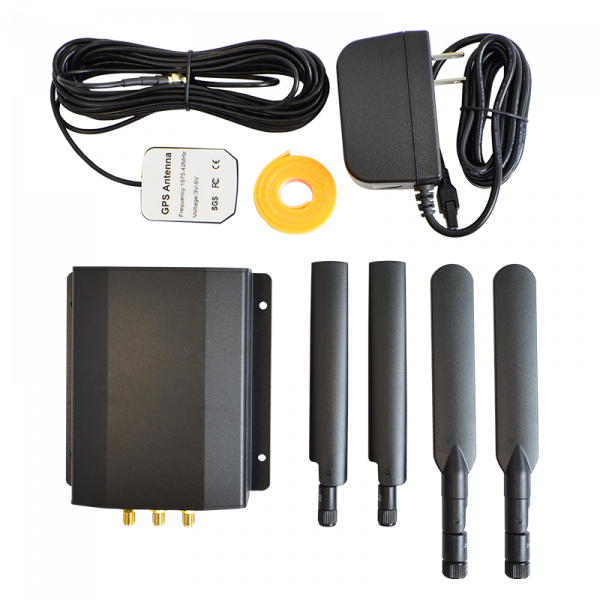

Package Contents	1x Cellular Modem 2x LTE Antennas 2x Dual Band Wi-Fi Antennas 1x GPS Active Antenna 1x 12V 2A 4pin Power Supply
SIM Card Size	Nano-SIM
Compatible Networks (US)	AT&T, Verizon, T-Mobile
Warranty	1-Year Limited Warranty

PDF Spec Sheet – Coming Soon

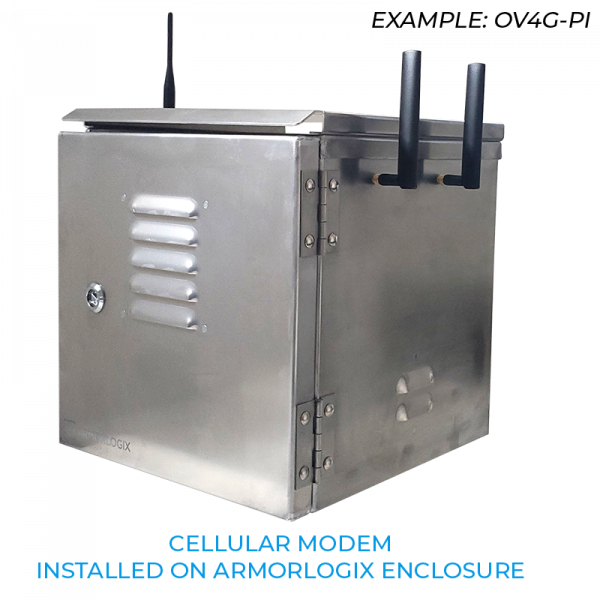

package	OV4G, OV4G + Installation Kit, OV4G Installed in Enclosure
Accessories	PoE & Switches & Wireless
Compliance	NDAA

SKU: OV4G Categories: Accessories, NDAA Compliance
