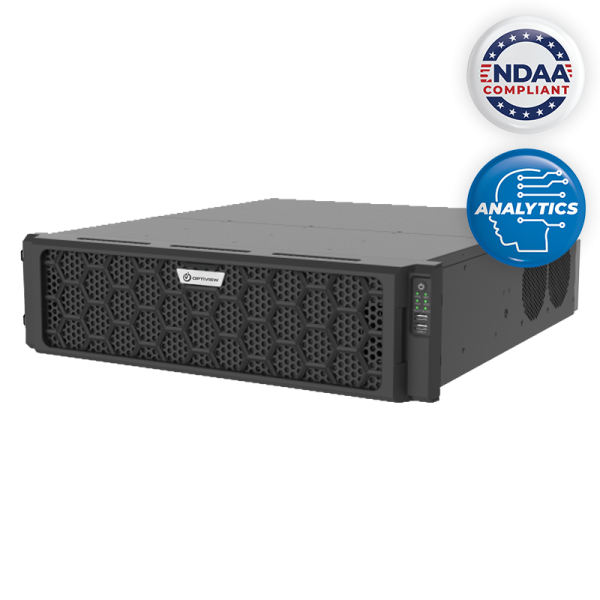

NVR64-16E-NCV – 32MP 8K 64 Channel 3U NVR w/ Analytics

Smart Intrusion Prevention

Utilizing machine learning and data intelligence, Smart Intrusion Prevention or SIP helps reduce false-alarm rates by allowing you to set up Cross Line Detection, Intrusion Detection, as well as Enter / Leave Area, all which can do any combination of human/vehicle/non-motor vehicle recognition. Smart Intrusion Prevention’s detection rate of >95% helps you improve your perimeter protection, reduce false alarms while keeping you informed about the events that mater the most to you.

Ultra Motion Detection

Utilizing machine learning and data intelligence, Ultra Motion Detection or UMD helps you filter out objects based on motion detection, detecting motion of specified object types in the image, and trigger an alarm when such motion is detected. UMD supports two different object types: Person and Vehicle. UMD provides a detection rate of >90% up to 49ft and is more efficient than traditional motion detection, further reducing false-alarms. Ultra Motion Detection can be configured to your full screen or specific area(s) for detection.

Face Detection

Analyze and compare face capture snapshots with face detection characteristics and internal face databases. When paired with a face capture IP NCV series camera, access real-time, processing and cataloging of detected faces. Receive instant notifications of triggered alarms by extracting facial features and attributes, comparing them against an existing database or watchlist. Face detection enables quick identification, individual tracking, and can alert when certain attributes meet the configured triggers. Face detection enhances security efficiency and accuracy with proactive monitoring and retrospective searches.

Bandwidth

With a higher throughput of 640Mbps your IP network cameras can record at higher frame rates and resolutions without maxing out.

People Counting

The NVR64-16E-NCV detects and tracks target by using advanced image processing technology and deep learning algorithm. You can draw 4 polygon areas, and count people in each area; When the number of the people in the area is greater than or equal to/lower than or equal to the defined threshold, the alarm will be triggered.

ANR Technology

Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

Crowd Density

With deep learning algorithm, the NVR64-16E-NCV can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.

ULTRA 265 Compression

Utilizing H.265 advanced video encoding, provides high-quality video while reducing the storage space needed to retain your video events. Users can add their own memory card to take advantage of its edge recording capabilities.

Heat Map

Heat map is an intelligent feature that visually represents visitor traffic density using color. This feature helps users understand customer movement patterns within monitored areas. Completely customizable to your unique needs by background update rates, sensitivity, minimum object size for detection, and area. Heat map offers valuable insights for retail analytics, space utilization, and crowd management enabling data driven decision-making for security and operations.

NDAA Compliance

The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.

REMOTE VIDEO SURVEILLANCE

Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.
