4K IP
Capture HD with up to 4K Resolution for Preview and Playback
Up to 4K Recording
4 Channel
Smart Intrusion Prevention
Up to 8TB of Storage
NDAA Compliant
Capture HD with up to 4K Resolution for Preview and Playback
Accurately reduce false alarms with custom zones with human and vehicle detection.
Human and Vehicle detection accuracy enhanced by machine learning reducing false alarms and enhancing security.
Automatic Network Replenishment (ANR) Technology helps provide backup NVR redundancy
View, review, and search through alarm events and display in an easy to use interface

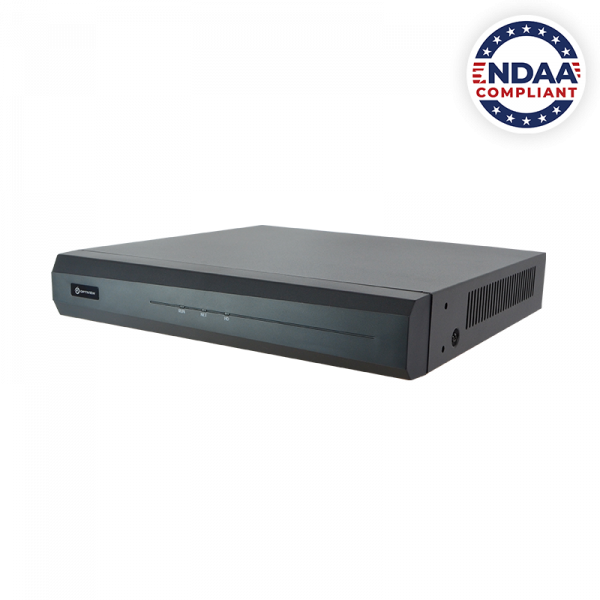

The NVR4P44K-1-NCV is one of Optiview’s NDAA compliant network video recorders and can be paired with any of Optiview’s NCV line of NDAA compliant IP cameras.
Get everything you need for your project at Optiview. In addition to NDAA compliant cameras and recorders, we also carry many other camera surveillance accessory equipment, such as PoE switches, cabling, connectors, and more that are NDAA compliant.
Utilizing machine learning and data intelligence, Smart Intrusion Prevention or SIP helps reduce false-alarm rates by allowing you to set up Cross Line Detection, Intrusion Detection, as well as Enter / Leave Area, all which can do any combination of human/vehicle/non-motor vehicle recognition. Smart Intrusion Prevention’s detection rate of >95% helps you improve your perimeter protection, reduce false alarms while keeping you informed about the events that matter the most to you.


Utilizing machine learning and data intelligence, Ultra Motion Detection or UMD helps you filter out object based on motion detection, detecting motion of specified object types in the image, and trigger an alarm when such motion is detected. UMD supports two different object types: Person and Vehicle. UMD provides a detection rate of >90% up to 49ft and is more efficient than traditional motion detection, further reducing false-alarms.
Network Video Recorders with the ANR function automatically store video data on an IP camera memory card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera & properly indexes it.


Using advanced video encoding, Ultra 265 provides high-quality video while helping reduce the storage space needed to retain your video events. By detecting motion in each frame instead of degrading resolution, Ultra 265 helps you save up to 95% storage space and up to 75% storage cost.

Using advanced video encoding, Ultra 265 provides high-quality video while helping reduce the storage space needed to retain your video events. By detecting motion in each frame instead of degrading resolution, Ultra 265 helps you save up to 95% storage space and up to 75% storage cost.
Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

Video / Audio Input |
|
| IP Video Input | 4-ch |
Network |
|
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
PoE |
|
| Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
Video / Audio Output |
|
| HDMI / VGA Output |
HDMI: 3840×2160 / 30Hz, 1920x1080p / 60Hz, 1920x1080p / 50Hz, 1600×1200 / 60Hz, 1280×1024 / 60Hz,
1280×720 / 60Hz, 1024×768 / 60Hz |
| VGA: 1920x1080p / 60Hz, 1920x1080p / 50Hz, 1600×1200 / 60Hz, 1280×1024 / 60Hz, 1280×720 / 60Hz, 1024×768 / 60Hz |
|
| Recording Resolution | 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output | 1-ch, 3.5mm |
| Synchronous | |
| Playback | 4-ch |
| Corridor Mode Screen | 3/4 |
Decoding |
|
| Decoding format | Ultra 265 / H.265 / H.264 |
| Liveview / Playback | 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Capability | 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30 |
Smart |
|
| VCA Detection by Camera | Smart Intrusion Prevention, Face Detection, Ultra Motion Detection, Human Detection, Vehicle Detection, Non-Motor Vehicle Detection, Intrusion, Cross Line, Enter Area, Leave Area, Audio Detection, Auto Tracking |
| VCA Search | FaceSearch, Behavior Search |
| Smart Intrusion Prevention (SIP), Ultra Motion Detection by Camera | Total 4-ch |
Hard Disk |
|
| SATA | 1 SATA interface |
| Capacity | up to 10TB for each disk |

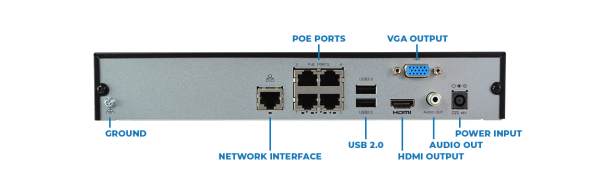

External Interface |
|
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Max Power | Max 30W per port. Max power budget of 54W in total. |
General |
|
| Power Supply | 48V DC |
| Power Consumption: ≤5 W (without HDD) | |
| Working Environment | 14°F ~ +131°F, Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 10.2”×9.4”×1.8 “ |
| Weight (without HDD) | ≤0.98kg (2.16 lb) |
| File Name | Release Date | Resource type |
|
Data Sheet – NVR4P44K-1-NCV |
10/08/2021 | Data Sheet |
| 11/29/2021 |
| Product Series | |
|---|---|
| Technology | |
| Compliance | |
| Hard Drive Size | No Hard Drive, 4 TB (1 x 4 TB), 6 TB (1 x 6 TB), 8 TB (1 x 8 TB) |
| Resolution | |
| Channels | |
| Intelligent Features | Cross Line, Enter Area, Face Detection, Human Detection, Intrusion, Leave Area, Non-Motor Vehicle Detection, Smart Intrusion Prevention, Ultra Motion Detection, VCA Search, Vehicle Detection |
| # of SATA | |
| PoE | |
| Max Bandwidth (Incoming) | |
| RJ45 | |
| Additional Features |
