4MP IP
Capture HD video footage with 4MP IP 2.8MM fixed lens with a maximum aperture of F2.0.
4MP IP Armor Ball Camera
98ft IR
101° View
WDR
Built-In Mic
Capture HD video footage with 4MP IP 2.8MM fixed lens with a maximum aperture of F2.0.
High-powered night vision with a minimum illumination of 0.01 LUX and Smart IR.
Wide Dynamic Range or (WDR) gives this camera the capability to handle brighter and darker conditions.
Automatic Network Replenishment (ANR) Technology helps provide backup NVR redundancy

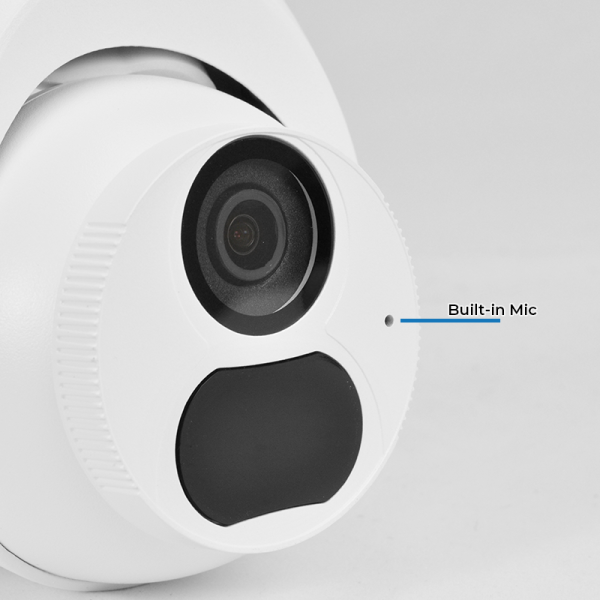

The IP4MIAB-28SX-NCV comes with a built-in microphone to help you get even more data from every device.

The IP4MIAB-28SX-NCV is capable of producing a stunningly clear, colorful video with low illuminance enhancement for darker environments. In the darkest environments, on board IR illumination kicks in. The IP4MIAB-28SX-NCV provides clear video capture in both day and night with high definition video output.
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.


The IP4MIAB-28SX-NCV when connected to an ANR compatible Network Video Recorder will automatically store video data on the internal memory card when the network is disconnected. After recovery to the network, the NVR automatically retrieves the video data stored on the camera.

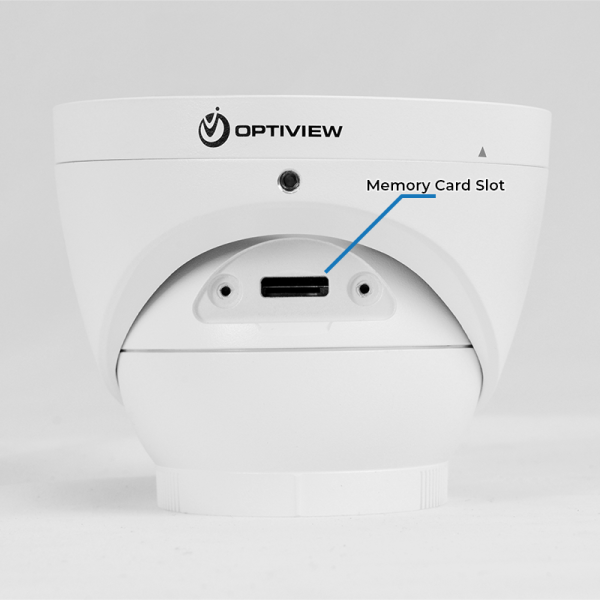

Optional edge recording with an optional memory slot expandable up to 128GB.
The IP4MIAB-28SX-NCV comes with a built-in mic to help give you even more protection than a traditional still video.


Utilizing H.265 advanced video encoding, provides high-quality video while reducing the storage space needed to retain your video events. Users can add their own memory card to take advantage of its edge recording capabilities.

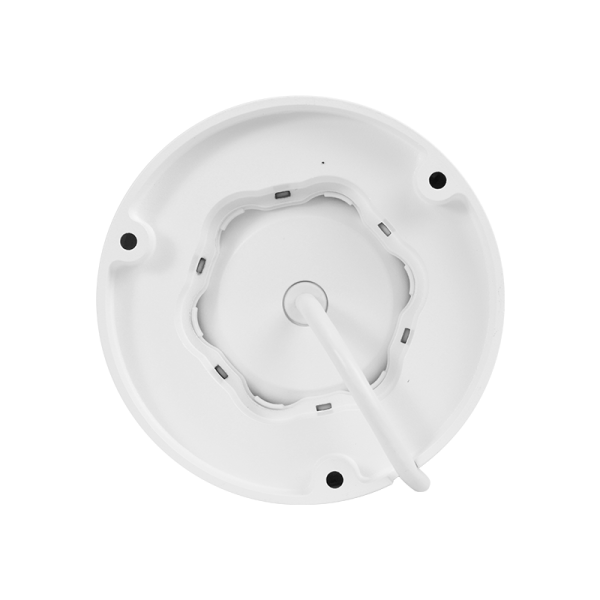

Built for endurance, this all metal housing is rated IP67, which means it is protected from water and dust. Mount this camera anywhere with it’s 3-axis cable management bracket. Additional junction boxes and brackets are available for additional installation options, and help further protect your cables and connections.


The John S. McCain National Defense Authorization Act (NDAA) is a United States federal law which specifies the budget, expenditures and policies of the U.S. Department of Defense. For Fiscal Year 2019, the NDAA Section 889, prohibits the U.S. government from procuring video and telecommunication equipment from certain Chinese companies and their subsidiaries. Some non government projects may require NDAA compliance if federal funding is being used.
Optiview’s powerful video management software allows clients to monitor a live view of their remote security cameras when they are off-site. The on-site DVRs and NVRs can be set up to send alerts to you, the user, when activity is present that allows the user to log-in to live-stream their surveillance system. Equally as important, the remote monitoring software allows Clients to remotely access recorded video and playback without having to be present where the system is located. Now more than ever, the ability to monitor your residential or commercial sites without being physically present is a huge benefit of Optiview’s video management software platforms.

Camera |
|
| Sensor | 1/2.9″, 4.0 megapixel, progressive scan, CMOS |
| Min Illumination | Color: 0.01 lux (F F2.0 AGC ON |
| 0 lux with IR | |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360° |
| Tilt: 0° ~ 75° | |
| Rotate: 0° ~ 360° | |
| S/N | >52dB |
| WDR | 120dB |
Lens |
|
| Lens Type | 2.8mm @F2.0 |
| Iris | Fixed |
| Field of View (H) | 101.5° |
| Field of View (V) | 55.6° |
| Field of View (D) | 111.6° |
DORI |
|
| Detect | 206.69ft |
| Observe | 82.67ft |
| Recognize | 41.33ft |
| Identify | 20.66ft |
Illuminator |
|
| IR Range | 98ft |
| Wavelength | 850nm |
| IR On / Off Control | Auto / Manual |
Video |
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2560 * 1440), Max 25fps; 3MP (2304 * 1296), Max 30fps; 1080P (1920 * 1080), Max 30fps; 720P (1280 * 720), Max 30fps |
| Sub Stream:D1 (720 * 576), Max 30fps; 640 * 360,Max 30fps; 2CIF(704 * 288), Max 30fps; CIF(352 * 288), Max 30fps; |
|
| Video Bit Rate | 128 Kbps~6144 kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
Image |
|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Support |
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
Events |
|
| Basic Detection | Cross Line, Intrusion(based on human body detection), Motion Detection, Tampering Alarm, Audio Detection |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
Storage |
|
| Edge Storage | Memory Card Slot up to 512GB |
| Network Storage | ANR, NAS(NFS) |
Network |
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | Optiview VMSN, Optiview VMSN Mobile, Optiview Cloud VCS |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |
Interface |
|
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
Certification |
|
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) |
| FCC (FCC 47 CFR part15 B) | |
| Safety | CE LVD (EN 62368-1) |
| CB (IEC 62368-1) | |
| UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
General |
|

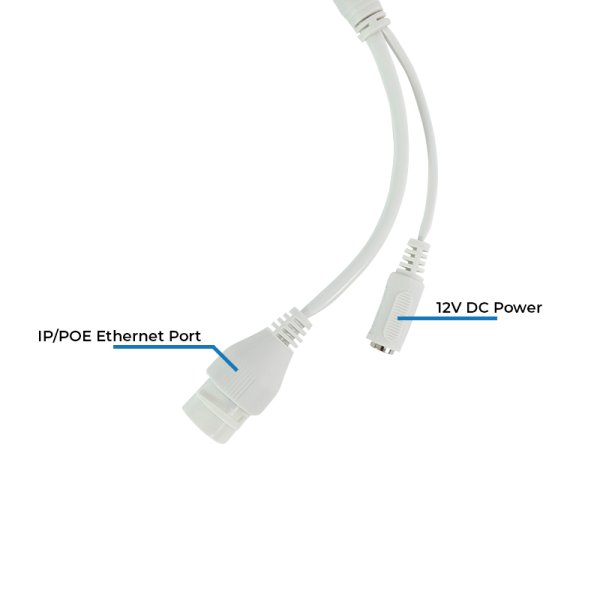

| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.0W | |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Ø4.6” x 3.8” |
| Weight | 0.66lb |
| Material | Metal + Plastic |
| Working / Storage Environment | -22°F ~ 140°F, Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KVs |
| Reset Button | N/A |
| Max Angle of View | |
|---|---|
| Audio | |
| Compliance | |
| Intelligent Features | |
| Max IR Distance | |
| Lens Type | |
| Minimum Color Illumination | |
| Resolution | |
| Product Series | |
| Camera Types / Style | |
| Technology | |
| Wide Dynamic Range | |
| Weatherproof Rating | |
| Additional Features |
