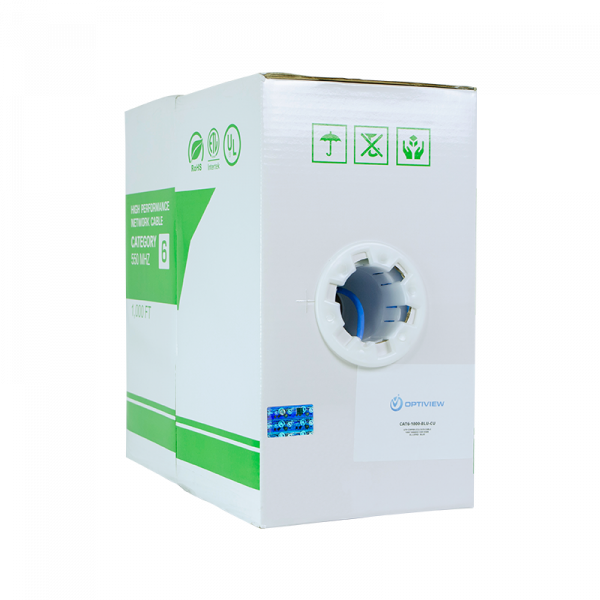

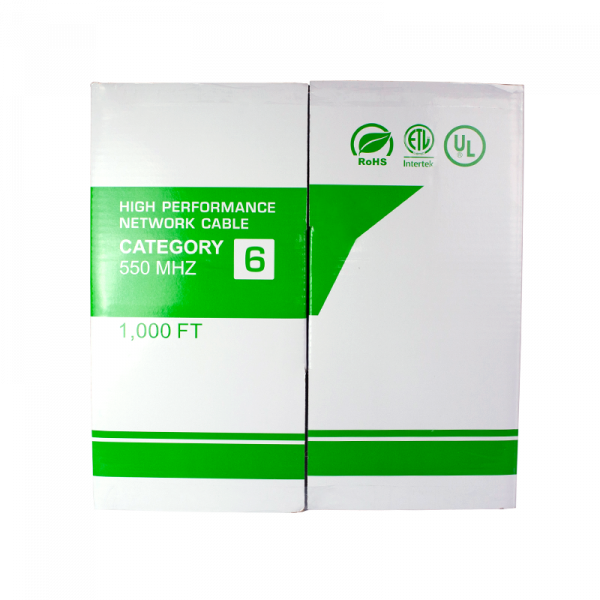

SKU: CAT6-1000-BLU-CU
CATEGORIES: Access Control
CATEGORIES: Access Control
Cable Construction |
|
| Type of Cable | UTP |
| Length per Reel | 1000ft |
| Number of Pairs | 4 |
| Field of Application | Indoor |
| Category | CAT6 |
| Conductor | Material: Bare Copper |
| Size: 23AWG, 1/0.54±0.015 mm | |
| Insulation | Material: Polyolefin |
| Thickness: Min at any point: 0.18mm, Max average: 0.22mm | |
| Diameter: 0.94± 0.01mm;0.96± 0.01mm;0.98± 0.01mm;1.00± 0.01mm | |
| Color Code: Blue / White-Blue, Orange / White-Orange, Green / White-Green, Brown / White-Brown | |
| Elongation: Minimum 300% | |
| Tensile Strength: Minimum 1.682Kg/mm 2 | |
| Filler | Cross Slot: 4.8 x 0.45mm |
| Jacket | Material: CMR PVC |
| Thickness: Min at any point: 0.56mm, Max average: 0.58mm | |
| Diameter: 6.0±0.2mm | |
| Color: Blue | |
| Aging at 100°C for 168hrs: Min elongation retention: 50%, Min tensile strength retention: 75% | |
Electric Characteristics |
|
| Spark Test | 2000±250VOC |
| Mutual Capacitance | 580pF/100m Max |
| Conductor Resistance | Max 9.38Ω/100m at 20°C |
| Capacitance Unbalance | Max 330pF/100m |
| Resistance Unbalance | Max 5% |
| Impedance | 100±15Ω |
| Standard: | ISO / IEC 11801; ANSI / ITA-568-C; UL 444 |
| Test: | Perm Link test by fluke 90+/- 5m |
- 23 AWG, Solid
- 4 twisted pairs
- Tested up to 550 MHz
- Length: 1000 ft.
- Weight: 20.8 lbs
- Also available in White
