Products > CAS-2SA-WS – Web Access Controller

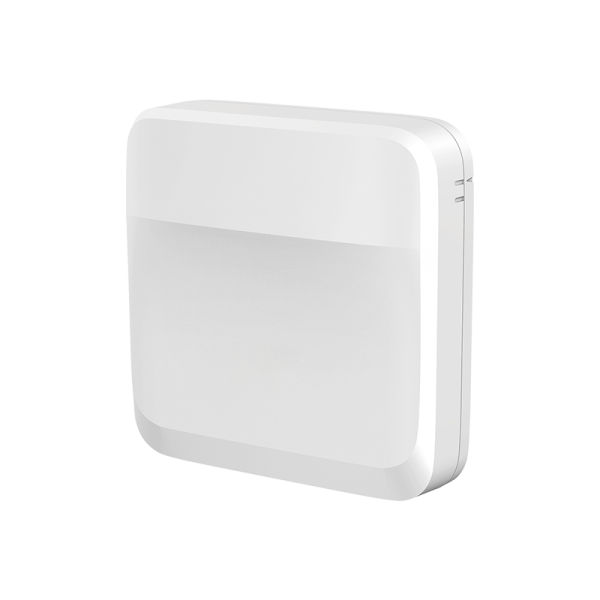

CAS-2SA-WS – Web Access Controller

Controls 2 Doors
1000 Users
Built-in Web Server
Two communication protocols: RS-485 and Wiegand
Multi-Mode – Card, Password, Fingerprint, Remote, Combination of Methods

Login to view price
    SKU: CAS-2SA-WS
    CATEGORIES: Access Control
    Optiview Icon 2 Door Scalability
    2 Door with Scalability

    Controls 2 Doors w/ Scalability up to 40 Doors

    Universa lDesign
    Accessible
    Anywhere

    Manage Anywhere – Desktop, Tablet & Mobile

    Optiview Icon Multi-Mode
    Multi-Mode

    Multiple Unlock Modes – Card, Password, Fingerprint, Remote, Combination of Methods

    Optiview 2020 Iconset - IP Network Surveillance
    PoE+

    All-metal aluminum housing for indoor and outdoor installations with 4KV lightning rating.

    Optiview Iconset - Protocol Icon
    ONVIF

    The IP4MIBC-28-SD-NCV comes with a built-in microphone to help you get even more data from every device.

    System
    Main Processor Embedded Processor
    Internet Protocol IPv4, DNS, DDNS, TCP, UDP
    SDK and API Yes
    Interoperability CGI
    Update Over Network Supported
    Input / Output Ports
    RS-485 2 Ports
    Wiegand 2 Ports
    Network 1 - 10 / 100 Mbps Ethernet Port
    Alarms 1 Alarm
    Alarm Output 2 ( Digital Quantity )
    Alarm Linkage Yes
    Exit Button 2 Buttons
    Door Status Detection 2 Ports
    Lock Control 2 Ports
    Peripheral Card Reader 2 RS-485 Card Readers
    2 Wiegand Card Readers
    Capacity
    User 1,000
    Fingerprint 3,000
    Card 5,000
    Record Capacity 300,000
    Functions
    Unlock Mode Card, Password, Fingerprint, Remote, Combination of Methods
    Alarms Tamper, Duress, Door Sensor Timeout,
    Intrusion, Illegal Card, Exceeding Treshold, Durress Fingerprint
    Access Control First Card Unlock, Remote Verification, Block List / Allow List, Real-Time
    Surveillance, Multiple Authentication, Web Configuration; Anti-Pass; Multi-Card Unlock
    User Management General, VIP, Patrol, Guest, Block List, Duress, Other
    Web Viewer IE, Chrome, Firefox
    Management Software VMS, VMX, VMX+, VMX-M
    Mobile Operating System iOS, Android
    Schedule Settings Period: 128 Groups; Holiday: 128 Groups
    Holiday Door Schedule Yes ( Used on Web GUI or with Management Software )
    Network Update Yes
    Device-Only Functions Fire Alarm; HID 26 Bit Card; HID Facility Site Code; Import / Export Card Number in Bulk; Restricted List / Trusted List
    Electrical / Environmental
    Power Supply Power Supply 12 VDC, 2.5 A or PoE ( 802.3at )
    Protection IK06
    Power Consumption Standby: ≤2 W with No Peripheral Devices
    DC: 1700 mA at 12 V for PEripheral Devices ( Locks, Readers Etc. )
    PoE: 1200 mA at 12 V for Peripheral
    Devices ( Locks, Readers Etc. )
    Operating Temperature 14 °F to 131 °F
    Operating Humidity 5% to 95% RH ( Non-Condensing )
    Operating Environment Indoor
    Construction
    Product Type Controller
    Product Dimensions Packaging 7.34” x 7.31” x 2.30” ( H x W x D )
    Dimensions 10” x 9.57” x 3.39” ( H x W x D )
    Gross Weight 2.18 lbs
    Installation Surface / Guide Rail Mount
    Buzzer Casing PC + ABS
    Certifications
    Electromagnetic Compatability ( EMC ) EN 55032: 2015 / A11: 2020
    EN 55035: 2017 / A11:2020
    EN IEC 61000-3-2: 2019
    EN61000-3-3: 3013 / A1: 2019
    EN50130-4: 2011 + A1: 2014
    EN 55024: 2010 + A1: 2015
    Federal Communications Commission ( FCC ) FCC Part 15, Subpart B; ANSI C63.4-2014
    UL UL 62368-1
    CAN / CSA C22.2 No. 62368-1-14
    Access Control

    SKU: CAS-2SA-WS Category: Tag:
