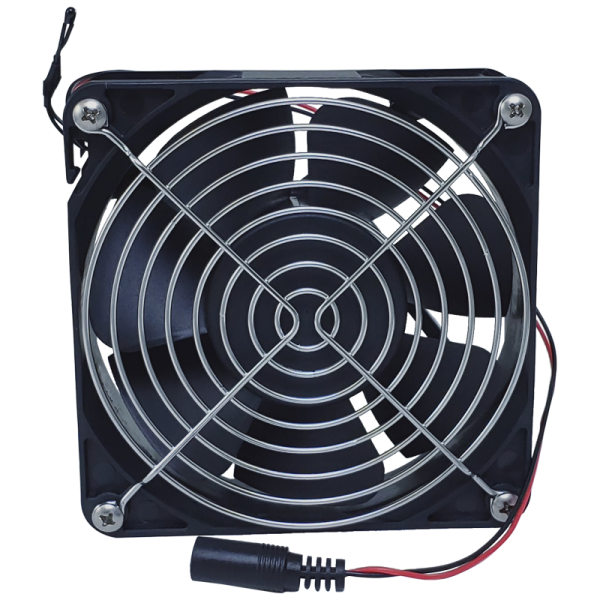

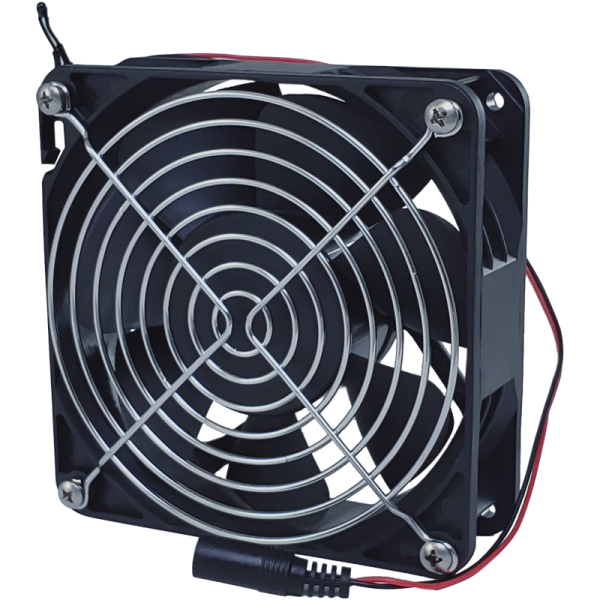

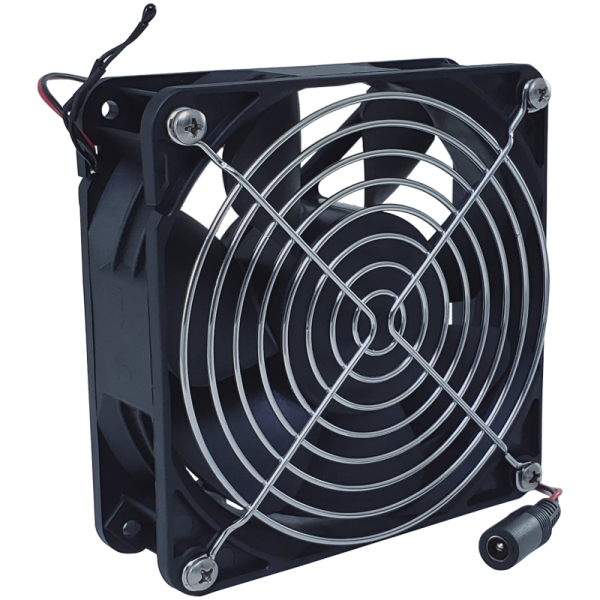

ALFTA-P – Thermostat + Fan

  • All in one design allows for easy installation and use
  • Keep enclosure cool with strong force and accurate measurements
Login to view price
    SKU: ALFTA-P
    CATEGORIES: Weatherproof

    PDF Spec Sheet – Download

    Industrial grade 12vDC fan is paired with a smart thermostat that turns on automatically at 65° and increases RPMs in accordance to heat conditions.

    Voltage 12VDC
    Dimensions 120mm x 120mm x 38mm
    Air Flow 189 CFM/5.34m ³/min
    Static Pressure 23.30mmAq
    Bearing Type Ball Bearing
    Fan Type Tubeaxial
    Noise 57.78 dBA
    Power (Watts) 19.50W
    RPM 940 RPM, 3000 RPM, 4700 RPM
    Termination 2
    Operating Temperature 14 ~ 158° F
    Current Rating (Amps) 1.625A
    Material – Frame Aluminum
    Material – Guard Aluminum
    Material – Blade Polybutylene Terephthalate (PBT)
    Lifetime Temp 70000 Hours @ 77°F
    Weight 315g



    • All in one design allows for easy installation and use
    • Keep enclosure cool with strong force and accurate measurements
