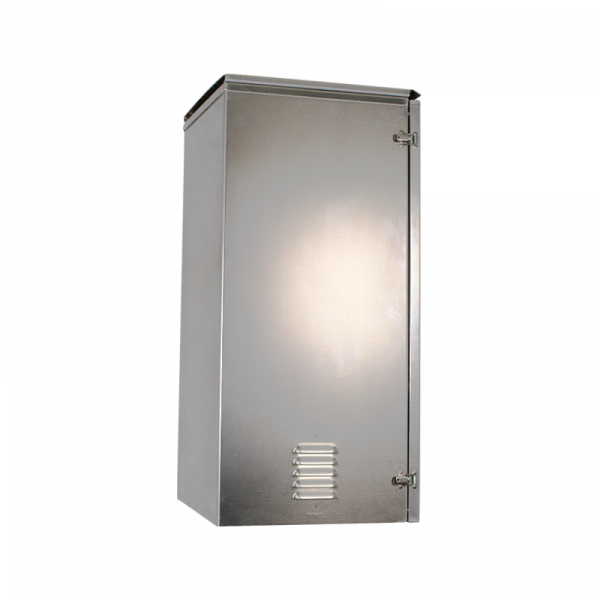

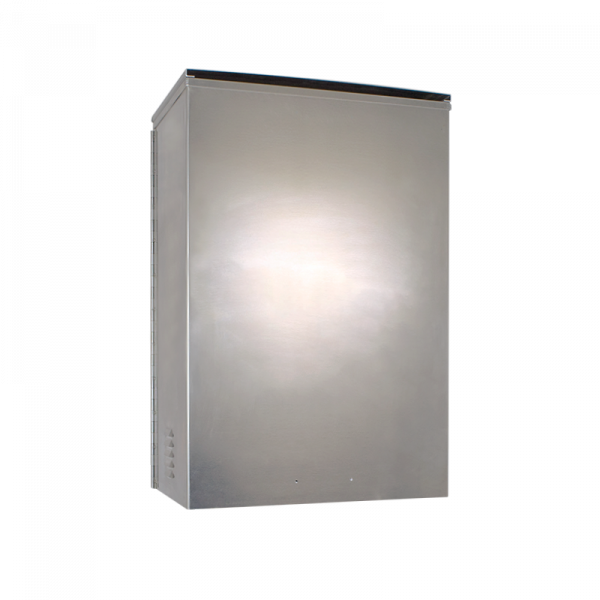

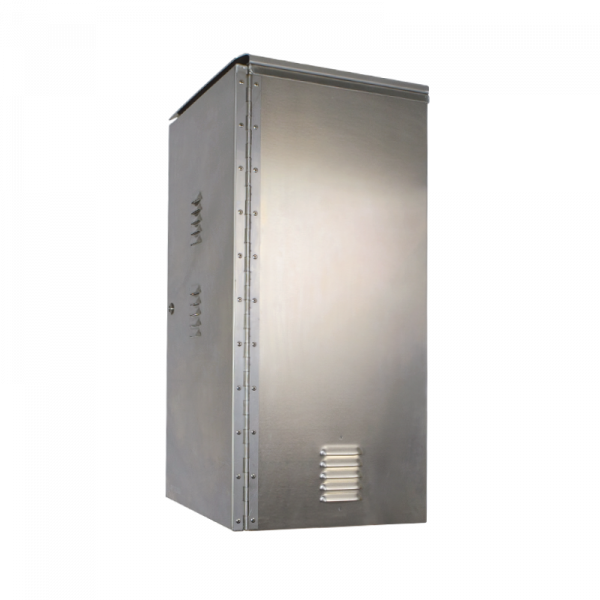

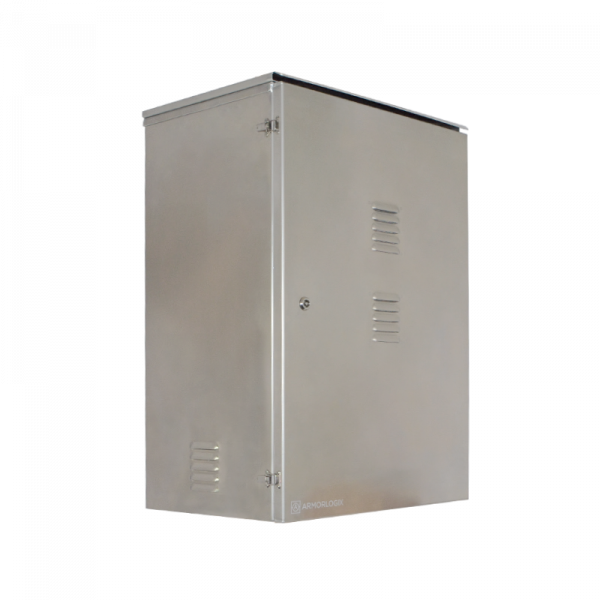

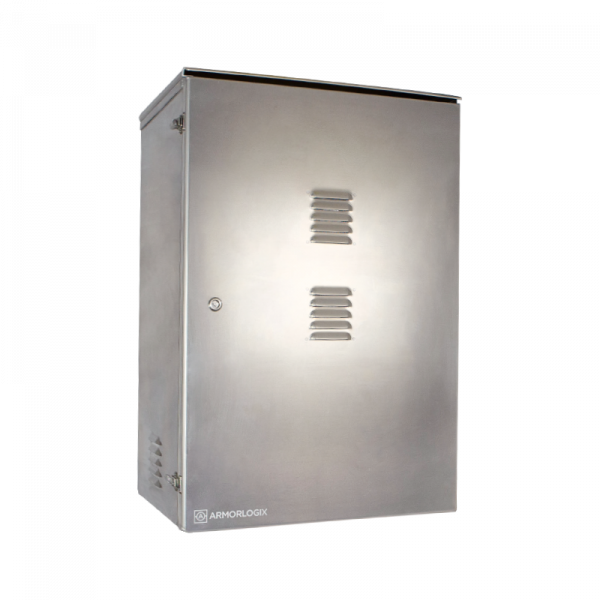

AL362416N3 – NEMA 3 Weatherproof Enclosure With Two Fans

36″ x 24″ x 16″
NEMA 3
1/8” 5052 Aluminum
Includes Thermostatic Fans

Login to view price
    SKU: AL362416N3-FT2
    CATEGORIES: Weatherproof

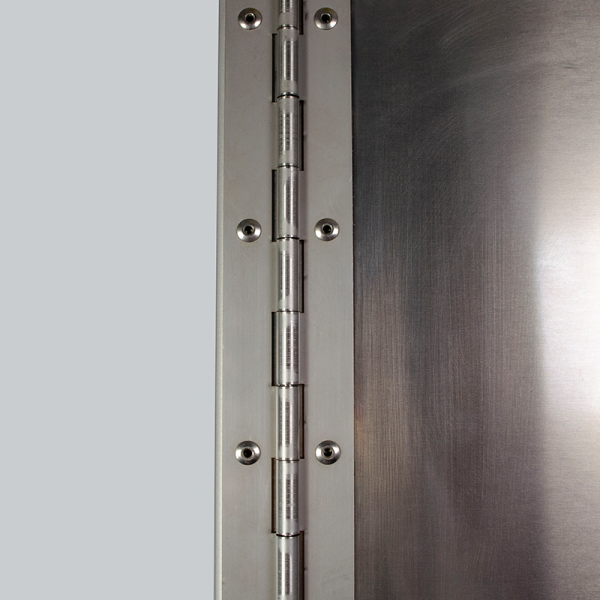

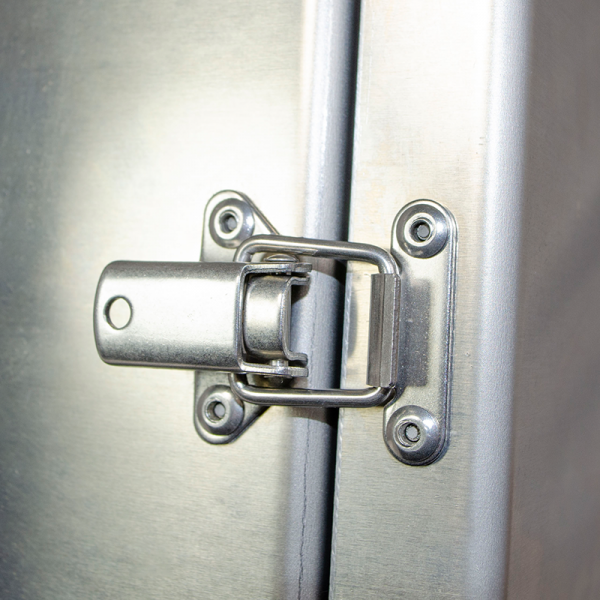

    The 36″ x 24″ x 16″ weatherproof enclosure is rated NEMA3 and is constructed using 5052 Marine Grade Aluminum which is designed to withstand corrosive environments such as dirt, grit and salt. The AL362416N3-FT2’s weatherproof enclosure comes standard with (2) mounting brackets, security lock, sun shade and adjustable/removable equipment mounting panel, a heavy-duty piano hinge, and dual door latches. This model includes a single thermostat/fan combination for temperature control.

    FEATURES

    • Constructed For Indoor & Outdoor Application
    • Durable 1/8” 5052 Aluminum Construction
    • Weathertight 1/4″ Rubber Door Seals

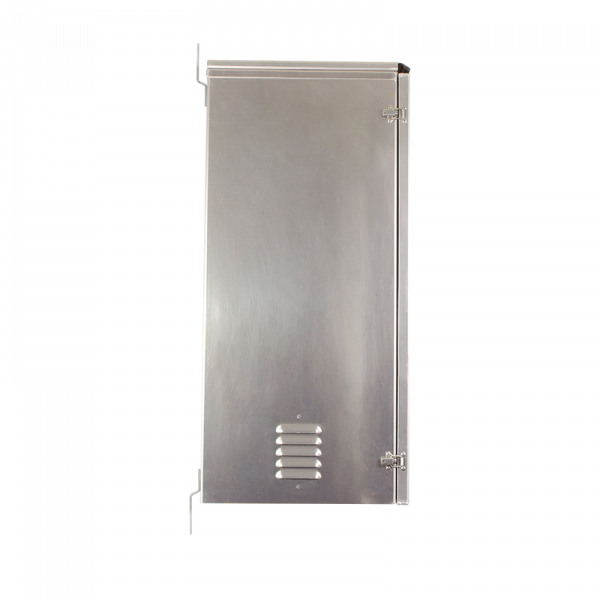

    • Screened Vents On Sides & Door

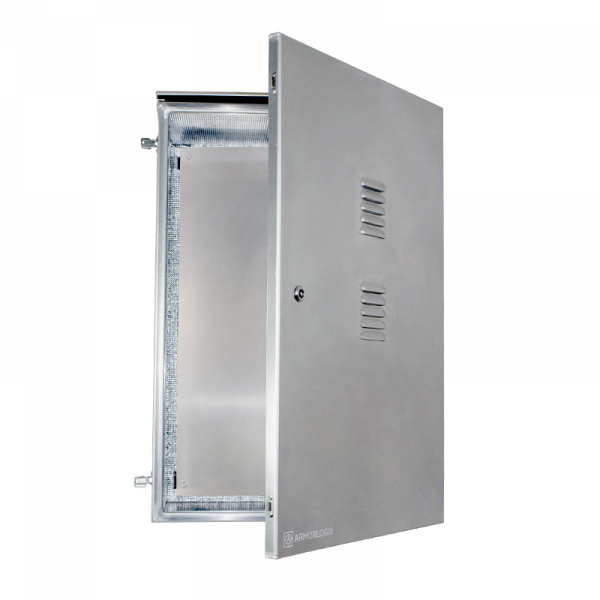

    • Adjustable / Removable Equipment Mounting Plate
    • Security Lock with Key

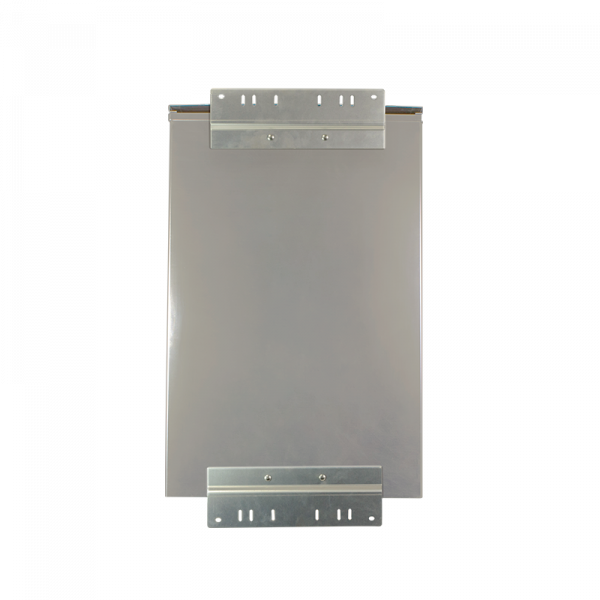

    • A pair of Wall / Pole Enclosure Mount Plates are included

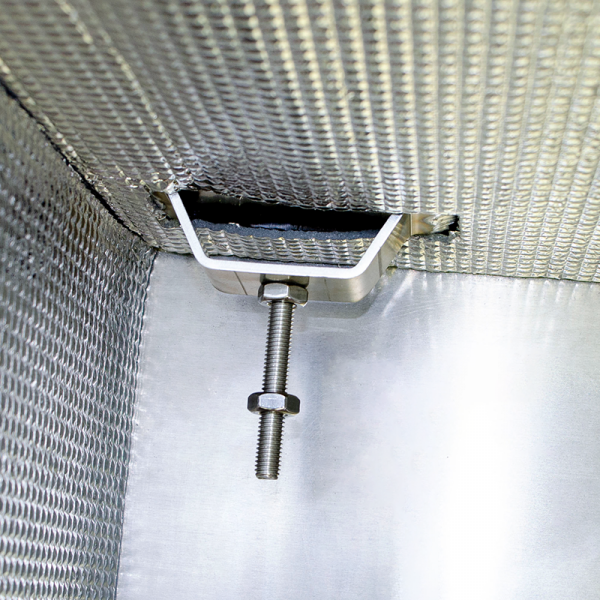

    • Includes Heavy Duty Hardware Adapted for Heavier Installed Equipment

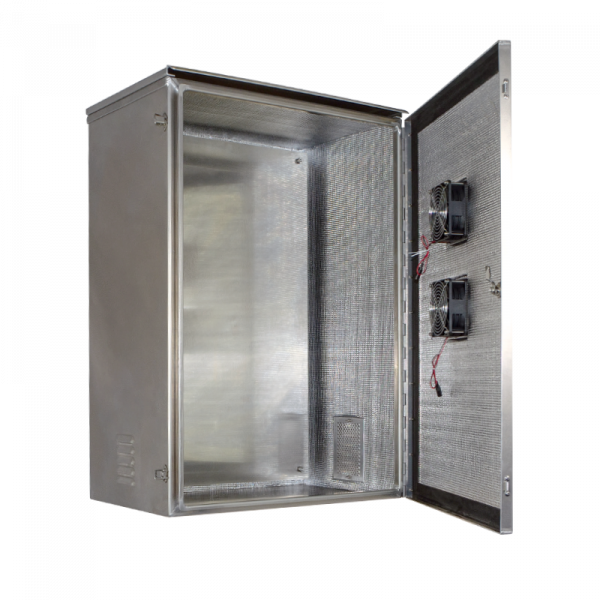

    • Includes Two Installed Temperature-Controlled Thermostatic Fans
    Specifications
    Material 1/8” 5052 Aluminum
    NEMA Rating 3
    Mounting Brackets 2x Universal Wall / Pole Brackets – Bands not included
    Door Seals 1/4″ Weather Tight Neoprene
    Equipement Mounting Plate 1x (21” x 34”)
    Security Lock Yes (2x keys included)
    Dimensions: External 25” W x 37” H x 17.125” D
    Dimensions: Internal Max. 23.625” W x 35.625” H x 16.5” D
    Dimensions: Internal Min. 23.625” W x 35.625” H x 12” D
    Weight 73 lbs
    Product Specific Resources

    Data Sheet – AL362416N3-FT2
