Products > WPIP-4S – Weatherproof Temperature Controlled 4 Port PoE Switch

WPIP-4S – Weatherproof Temperature Controlled 4 Port PoE Switch

Weatherproof Aluminum Enclosure
4 Port PoE Switch
Thermostatic Fan
Wall or Pole Mount

Login to view price
    SKU: WPIP-4S
    CATEGORIES: Weatherproof

    Weatherproof Enclosure

    Enclosure Material 5052 Aluminum
    Enclosure Color Silver / Metalic
    Voltage 120V AC (Power Strip)
    Mounting Plate Material Aluminum
    Mounting Plate Dimensions 9″ × 10″
    Weight (Enclosure Only) 9 lbs
    Outside Dimensions 12″ × 12″ × 11″
    Cable Feed 1.5″ Non-Metalic Seal Tight Straight Connector
    Ratings NEMA 3

    Industrial 4 Port PoE Switch

    Power Supply External Power Adaptor
    Voltage Range DC48V~56V
    Consumption < 3W
    Speed 1-5 Ports: 10/100Mbps
    Uplink: 10/100Mbps SFP
    Transmission Distance 1-5 Ports: 100M with 100Mbps
    Uplink: 10/100Mbps SFP
    Ethernet Standard IEEE 802.3
    IEEE 802.3u
    IEEE 802.3af
    IEEE 802.3at
    Switch Capacity 1.2 G
    Transfer Rate 14,880 pps for 10Mbps
    148,800 pps for 100Mbps
    MAC Address 2K MAC Address Table
    LED SFP Link/Act On + Green – The port is connecting
    Link/Act Blinks – The port is receiving or transmitting data
    Link/Act Off – The port is not linked with the device
    POE On + Orange – PD is connected
    POE Off – No PD is connected or power forwarding failure
    Temperature Operating + Storage: -40° ~ 167° F
    Humidity 10~85%
    Dimensions 6.5″ x 2.9″ x 5.6″
    Weight 2.3lbs
    Color Black + White

    • PDF Spec Sheet – IP4MIAB-28-SDA 4 Megapixel Fixed Armor Ball with built-in Mic and SD Card Slot
    • PDF Spec Sheet – AL121211N3 12 x 12 x 11″ Weatherproof 5052 Aluminum Enclosure

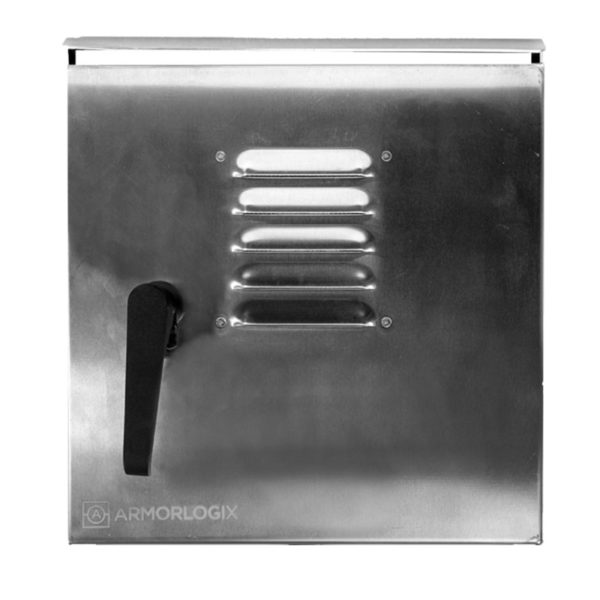

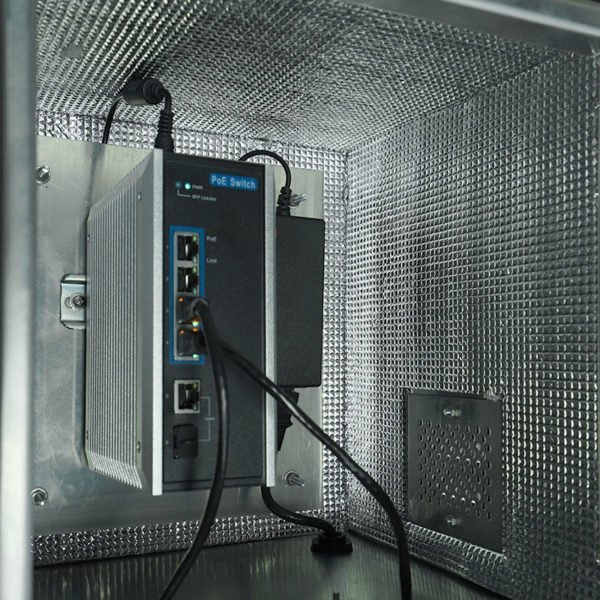

    Optiview’s wall or pole mount weatherproof 4 port PoE solution is housed inside an ArmorLogix NEMA3 weatherproof enclosure which are ideal for outdoor locations. The industrial grade solution comes with 4 x pre-terminated 3ft CAT6 patch cables and weatherproof glands for allowing cables to pass outside to other equipment.

    The WPIP-4S can be used for mounting outdoor IP cameras, or communications packages, and is easily installed on a wall or pole using the universal pole mounting brackets (included).

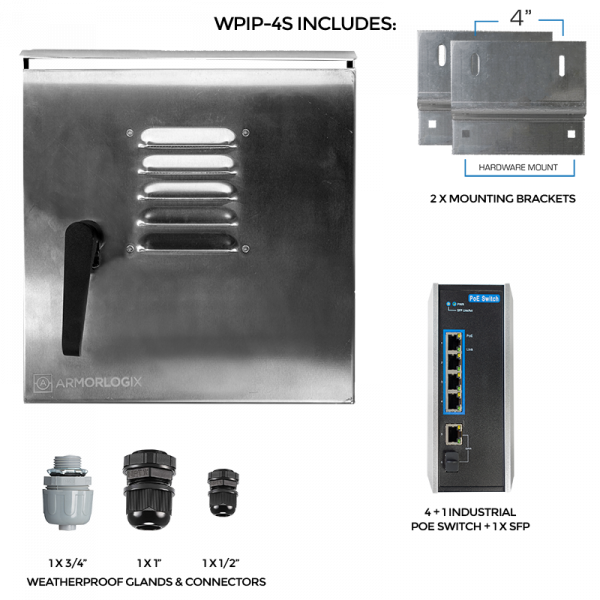

    Features
    • 12 x 12 x 11″ ArmorLogix enclosure with automatic thermostatic fan
    • 4+1 port 48V PoE switch
    • 3ft CAT6 patch cables
    • Weatherproof cable glands

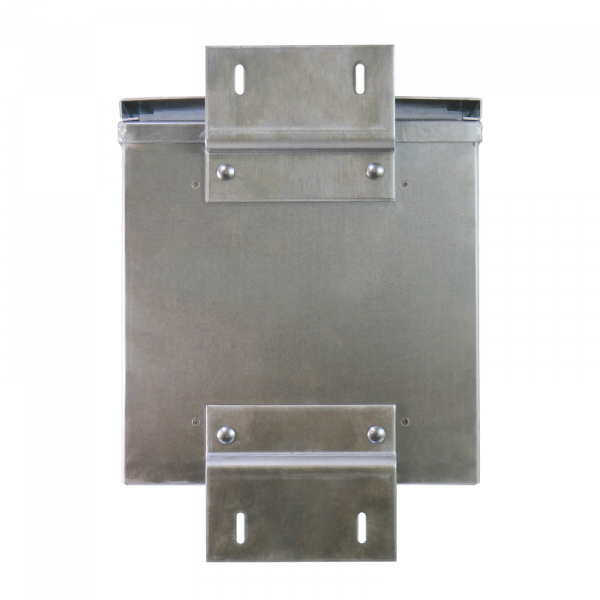

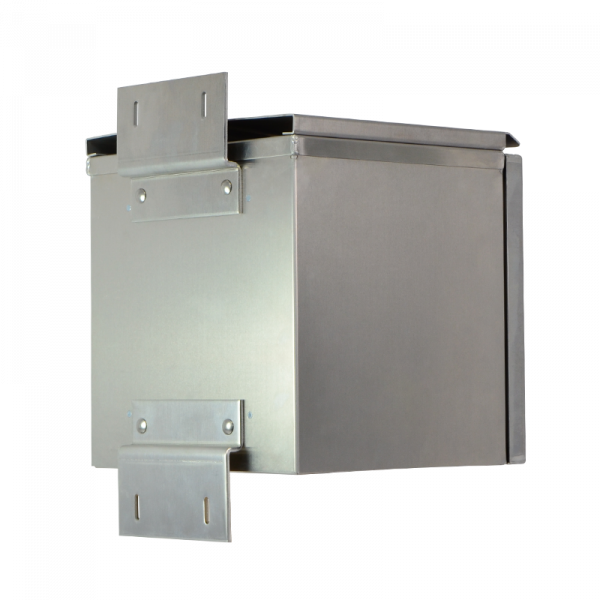

    • Universal Mounting brackets which allow for wall or pole mounting
    Add On Options
    • 3G / 4G Cellular Router with GPS package
    • Wireless Bridge
    • Optiview or 3rd party outdoor rated IP cameras
