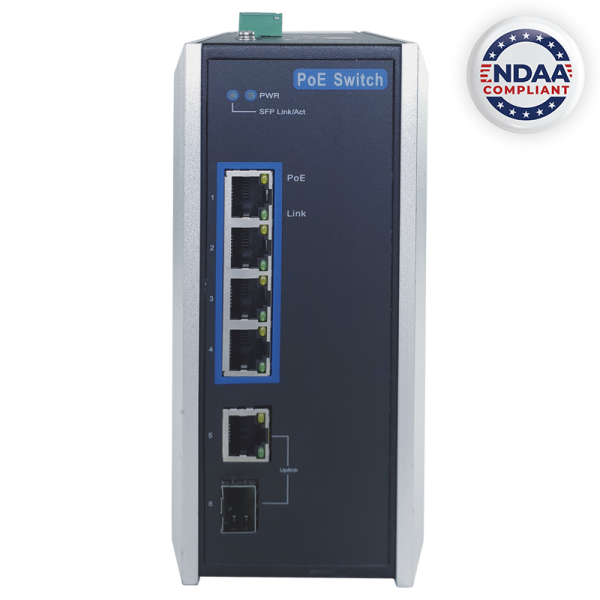

OVPOE4+1-60 – 4 Port Industrial PoE Switch 10/100Mbps
4 x 10/100Base-TX
110/100 Uplink + 10/100 SFP
60W Power over Ethernet
Each PoE port up to 30W of power
CATEGORIES: Accessories

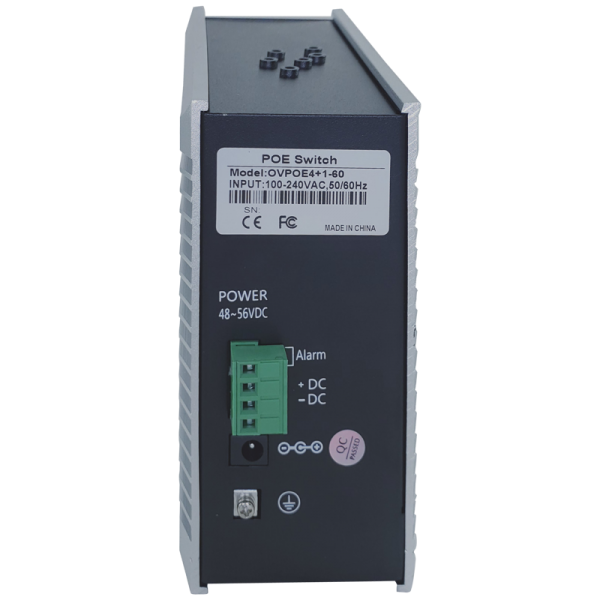

| Power Supply | External Power Adapter |
| Voltage Range | DC48V~56V |
| Consumption | < 3W |
| Speed | 1-5 Ports: 10/100Mbps Uplink: 10/100Mbps SFP |
| Transmission Distance | 1-4 Ports: 100m with 100Mbps Uplink: 10/100Mbps SFP |
| Ethernet Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3af IEEE 802.3at |
| Switch Capacity | 1.2G |
| Transfer Rate | 14,880 pps for 10Mbps 148,800 pps for 100Mbps |
| MAC Address | 2K MAC Address Table |
| LED | SFP Link/Act On + Green – The port is connecting Link/Act Blinks – The port is receiving or transmitting data Link/Act Off – The port is not linked with the device POE On + Orange – PD is connected POE Off – No PD is connected or power forwarding failure |
| Temperature | Operating + Storage: -40° ~ 167° F (-40° ~ 75° C) |
| Humidity | 10~85% |
| Dimensions | 6.5″ x 2.9″ x 5.6″ (167 x 72 x 143 mm) |
| Weight | 2.3 lbs (1.04 kg) |
| Color | White + Black |
- PDF Spec Sheet – Download
- Each PoE port can provide up to 30W of power
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at

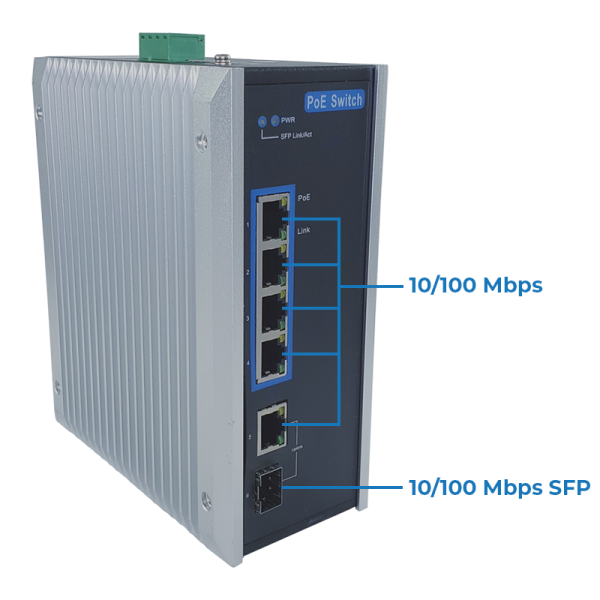

- Provides 5 x 10/100Base-TX ports, 1 x 10/100BaseX SFP slot
- Provides 4 x PoE Injector and 65W Power adapter
- High back-plane bandwidth 1.2Gbps
- IEEE802.3x Flow Control
- Surge protection for Power Ports and Data Ports

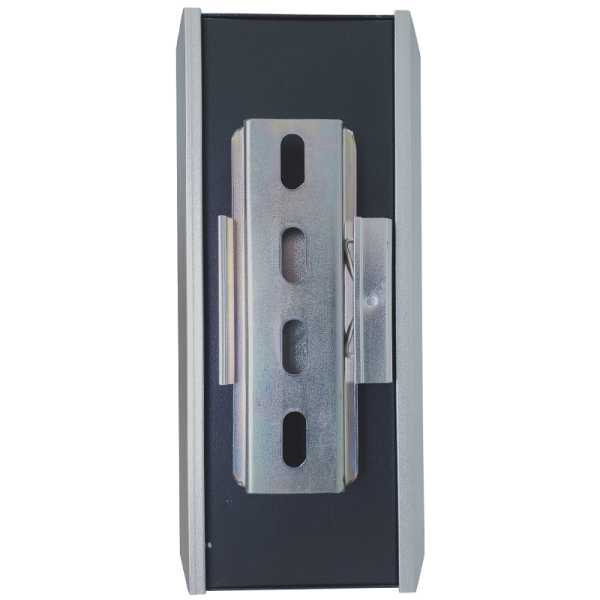

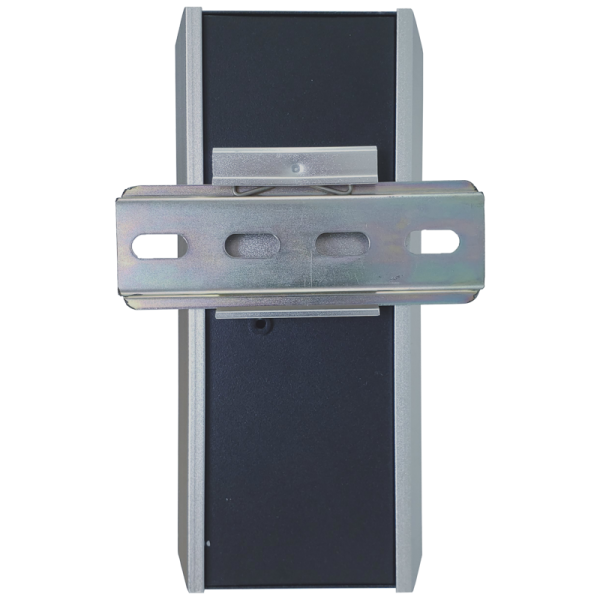

- Din Rail mountable
| Accessories | |
|---|---|
| Compliance |
