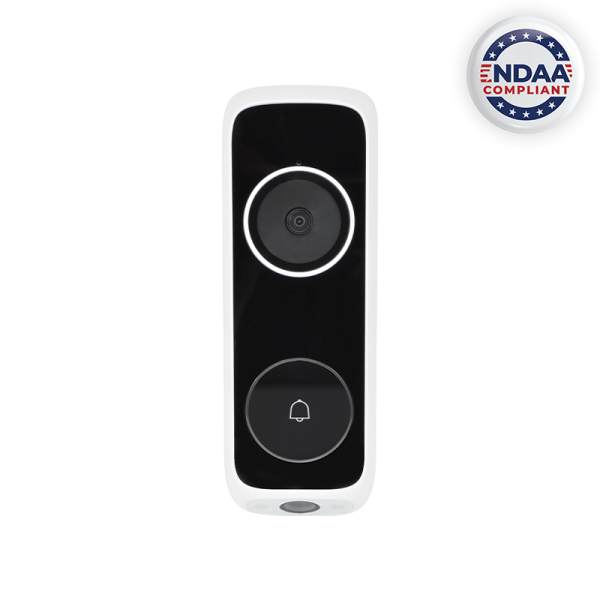

IPDB-NCV – Wireless Human and Package Dual Lens Video Doorbell

3MP + 2MP
Human & Package Detection
Two Way Talk
Built-in IR & White LED Light
8GB Internal Storage

Login to view price
    SKU: IPDB-NCV
    CATEGORIES: Cameras
    Optiview_2020_Iconset_Lens
    3MP + 2MP

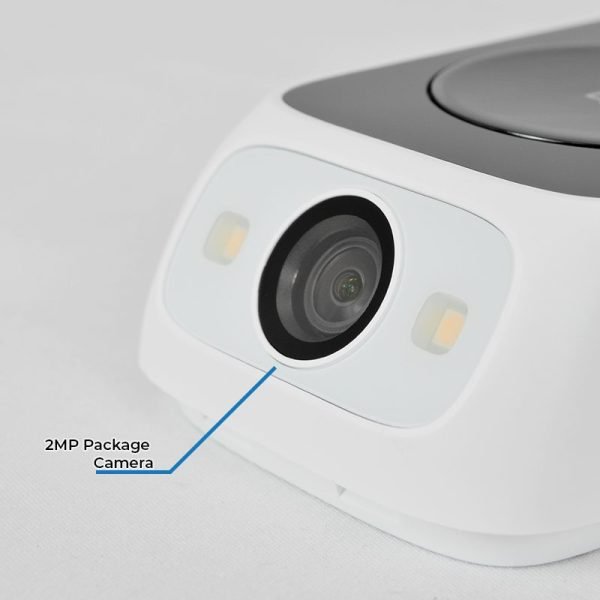

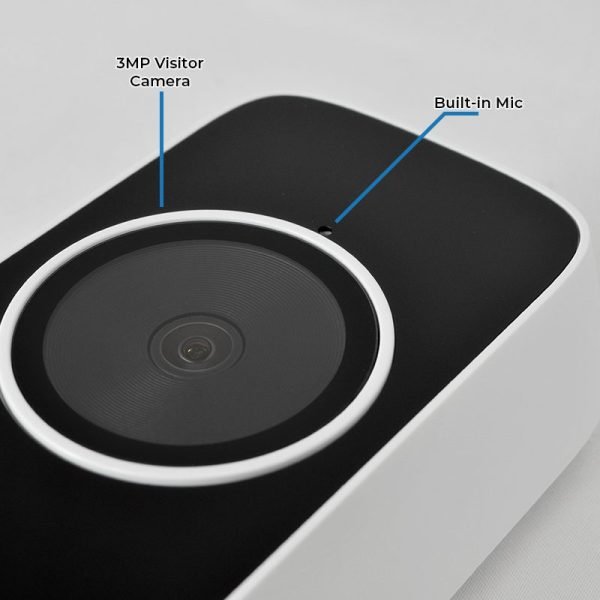

    3MP Visitor and 2MP Package Lenses

    Optiview Iconset - Human & Package Detection
    Human & Package Detection

    Prevent package theft with dual lens capturing visitors & deliveries.

    Alarm Icon - Optiview
    Real-Time Notifications

    Receive real-time notifications for people & packages detected at your location.

    Built-In Mic
    Two-Way Talk

    With two-way audio support, communicate with anyone in the camera’s proximity.

    Outdoor Weatherproof IP Rating
    IP65

    Fully protected against dust & rain.

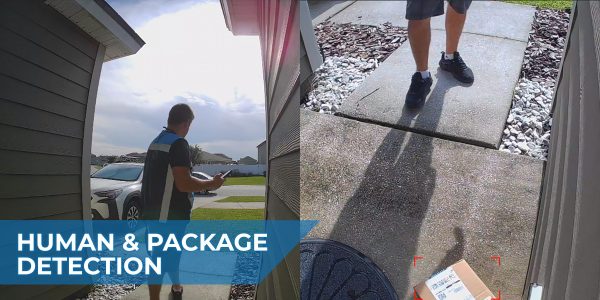

    Human & Package Detection Infinity Scroll

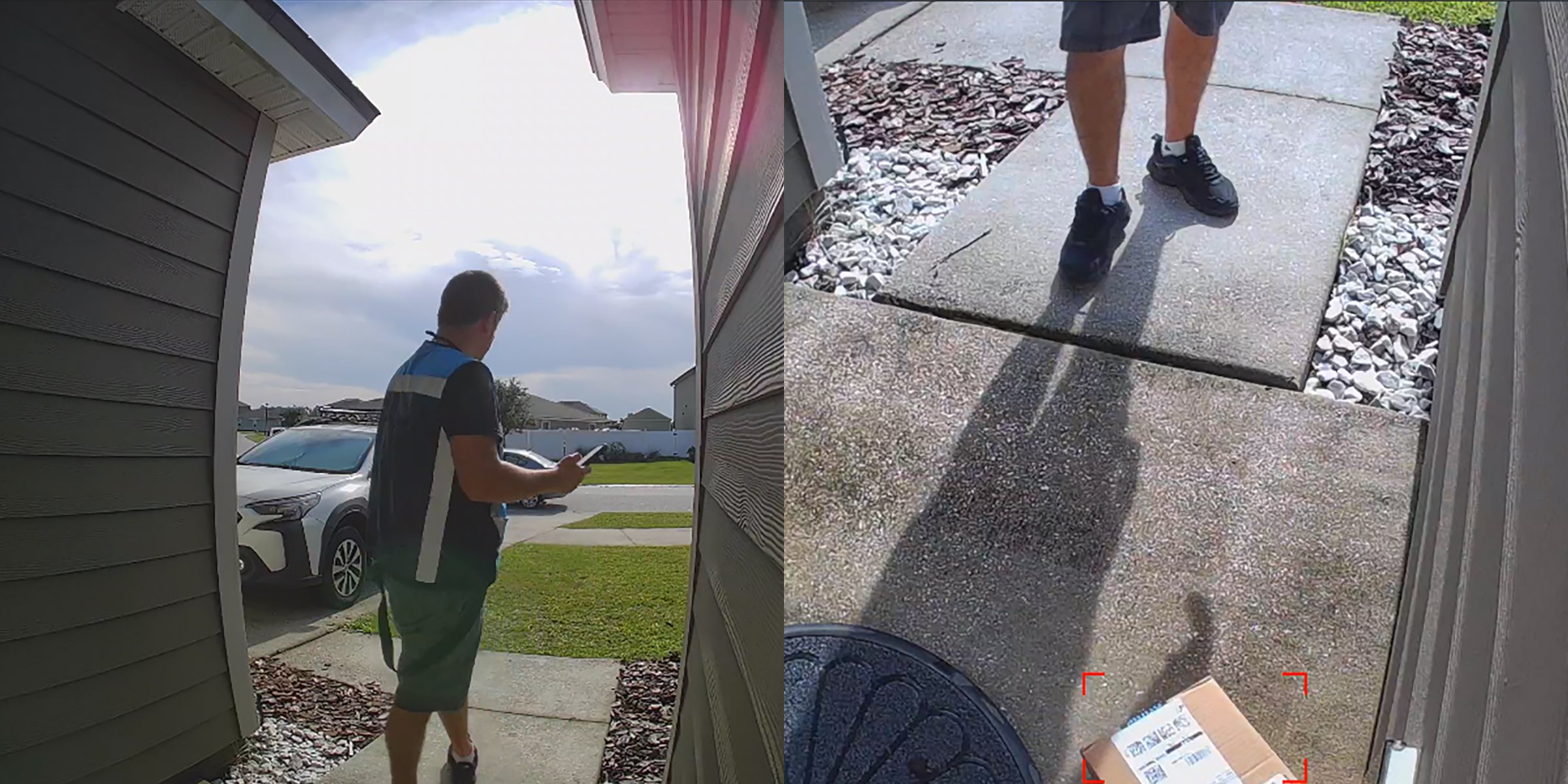

    Human & Package Detection

    Filter out unimportant events by focusing on human body detection, and package detection. Regardless if you’re home or away you can see who’s visiting or whether or not the order you’ve been waiting on actually got delivered to your doorstep. People and package detection assist in package theft prevention with smart greetings and dual lens captures your property and potential perpetrators.

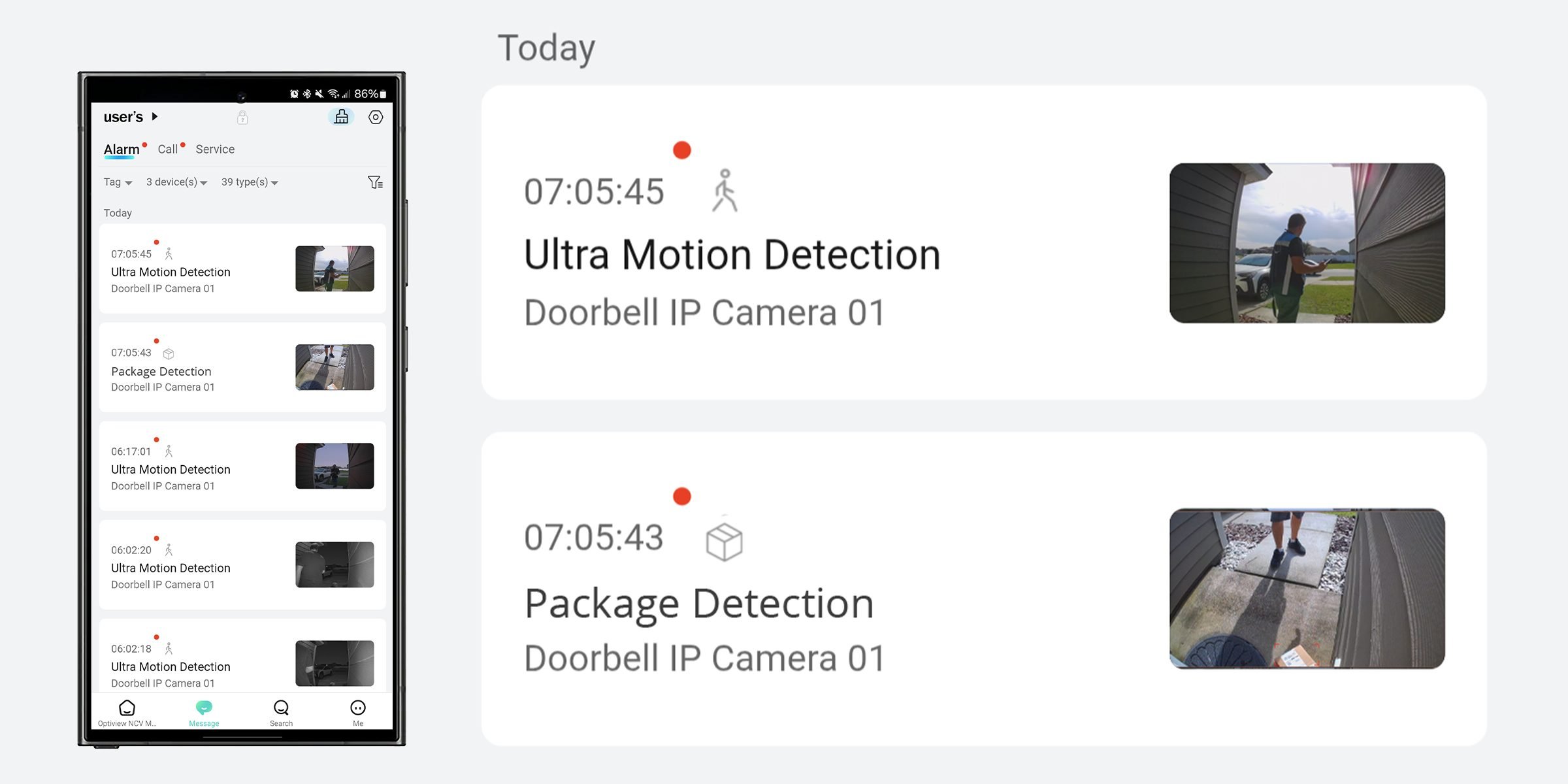

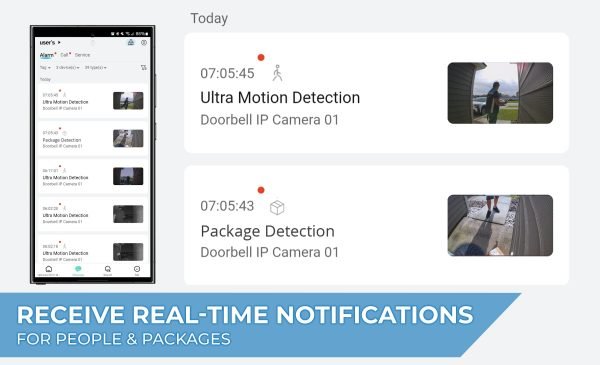

    Receive Real-Time Notifications – People & Package

    Receive real-time notifications for people and packages detected at your location. Notifications allow you to engage with visitors with One Tap Call and Answering. Alerts provide direct access to event playback, minimizing time spent reviewing footage and enabling faster incident verification.

    Real-Time Human & Package Notification Infinity Scroll

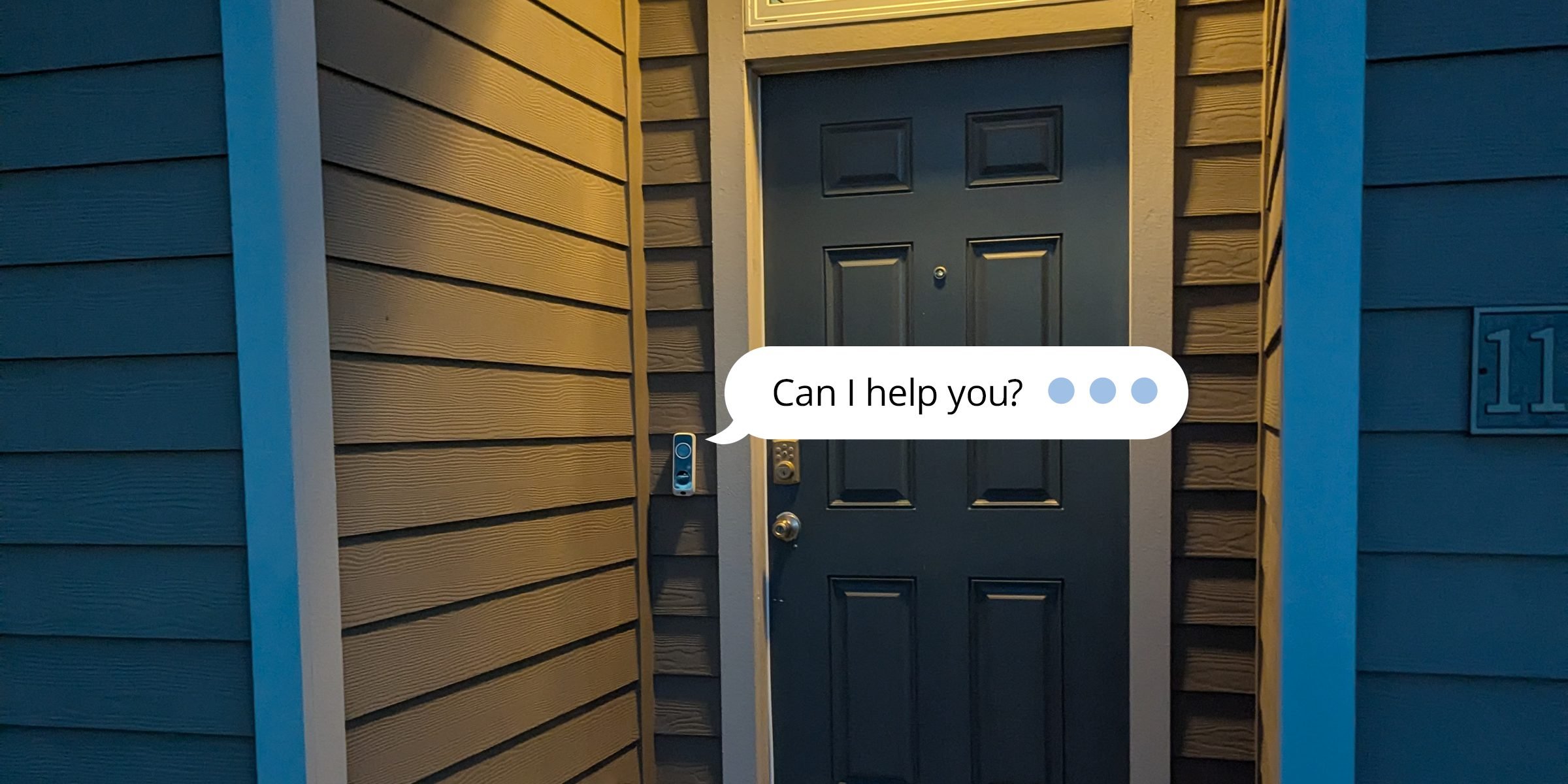

    Two Way Talk Smart & Greeting Infinity Scroll

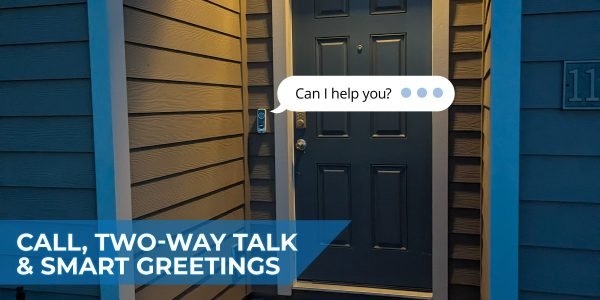

    Call, Two-Way Talk & Smart Greetings

    Quick one touch call button allows for two-way communication from the NCV app with onboard mic and speaker. When a package is detected on your porch, the doorbell automatically engages visitors to help deter theft by porch pirates. If the doorbell is pressed and unanswered, an automated response is triggered after a set interval providing a positive visitor experience.

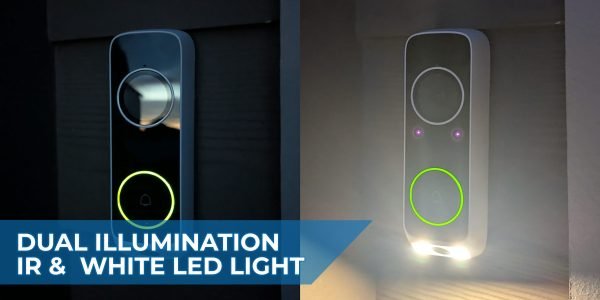

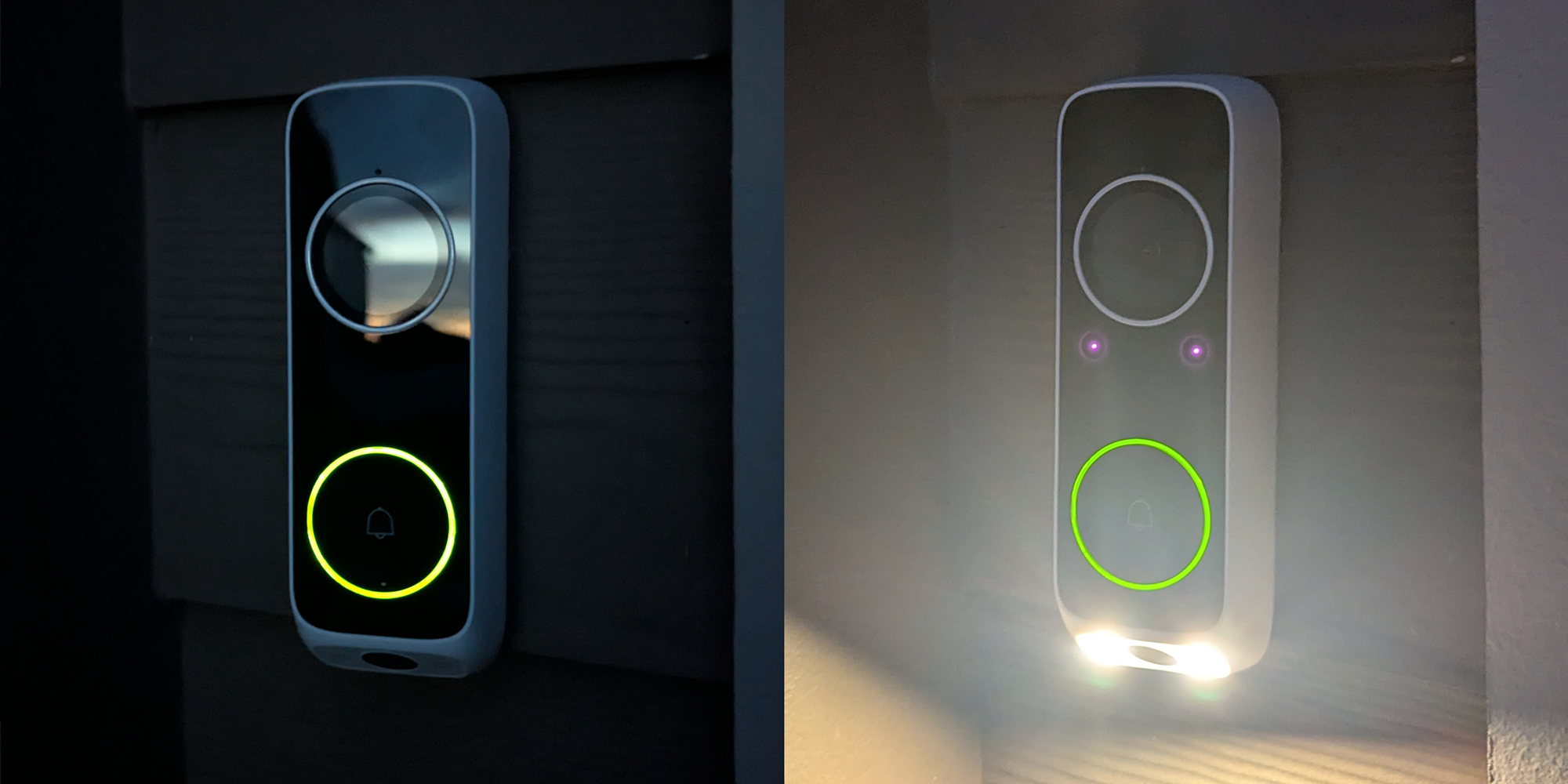

    Dual Illumination Up to 16ft – IR & White LED Light

    IR allows you to see your entrance or doorstep regardless of darkness. White LED light act as both active deterrence letting porch pirates know they are being watched, but also serves as a courtesy light so you don’t fumble around with your keys in the dark.

    Doorbell Dual Illumination - Courtesy & Active Deterrence White LED Light
    Simple Timeline Navigation Infinity Scroll

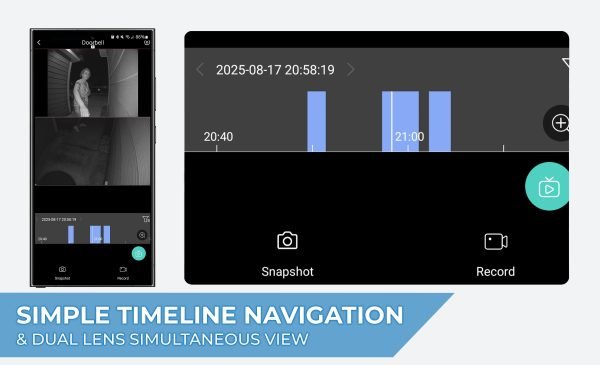

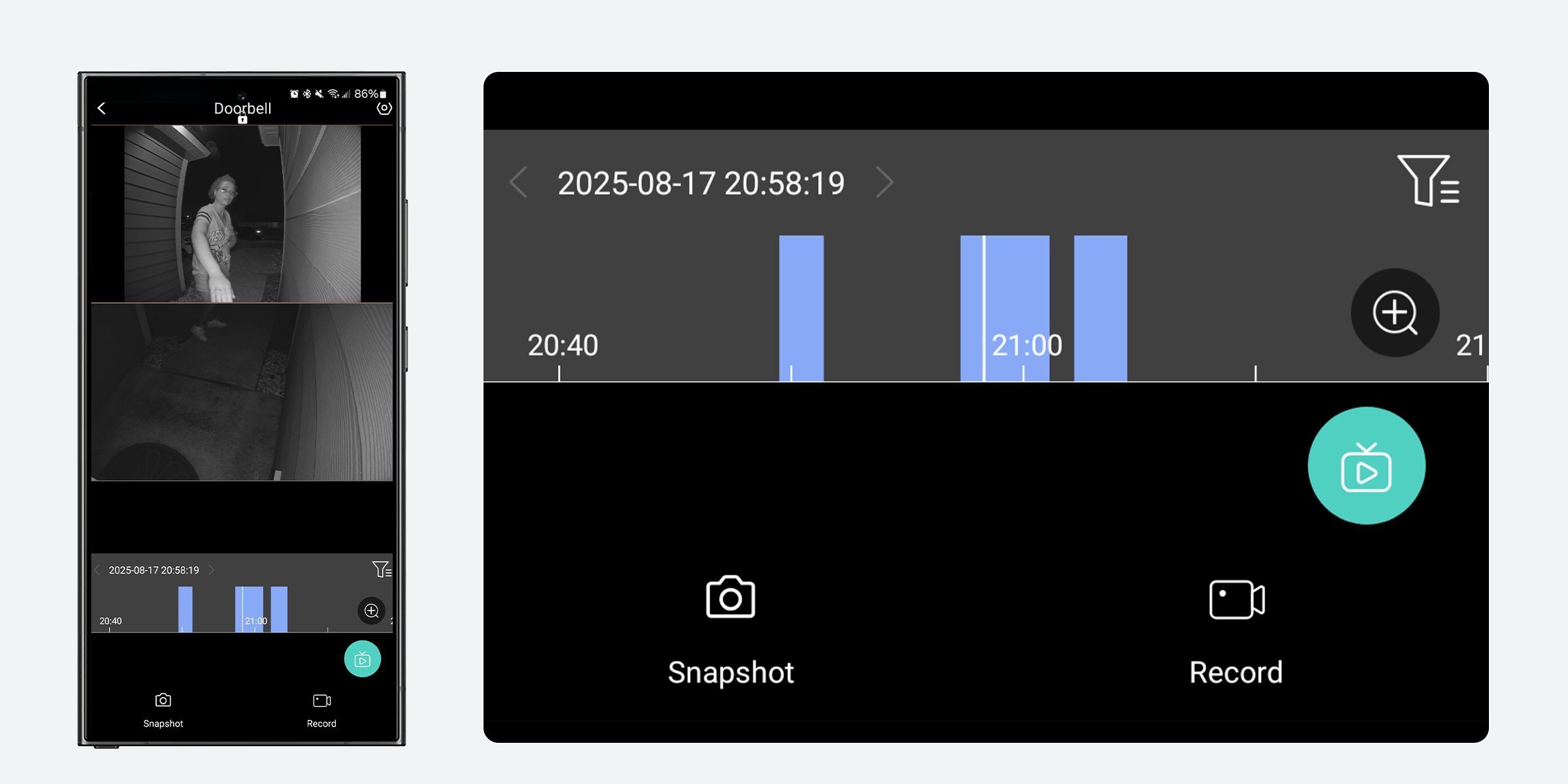

    Simple Timeline Navigation

    Simple Timeline Navigation with color-coded activity indicators provide an intuitive searching experience and filtering options reducing time spent searching for events. The dual lens simultaneous view provides a comprehensive picture of events helping you find the moment you’re looking for more efficiently.

    Wide & High Dynamic Range

    The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) and high dynamic range (HDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

    WDR (Wide Dynamic Range) - Infinity
    Dual Band Wireless Infinity Scroll 2000x1000

    Bluetooth & Dual Band Wireless

    Rapid network setup with Bluetooth connection and fast video streaming and real-time playback with Wi-fi (2.4GHz and 5GHz) and Wi-Fi 6 wireless connectivity.

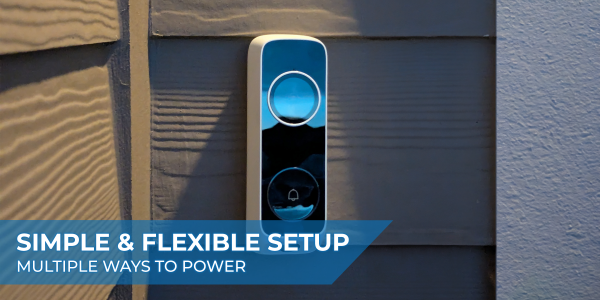

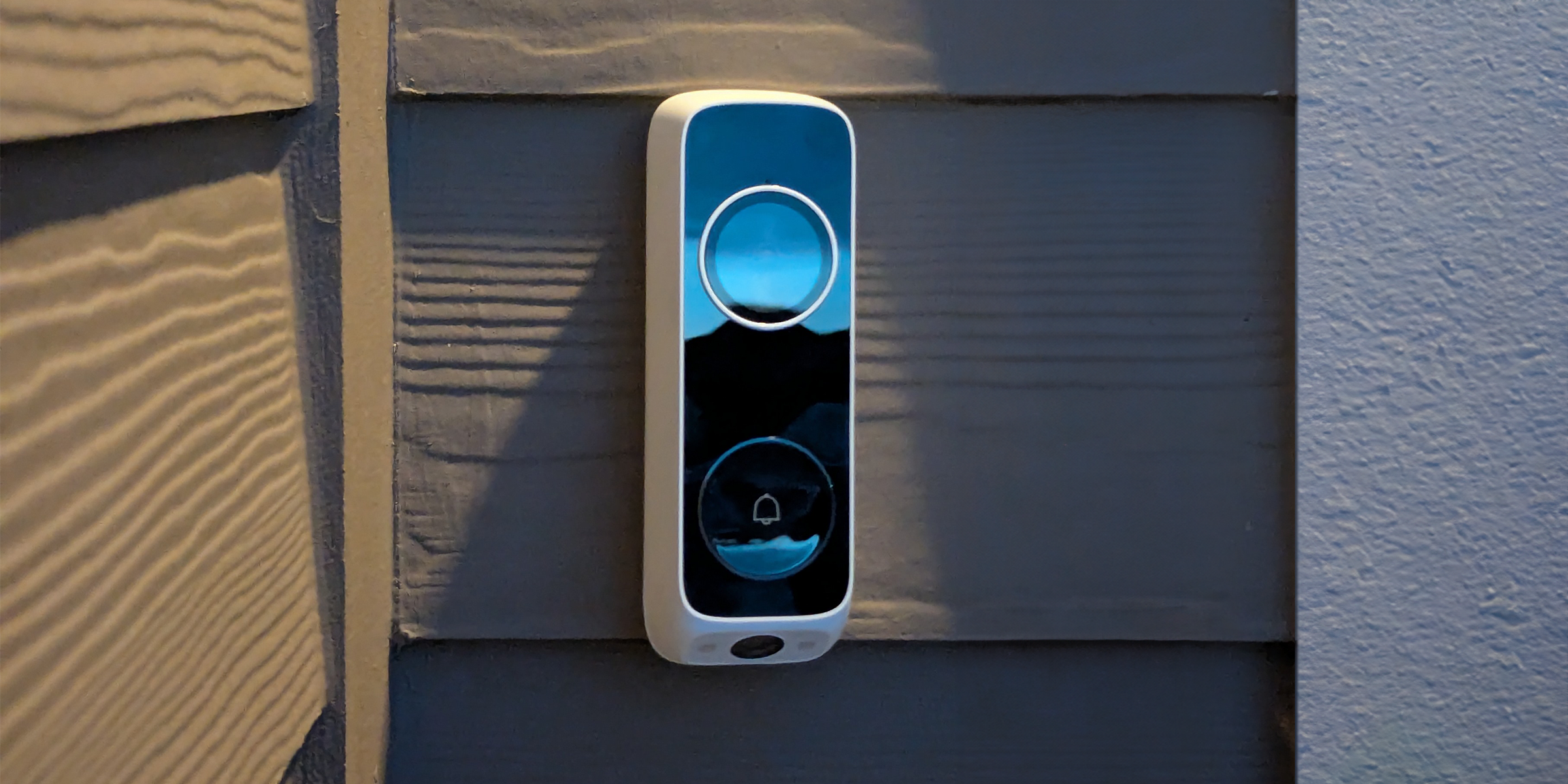

    Simple & Flexible Setup

    Installation flexibility provides you multiple ways to power your doorbell. Completely wireless by charging the built-in battery or power it through the mechanical chime.

    IPDB-NCV Simple & Flexible Setup Infinity Scroll

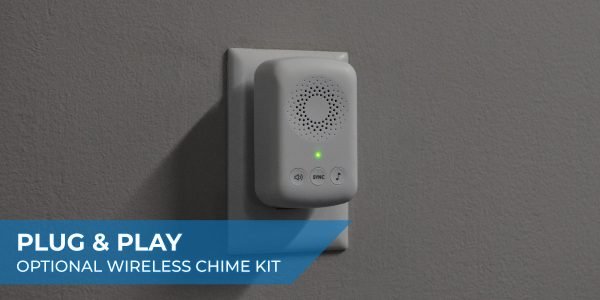

    IPDB-C-NCV Plug & Play Doorbell Chime Infinity Scroll

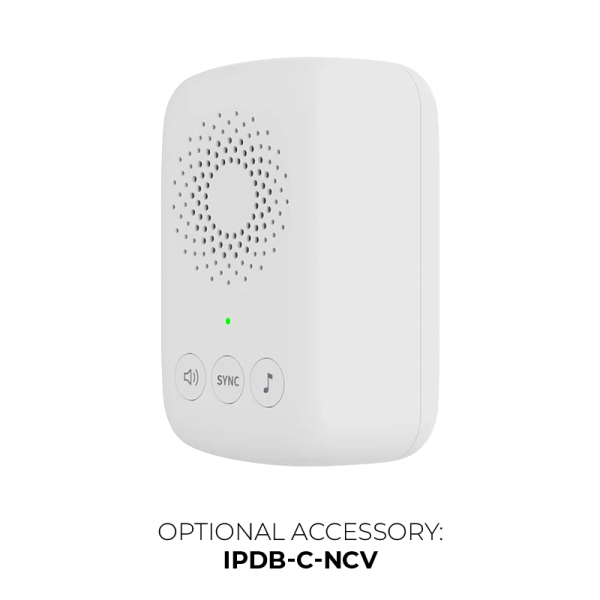

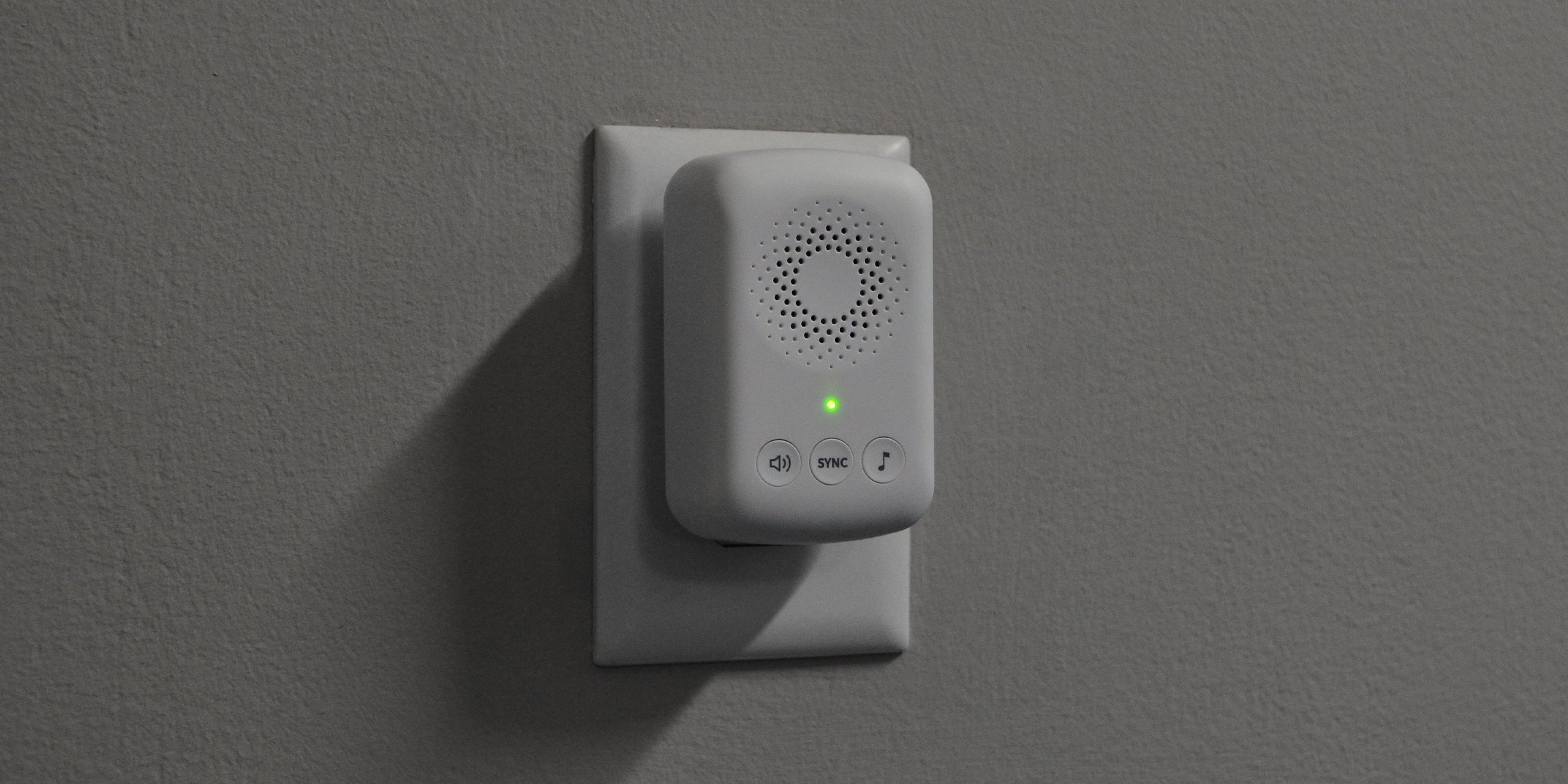

    Mechanical & Wireless Chime

    Supports mechanical and wireless chime seamlessly. Optional wireless chime kit IPDB-C-NCV.

    Camera
    Resolution - Main Camera 3 MP
    Resolution - Sub Camera 2 MP
    FoV - Main Camera Horizontal: 116°
    Vertical: 82.5°
    Diagonal: 131°
    FoV - Sub Camera Horizontal: 96.8°
    Vertical: 52.6°
    Diagonal: 109.9°

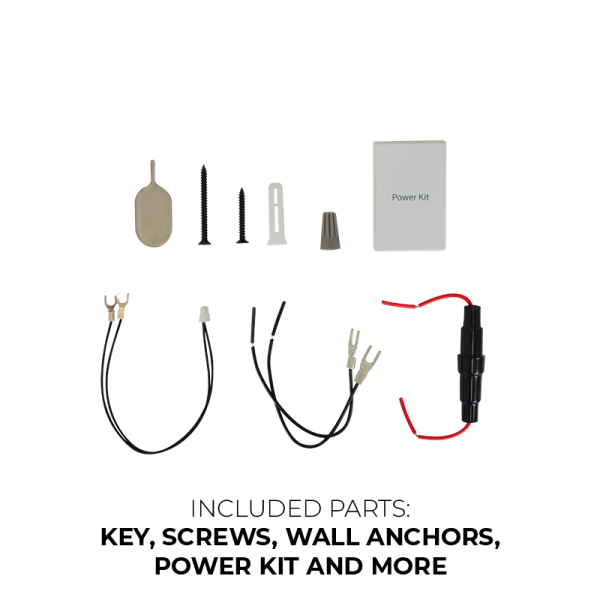

    Power kit
    Power Kit 240 mAH rechargeable lithium battery (for mechanical chime)
    Charge Temperature 32 °F to 113 °F
    Alarm Event
    Motion Detection Alarm Support
    UMD Alarm Supports human body detection alarm
    Package Detection Alarm Support
    Wi-Fi
    Operating Frequency Band 2.4 GHz and 5G Hz
    BLE function Compatible, integrated BLE, supports network connection via Bluetooth
    Antenna type Built-in omnidirectional antenna
    WLAN 802.11 b/g/n/ax
    Encryption WPA-PSK/WPA2-PSK/WPA3-personal
    Bluetooth Support, integrated in Wi-Fi chip
    SUB-1G
    SUB-1G Supported, for chime connection
    Interface
    Anti-tamper Button Support
    Reset Button 1 micro switch for both pairing and reset
    Built-in Mic Support
    Built-in Speaker Support
    Illuminator
    Illumination Scheme IR + white light
    Illumination Distance IR: 16.4ft
    White light: 6.56ft
    General
    Dimensions 2.20" x 6.16" x 1.10"
    Weight Net weight: 0.31bs
    Gross weight: 0.65lbs
    Power Consumption 10W

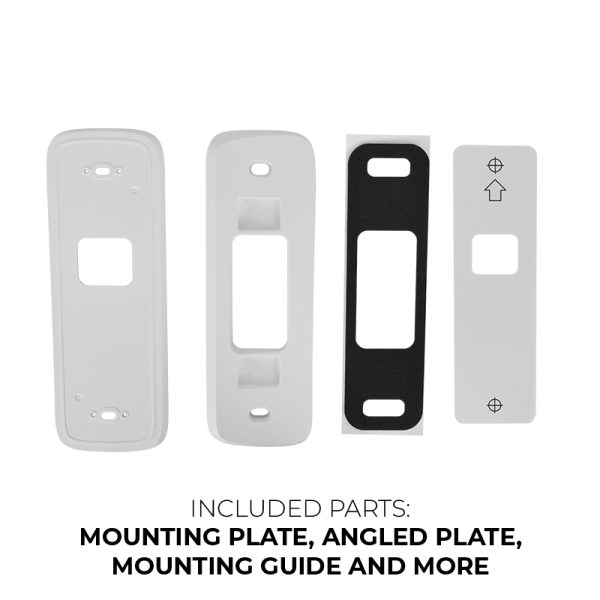

    Installation Method With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts.
    Button One call button
    Power Source Contact: AC 12 V to 24 V
    Operating Temperature -22 °F to 140 °F
    Ingress Protection IP65
