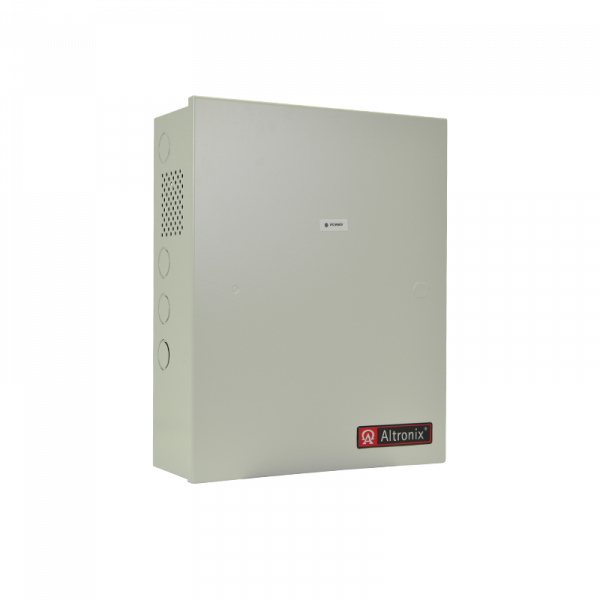

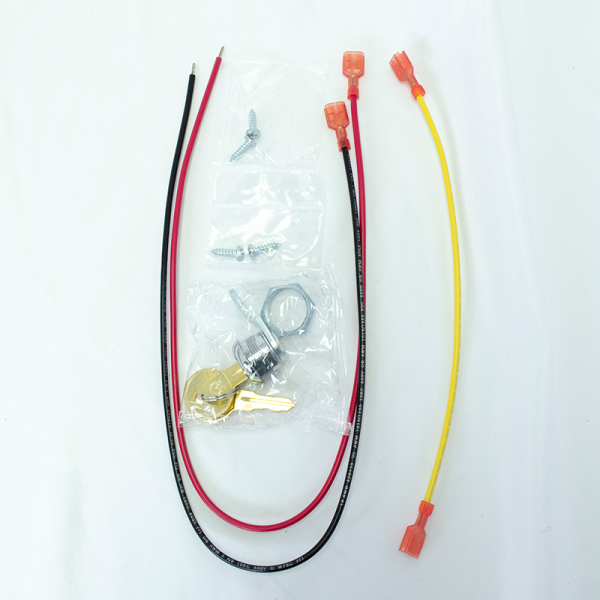

CAS-PWR81224V – Multi-Output Controller

• 12VDC or 24VDC outputs
• 12VDC @ 4 amp supply current or 24VDC @ 3 amp supply current
• Class 2 Rated power limited outputs
• Power supply input options
  1. One (1) common power input for ACM8/
     ACM8CB and lock power (factory installed)
  2. Two (2) isolated power inputs – One (1) to power
     the ACM8/ACM8CB and one (1) for lock
     accessory power, (external power supply
     is required). (Current is determined by the
     power supply connected, not to exceed a
     maximum of 10 amp total)
• Eight (8) Access Control System trigger inputs.
  Input options:
  1. Eight (8) normally open (NO) inputs
  2. Eight (8) open collector inputs
  3. Any combination of the above
• Eight (8) independently controlled outputs.Output options
  1. Eight (8) Fail-Safe and/or Fail-Secure power outputs
  2. Eight (8) form “C” 5 amp rated relay outputs
  3. Any combination of the above
• Eight (8) auxiliary power outputs (unswitched)
• Fuses are rated with an output @ 3.5 amp
• ACM8 board main fuse is rated at 10 amp
• Input 115VAC 60Hz rated @ 1.9 amp
• Filtered and electronically regulated outputs
  (built-in power supply)
• Red LEDs indicate outputs are triggered
  (relays energized).
• Fire Alarm disconnect (latching or non-latching) is
  individually selectable for any or all of the
  eight (8) outputs.
  Fire Alarm disconnect input options:
  1. Normally open (NO) or normally closed (NC)
     dry contact input
  2. Polarity reversal input from FACP
     signaling circuit
• Alarm output relay indicates that FACP input
  is triggered (form “C” contact rated @ 1 amp 28VDC
  not evaluated by UL)
• Green LED indicates when FACP disconnect
  is triggered
• Built-in charger for sealed lead acid or gel type batteries

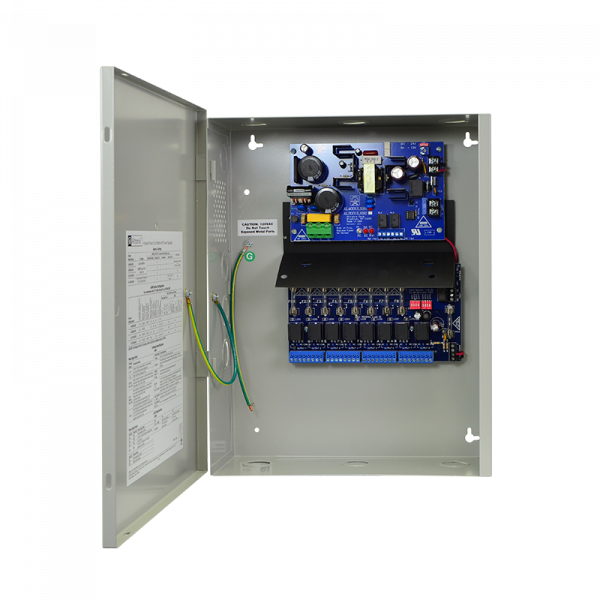

• AL400ULXB (Power Supply Board)
  maximum charge current 0.7 amp
• Automatic switch over to stand-by battery
  when AC fails
• AC input and DC output LED indicators
• Zero voltage drop when unit switches over to battery
  backup (AC failure condition)
• Short circuit and thermal overload protection
• AC fail supervision (form “C” contact)
• Enclosure accommodates up to two (2) 12AH batteries.
• Product weight : 10.7 lbs
• Shipping weight: 12 lbs
