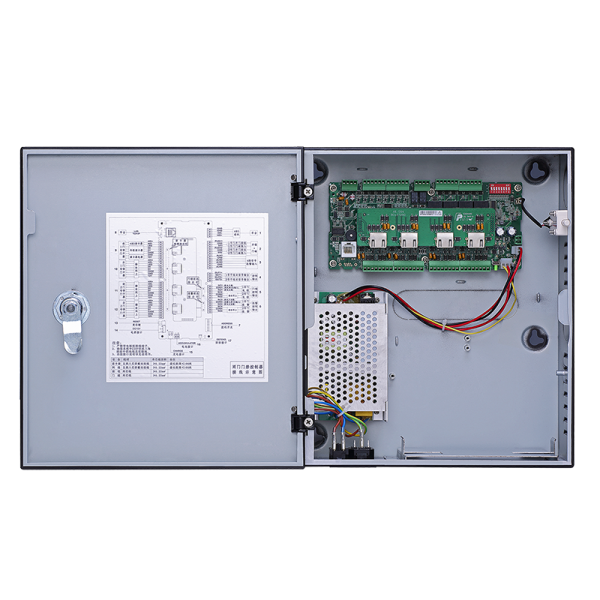

CAS-4SA – 4 Door Stand Alone Access Control Panel

4 Door Stand Alone
Access Control Panel

Login to view price
    SKU: CAS-4SA
    CATEGORIES: Access Control
    System
    Main Processor 32Bit
    Memory 16M
    Input / Output Ports
    Input 9 – 4 x Door Lock / 4 x Door Sensor / 4 x Exit Buttons / 1 x Alarm
    Output 5 – 4 x Door Lock / 1 x Alarm
    Reader 4
    Capacity
    Card Holders / Events 100,000 / 150,000
    Function
    Access Control Anti-Pass Back, Multi-Interlock, Multi-Card Unlock
    User Management General, VIP, Guest, Patrol, Black List, Duress
    Alarms Door Time Out, Intrusion, Duress, Tamper
    Periods 128 groups of Schedule, Period, and Holiday
    Interface
    To PC RJ45 (10/100M)
    To Reader Wiegand / RS485
    General Specifications
    RTC Yes
    Power Supply 9-15DC/500mA
    Working Environment -22°F ~ 140°F
    Working Humidity ≤95%
    Dimensions 11″ x 4.5″ x 12.6″
    Weight Approximately 4.4 lbs
    • Support 100,000 valid cards & 150,000 records
    • Support multiple cards
    • Support card, password, fingerprint and combination
    • TCP/IP interface
    • Wiegand or RS-485 interface to readers (4 doors)
    • Door close time out alarm, intrusion alarm, duress alarm and tamper alarm
    • Anti-passback, multi-door interlock, multi-card open
    • Support 128 efficient time and holiday schedules
    • Watch dog function ensure device free from halting
    • Surface mounted installation
    • Accumulator battery extension
